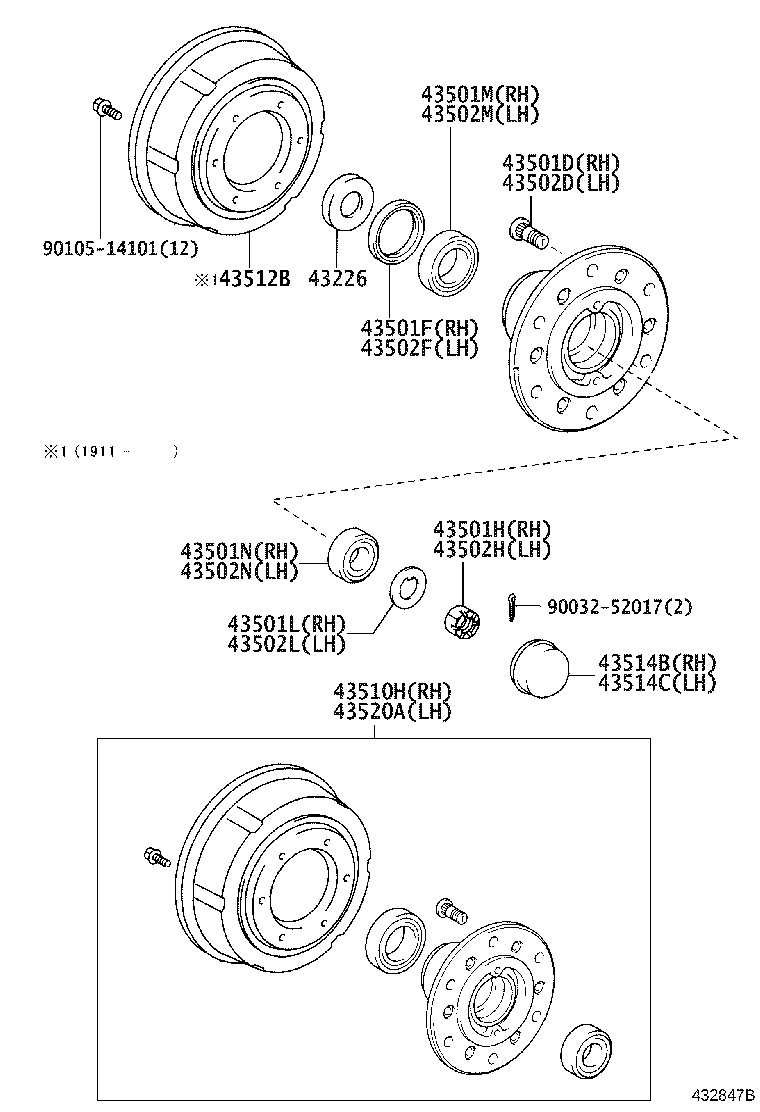

WU720L-TKFTLV3 (2011)
Toyota Dyna
(1107- )XZU710,720,730
DISC(115.7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-36010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90033-19009 |
WU710,720..6F |
1 | ||
| 90033-19009 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90033-19009 |
WU710,720..6F TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
WU710,720..6F TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90171-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90171-33001 |
WU710,720..6F |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
WU710,720..6F |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-50001 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90033-66032 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90033-19009 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90033-19009 |
WU710,720..6F |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90033-19009 |
WU710,720..6F |
1 | ||
| 90033-19009 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90171-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
WU710,720..6F |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90214-33001 |
WU710,720..6F |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-50001 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90033-66032 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39295 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43510-39295 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 43510-39485 |
XZU710,720..6F..GCC |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37121 |
XZU710,720..85T;XZU720..75T..CBU |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37040 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37040 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37030 |
XZU710,720..85T;XZU720..75T..CBU |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39275 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 43520-39275 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43520-39465 |
XZU710,720..6F..GCC |
1 | ||
| Common parts | ||||
| 90032-52017 | ||||
| 90105-14101 | ||||
(1107- )WU710..GEN ; (1107- )WU710..85T ;(1107- )WU720,XZU710,720
DRUM(320-100)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-36010 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90033-19009 |
WU710,720..6F |
1 | ||
| 90033-19009 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 90033-19009 |
WU710,720..6F TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
WU710,720..6F TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90171-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90171-33001 |
WU710,720..6F |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
WU710,720..6F |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-50001 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90033-66032 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90033-19009 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90033-19009 |
WU710,720..6F |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90033-19009 |
WU710,720..6F |
1 | ||
| 90033-19009 |
XZU710,720..85T;XZU720..75T..CBU |
1 | ||
| 90033-19009 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90033-19009 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90171-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90171-33001 |
WU710,720..6F |
1 | ||
| 90171-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
WU720..6F;WU710..85T..IV3 |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 90214-33001 |
WU710,720..6F |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT |
1 | ||
| 90214-33001 |
XZU710,720..6F..GCC ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-50001 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90033-66032 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39295 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43510-39295 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 43510-39485 |
XZU710,720..6F..GCC |
1 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-37130 |
WU720;WU710..GEN;WU710..85T |
2 | ||
| 43512-37130 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37040 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37040 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39275 |
XZU710,720..6F..GCC FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT |
1 | ||
| 43520-39275 |
WU720;WU710..GEN;WU710..85T |
1 | ||
| 43520-39465 |
XZU710,720..6F..GCC |
1 | ||
| Common parts | ||||
| 90032-52017 | ||||
| 90105-14101 | ||||
