WU720L-TKFTLV3 (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )N04C..XZU720..6F ; (1107- )N04C..XZU710..GCC ; (1107- )N04C,W04D..

Click highlighted areas on diagram

SHORT TAIL PIPE

diagram 17410 17410 17420 17451 17451 17455 17567 17567 17567A 17567A 17569 17569A 17571 17571 17572B 17573A 17578 17578E 17578E 4711 9003119159 9003119159 9011908B95 9017910070 9017910070 9155180825 9155281035 9167281035 9167281035 9167281035 9418560800 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78330

W04D..WU710,720..LHD..(75T,85T)

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78330

W04D..WU710,720..LHD..(75T,85T)

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78860

N04C..XZU710,720..MTM..GCC;W04D..WU710,720..LHD..(75T,85T)

 1
17403-78840

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17451 - GASKET, EXHAUST PIPE
17451-E0110

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17451 - GASKET, EXHAUST PIPE
17451-E0110

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17455 - BRACKET, EXHAUST PIPE
17455-78070

N04C..XZU710,720..MTM..GCC;W04D..WU710,720..LHD..(75T,85T)

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17569 - PLATE, EXHAUST PIPE SUPPORT
16721-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17569A - PLATE, EXHAUST PIPE SUPPORT
16721-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0230

W04D..WU700,710,720

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0230

W04D..WU700,710,720

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78072

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78082

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17578 - CLAMP, PIPE
17578-78010

N04C..XZU710,720..MTM..GCC;W04D..WU710,720..LHD..(75T,85T)

 1
17578-78040

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17578-78030

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
Common parts
90031-19159
90119-08B95
90179-10070
91551-80825
91552-81035
91672-81035
94185-60800
Linked diagrams
4711

(1107- )N04C..XZU710..GCC ; (1107- )N04C,W04D..WU710,720,XZU720..6F..GCC

Click highlighted areas on diagram

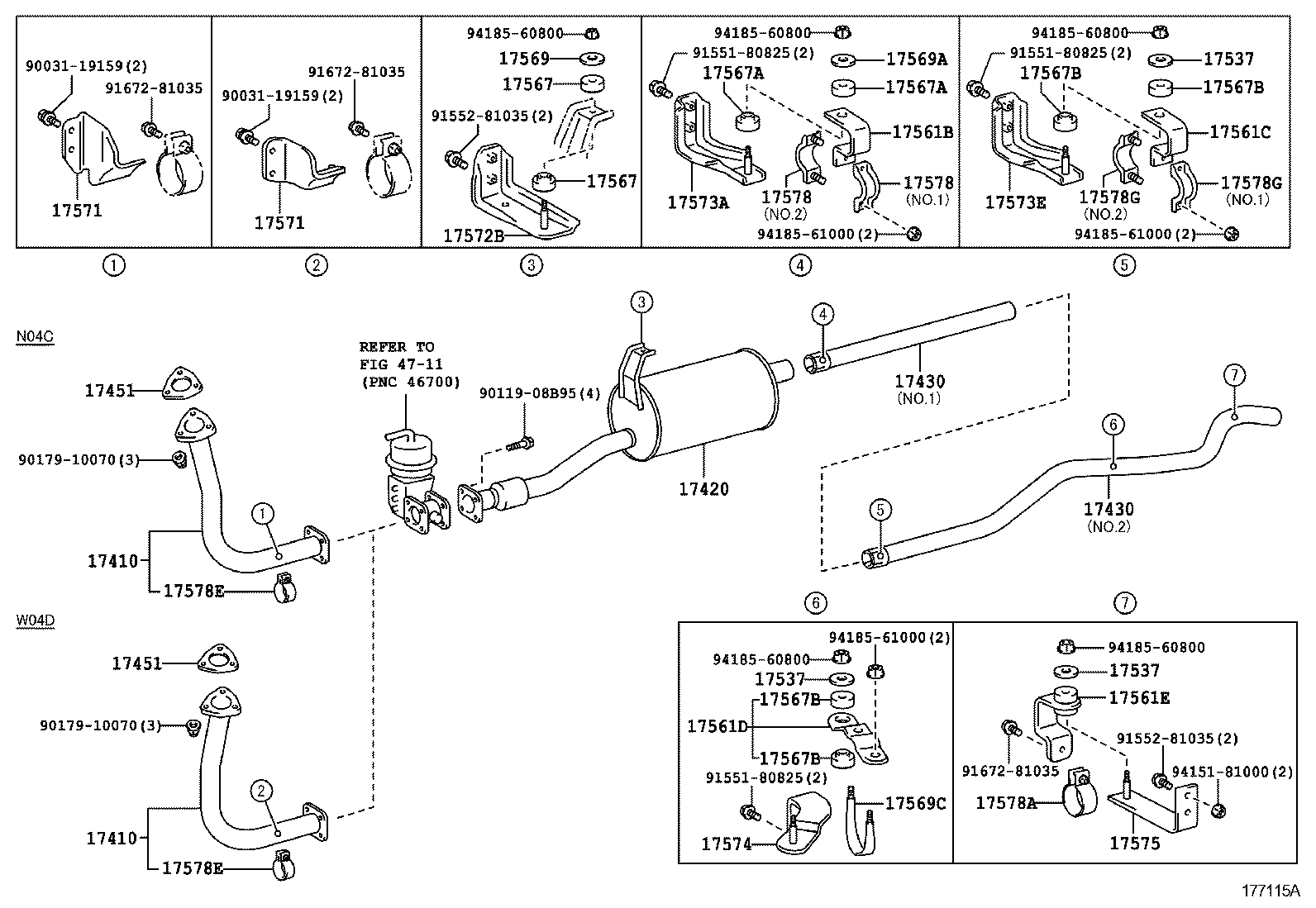

REAR OUT TAIL PIPE

diagram 17410 17410 17420 17430 17430 17451 17451 17537 17537 17537 17561B 17561C 17561D 17561E 17567 17567 17567A 17567A 17567B 17567B 17567B 17567B 17569 17569A 17569C 17571 17571 17572B 17573A 17573E 17574 17575 17578 17578 17578A 17578E 17578E 17578G 17578G 4711 9003119159 9003119159 9011908B95 9017910070 9017910070 9155180825 9155180825 9155180825 9155281035 9155281035 9167281035 9167281035 9167281035 9415181000 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78330

W04D..WU710,720..LHD..(75T,85T)

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78330

W04D..WU710,720..LHD..(75T,85T)

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78860

N04C..XZU710,720..MTM..GCC;W04D..WU710,720..LHD..(75T,85T)

 1
17403-78840

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78240

N04C,W04D..WU720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
17405-78C81

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78240

N04C,W04D..WU720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
17405-78C81

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17451 - GASKET, EXHAUST PIPE
17451-E0110

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17451 - GASKET, EXHAUST PIPE
17451-E0110

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17537 - PLATE, EXHAUST PIPE
16721-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 3
17537 - PLATE, EXHAUST PIPE
16721-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 3
17537 - PLATE, EXHAUST PIPE
16721-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78030

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17561E - SUPPORT, EXHAUST PIPE, NO.1
17561-78080

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 4
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 4
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 4
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 4
17569 - PLATE, EXHAUST PIPE SUPPORT
16721-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17569A - PLATE, EXHAUST PIPE SUPPORT
16721-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17569C - BOLT, EXHAUST PIPE SUPPORT
17569-78010

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0230

W04D..WU700,710,720

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0230

W04D..WU700,710,720

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78072

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78082

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78082

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-78110

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78120

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17578 - CLAMP, PIPE
17578-78010

N04C..XZU710,720..MTM..GCC;W04D..WU710,720..LHD..(75T,85T)

 1
17578-78040

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17578-78030

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
17578 - CLAMP, PIPE
17578-78010

N04C..XZU710,720..MTM..GCC;W04D..WU710,720..LHD..(75T,85T)

 1
17578-78040

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17578-78030

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
17578A - CLAMP, MUFFLER
17578-78020

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

W04D..WU700,710,720;N04C..XZU710,720..MTM..GCC

 1
17578G - CLAMP, PIPE(FOR TAIL PIPE)
17578-78040

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17578-78030

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
17578G - CLAMP, PIPE(FOR TAIL PIPE)
17578-78040

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.2

 1
17578-78030

N04C..XZU710..MTM..GCC;N04C,W04D..WU710,720,XZU720..6F..GCC

EXHAUST TAIL PIPE & DIFFUSER-REAR OUT,NO.1

 1
Common parts
90031-19159
90119-08B95
90179-10070
91551-80825
91552-81035
91672-81035
94151-81000
94185-60800
94185-61000
Linked diagrams
4711
