WU720L-TKFTLV (2011)
Toyota Dyna

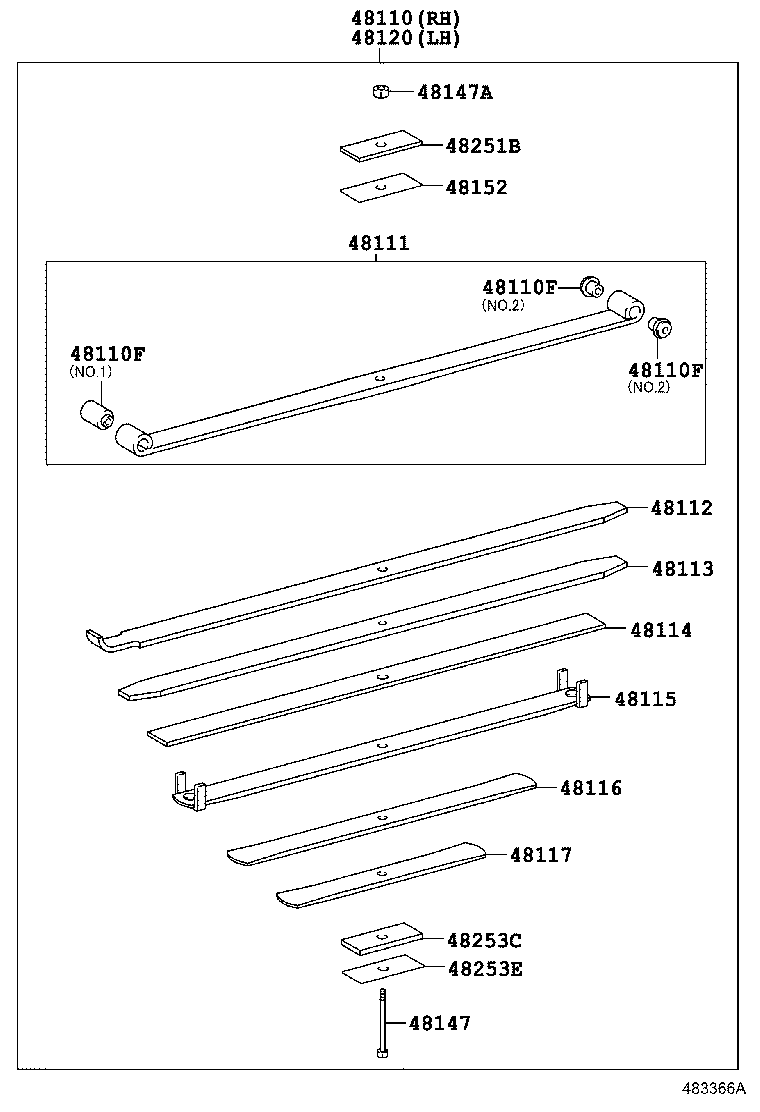

ILLUST NO. 2 OF 2(1107- )6F..GCC
7-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37P70 |
WU710,720,XZU710,720..85T 7-LEAF,PASSENGER SIDE |
1 | ||
| 48110-37R50 |
WU710,720,XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT ONLY),PASSENGER SIDE |
1 | ||
| 48110-37R50 |
XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT & REAR),PASSENGER SIDE |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.2 |
4 | ||
| 90389-16029 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.2 |
4 | ||
| 90389-16029 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.2 |
4 | ||
| 90389-16029 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48101-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48112-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48113-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48114-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48102-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48102-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48116-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48117-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37P60 |
WU710,720,XZU710,720..85T 7-LEAF,DRIVER SIDE |
1 | ||
| 48110-37R40 |
WU710,720,XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT ONLY),DRIVER SIDE |
1 | ||
| 48110-37R40 |
XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT & REAR),DRIVER SIDE |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37P60 |
WU710,720,XZU710,720..85T |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-37P20 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48152-0W110 |
WU700,710,720,XZU710,720..MTM..GCC |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37D10 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48118-37P40 |
WU710,720,XZU710,720..6F..GCC |
2 | ||

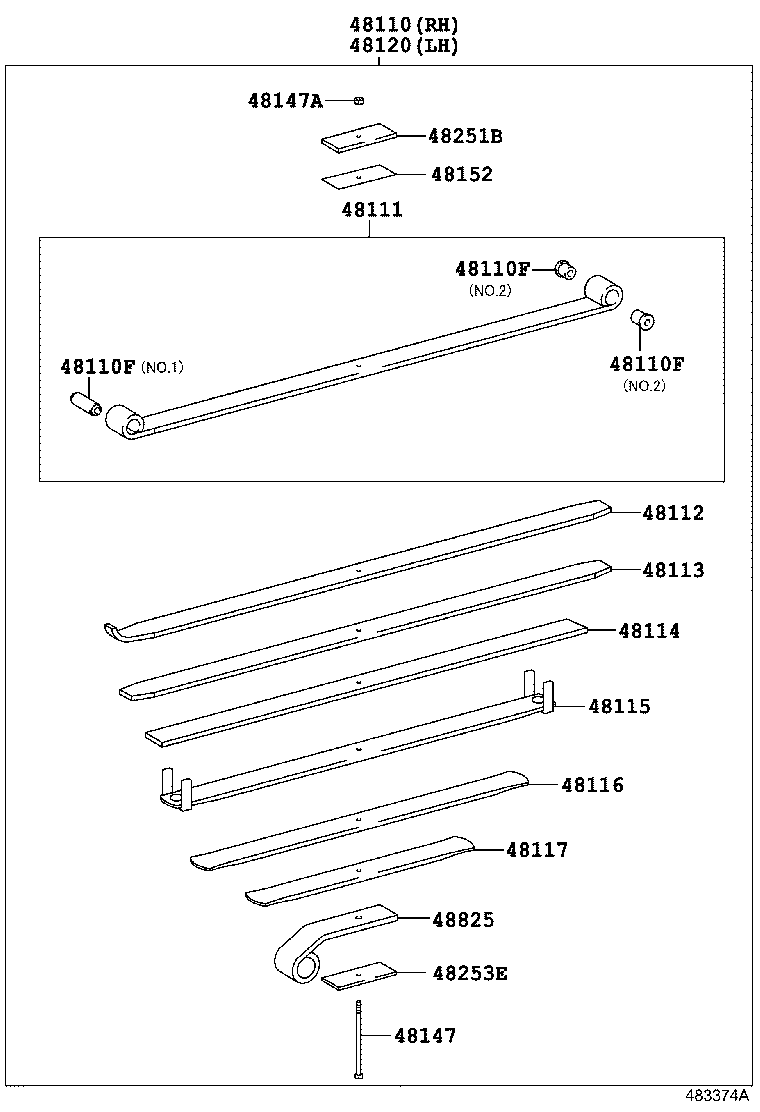

ILLUST NO. 2 OF 2(1107- )6F..GCC
7-LEAF,W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37P70 |
WU710,720,XZU710,720..85T 7-LEAF,PASSENGER SIDE |
1 | ||
| 48110-37R50 |
WU710,720,XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT ONLY),PASSENGER SIDE |
1 | ||
| 48110-37R50 |
XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT & REAR),PASSENGER SIDE |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.2 |
4 | ||
| 90389-16029 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.2 |
4 | ||
| 90389-16029 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.2 |
4 | ||
| 90389-16029 |
WU720..GCC;WU710,XZU710,720..6F..GCC NO.1 |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48101-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48112-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48113-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48114-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48102-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48102-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48116-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-37P70 |
WU710,720,XZU710,720..85T PASSENGER SIDE |
1 | ||
| 48117-37P60 |
WU710,720,XZU710,720..85T DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37P60 |
WU710,720,XZU710,720..85T 7-LEAF,DRIVER SIDE |
1 | ||
| 48110-37R40 |
WU710,720,XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT ONLY),DRIVER SIDE |
1 | ||
| 48110-37R40 |
XZU710,720..85T 7-LEAF,STABILIZER-WITH(FRONT & REAR),DRIVER SIDE |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37P60 |
WU710,720,XZU710,720..85T |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-37P20 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48152-0W110 |
WU700,710,720,XZU710,720..MTM..GCC |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48118-37P40 |
WU710,720,XZU710,720..6F..GCC |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48825-37020 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||

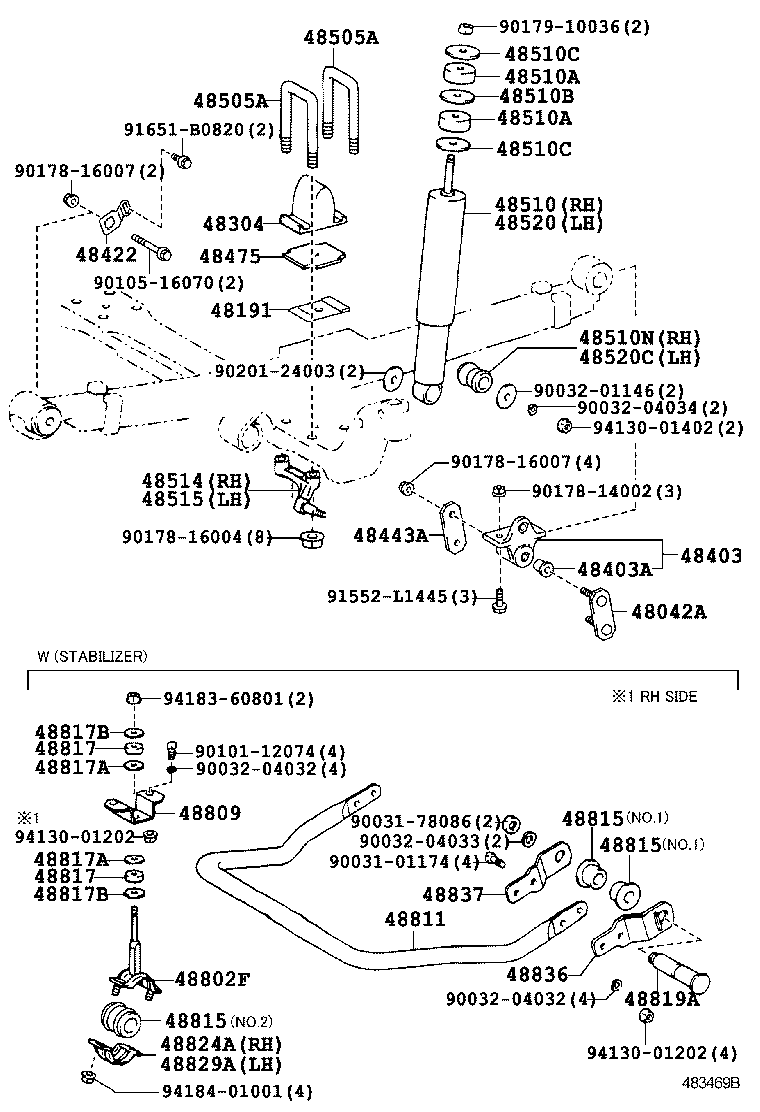

ILLUST NO. 1 OF 2(1107- )WU710,XZU720,730..6F ; (1107- )WU720,XZU710..EUR,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37070 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37110 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
2 | ||
| 48403 - BRACKET SUB-ASSY, SPRING, NO.2 | ||||
| 48403-37041 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48403A - BUSH(FOR SPRING BRACKET) | ||||
| 90389-16024 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
4 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48443A - PLATE, FORNT SPRING SHACKLE, OUTER | ||||
| 48443-37030 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-37060 |
WU720;WU710..GEN;WU710,XZU710,720..6F..GCC |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=150 |
2 | ||
| 90117-16065 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=150,STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 90117-16065 |
XZU710,720..85T;WU710..65T..GEN L=150,STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 90117-16075 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=170,STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 90117-16075 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=170 |
2 | ||
| 90117-16075 |
XZU710,720..85T;WU710..65T..GEN L=170,STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=150 |
2 | ||
| 90117-16065 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=150,STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 90117-16065 |
XZU710,720..85T;WU710..65T..GEN L=150,STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 90117-16075 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=170,STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 90117-16075 |
WU710..65T..GEN;WU710,XZU710..85T;WU720,XZU720..65T,85T L=170 |
2 | ||
| 90117-16075 |
XZU710,720..85T;WU710..65T..GEN L=170,STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80130 |
WU700,710,720;XZU710,720..MTM..GCC MARK 48511-37290 |
1 | ||
| 48511-80184 |
WU710,720,XZU710,720..MTM..GCC MARK-37410 OR -37290 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
WU700,710,720;XZU710,720..MTM..GCC |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
WU700,710,720;XZU710,720..MTM..GCC |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
WU700,710,720;XZU710,720..MTM..GCC |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
WU700,710,720;XZU710,720..MTM..GCC |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80184 |
WU710,720,XZU710,720..MTM..GCC MARK-37410 OR -37290 |
1 | ||
| 48511-80130 |
WU700,710,720;XZU710,720..MTM..GCC MARK 48511-37290 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37040 |
WU700,710,720,XZU710,720 STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48802-37041 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
2 | ||
| 48802-37040 |
XZU710,720;WU710,720..GEN STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48802-37041 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
2 | ||
| 48802-37041 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48802-37041 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48809 - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37021 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48809-37021 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48809-37021 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
2 | ||
| 48809-37021 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-37070 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48811-37070 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
1 | ||
| 48811-37070 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
1 | ||
| 48811-37070 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY),NO.2 |
2 | ||
| 48815-37030 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY),NO.1 |
4 | ||
| 48815-37030 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR),NO.1 |
4 | ||
| 48815-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT,NO.1 |
4 | ||
| 48815-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT,NO.1 |
4 | ||
| 48815-37080 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR),NO.2 |
2 | ||
| 48815-37080 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT,NO.2 |
2 | ||
| 48815-37080 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT,NO.2 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY),NO.2 |
2 | ||
| 48815-37030 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY),NO.1 |
4 | ||
| 48815-37030 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR),NO.1 |
4 | ||
| 48815-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT,NO.1 |
4 | ||
| 48815-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT,NO.1 |
4 | ||
| 48815-37080 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR),NO.2 |
2 | ||
| 48815-37080 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT,NO.2 |
2 | ||
| 48815-37080 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT,NO.2 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY),NO.2 |
2 | ||
| 48815-37030 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY),NO.1 |
4 | ||
| 48815-37030 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR),NO.1 |
4 | ||
| 48815-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT,NO.1 |
4 | ||
| 48815-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT,NO.1 |
4 | ||
| 48815-37080 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR),NO.2 |
2 | ||
| 48815-37080 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT,NO.2 |
2 | ||
| 48815-37080 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT,NO.2 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
4 | ||
| 48817-36011 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
4 | ||
| 48817-36011 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
4 | ||
| 48817-36011 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
4 | ||
| 48817-36011 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
4 | ||
| 48817-36011 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
4 | ||
| 48817-36011 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
4 | ||
| 90948-02015 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
4 | ||
| 90948-02015 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
4 | ||
| 90948-02015 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
4 | ||
| 90948-02015 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
4 | ||
| 90948-02015 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
4 | ||
| 90948-02015 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
4 | ||
| 90948-02167 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
4 | ||
| 90948-02167 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
4 | ||
| 90948-02167 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
4 | ||
| 90948-02167 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
4 | ||
| 90948-02167 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
4 | ||
| 90948-02167 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-37010 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48819-37010 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
2 | ||
| 48819-37010 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48819-37010 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-37060 |
XZU710,720;WU710,720..GEN STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48824-37060 |
WU700,710,720,XZU710,720 STABILIZER-WITH(FRONT ONLY) |
1 | ||
| 48824-37061 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
1 | ||
| 48824-37061 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
1 | ||
| 48824-37061 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48824-37061 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-37060 |
WU700,710,720,XZU710,720 STABILIZER-WITH(FRONT ONLY) |
1 | ||
| 48824-37060 |
XZU710,720;WU710,720..GEN STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48824-37061 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
1 | ||
| 48824-37061 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48824-37061 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
1 | ||
| 48824-37061 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
1 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-37050 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48836-37050 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48836-37050 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
2 | ||
| 48836-37050 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
2 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-37030 |
WU700,710,720;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY) |
2 | ||
| 48837-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR)&ABS-WITHOUT |
2 | ||
| 48837-37030 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48837-37030 |
XZU710,720..MTM..GCC STABILIZER-WITH(FRONT ONLY)&ABS-WITHOUT |
2 | ||
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90101-12074 | ||||
| 90105-16070 | ||||
| 90178-14002 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 91552-L1445 | ||||
| 91651-B0820 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
