WU720L-TKFRLV3 (2011)
Toyota Dyna

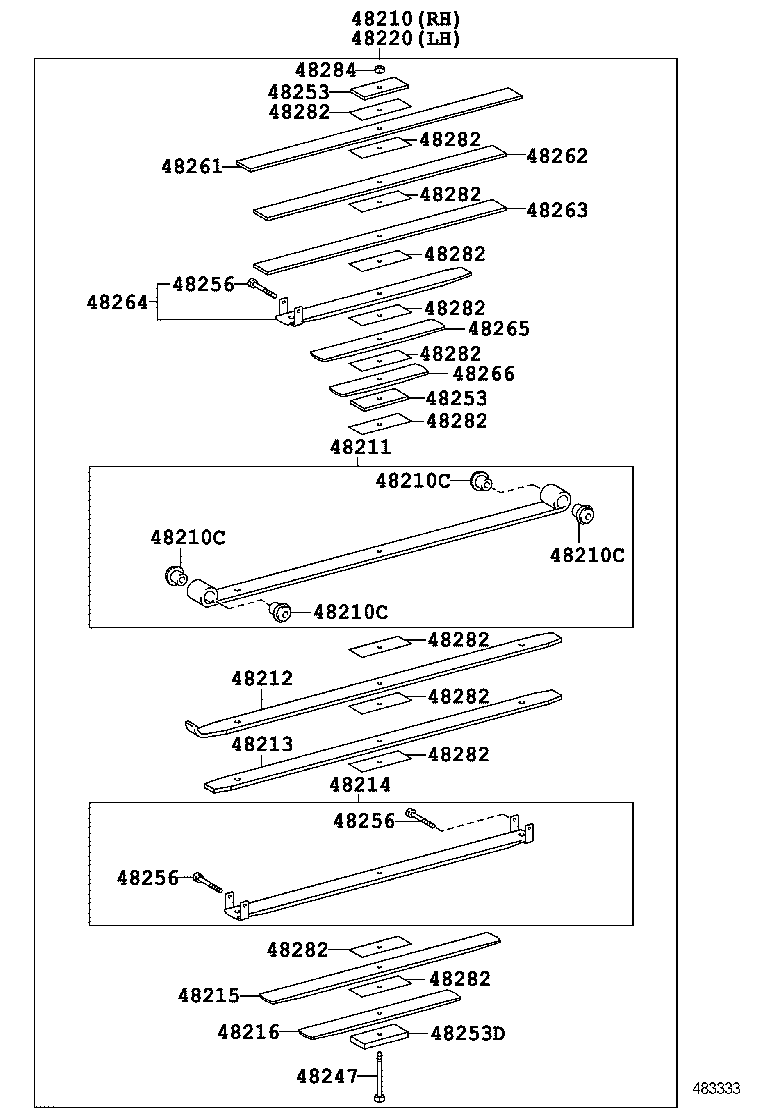

ILLUST NO. 2 OF 2(1107- )75T..GCC
MAIN 6+HELPER 6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48201-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48212-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48213-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48205-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48215-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48216-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37M20 |
WU720,XZU720..75T..GCC |
2 | ||
| 48247-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48216-37B60 |
WU710,720,XZU710,720..6F..GCC |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48261-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48263-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48207-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
WU720;WU710..75T,85T;XZU710,720..6F..GCC |
2 | ||

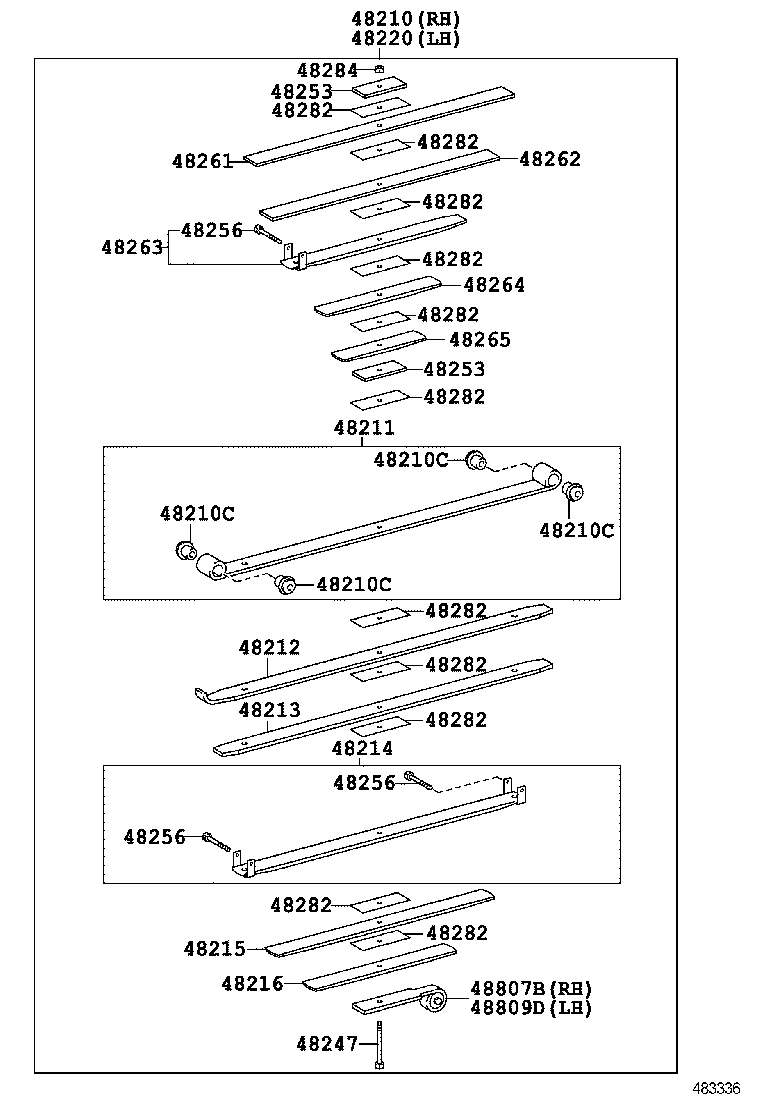

ILLUST NO. 2 OF 2(1211- )XZU710,720..6F..GCC
MAIN 6+HELPER 6-LEAF,W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48201-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48212-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48213-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48205-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48215-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48216-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37M20 |
WU720,XZU720..75T..GCC |
2 | ||
| 48247-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48261-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48263-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48207-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
WU720;WU710..75T,85T;XZU710,720..6F..GCC |
2 | ||
| 48807B - BRACKET SUB-ASSY, STABILIZER, RH | ||||
| 48809-37070 |
WU710,720..GEN;XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48809D - BRACKET SUB-ASSY, STABILIZER, LH | ||||
| 48807-37010 |
WU710,720..GEN;XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||

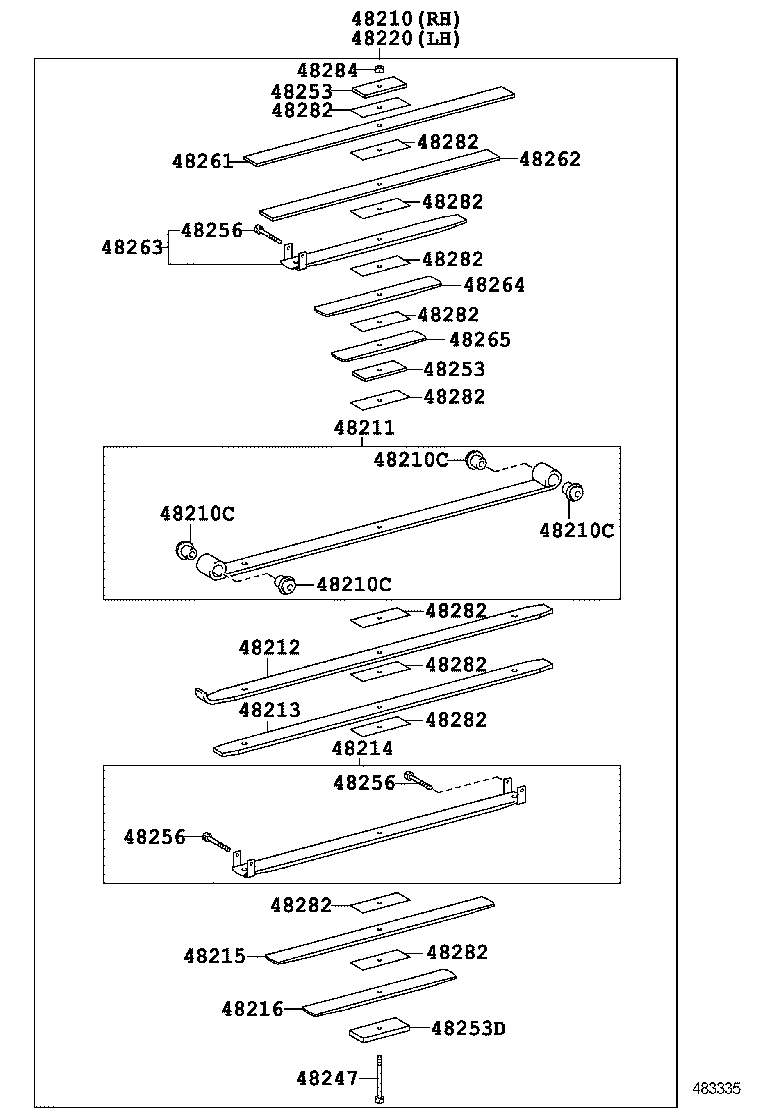

ILLUST NO. 2 OF 2(1107- )WU720,XZU710,720..65T,75T..GCC
MAIN 6+HELPER 5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48201-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48212-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48213-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48205-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48215-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48216-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37M20 |
WU720,XZU720..75T..GCC |
2 | ||
| 48247-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48216-37B60 |
WU710,720,XZU710,720..6F..GCC |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48261-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48263-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48207-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
WU720;WU710..75T,85T;XZU710,720..6F..GCC |
2 | ||
ILLUST NO. 2 OF 2(1107- )XZU710,720..65T,75T..GCC
MAIN 6+HELPER 5-LEAF,W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48201-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48212-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48213-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48205-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48215-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48216-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37M20 |
WU720,XZU720..75T..GCC |
2 | ||
| 48247-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48261-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48263-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48207-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
WU720;WU710..75T,85T;XZU710,720..6F..GCC |
2 | ||
| 48807B - BRACKET SUB-ASSY, STABILIZER, RH | ||||
| 48809-37070 |
WU710,720..GEN;XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48809D - BRACKET SUB-ASSY, STABILIZER, LH | ||||
| 48807-37010 |
WU710,720..GEN;XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||

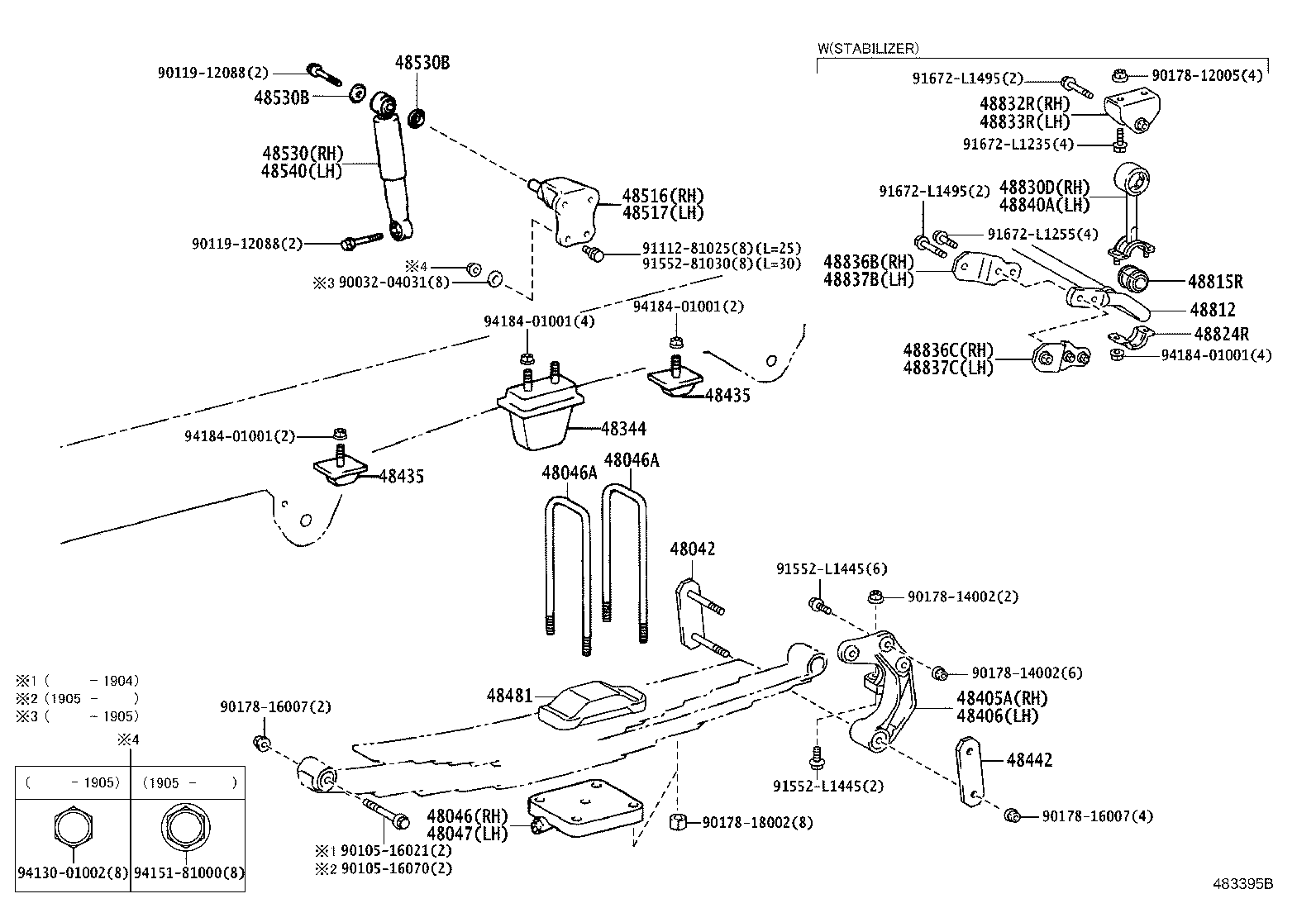

ILLUST NO. 1 OF 2(1107- )WU710,XZU720,730..6F ; (1107- )WU720,XZU710..EUR,GCC
SHAKLE BUSH = TENSION RUBBER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37060 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18022 |
WU720,XZU720..75T..GCC L=410,REAR SUSPENSION-MULTI LEAF REIN TENSION |
4 | ||
| 90117-18020 |
WU720,XZU720..75T..GCC;WU700,710,XZU710..5F..65T L=390 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18022 |
WU720,XZU720..75T..GCC L=410,REAR SUSPENSION-MULTI LEAF REIN TENSION |
4 | ||
| 90117-18020 |
WU720,XZU720..75T..GCC;WU700,710,XZU710..5F..65T L=390 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37220 |
WU720,XZU720..75T..GCC |
2 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-37010 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-37010 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37030 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-37080 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
WU700,710,720..65T,75T;XZU710,720..MTM..(65T,75T)..GCC |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37200 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) MARK 48531-37200 |
1 | ||
| 48531-37202 |
WU710,720;XZU710,720..MTM..GCC MARK 48531-37202 |
1 | ||
| 48531-37201 |
WU710,720,XZU710,720..MTM..(GCC,GEN) MARK 48531-37201 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
WU700,710,720;XZU710,720..MTM..GCC |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
WU700,710,720;XZU710,720..MTM..GCC |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37200 |
WU700,710,720,XZU710,720..MTM..(GCC,GEN) MARK 48531-37200 |
1 | ||
| 48531-37202 |
WU710,720;XZU710,720..MTM..GCC MARK 48531-37202 |
1 | ||
| 48531-37201 |
WU710,720,XZU710,720..MTM..(GCC,GEN) MARK 48531-37201 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-37080 |
XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-37090 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-37060 |
XZU710,720;WU710,720..GEN STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48824-37061 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-37031 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48830-37030 |
XZU710,720;WU710,720..GEN STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-37040 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48832-37040 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48836B - BRACKET, REAR STABILIZER END, INNER RH | ||||
| 48836-37060 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48836C - BRACKET, REAR STABILIZER END, OUTER RH | ||||
| 48809-37060 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48837B - BRACKET, REAR STABILIZER END, INNER LH | ||||
| 48836-37060 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48837C - BRACKET, REAR STABILIZER END, OUTER LH | ||||
| 48809-37060 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-37030 |
XZU710,720;WU710,720..GEN STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48830-37031 |
WU710,720..GEN;XZU710,720..MTM..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| Common parts | ||||
| 90032-04031 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-12005 | ||||
| 90178-14002 | ||||
| 90178-16007 | ||||
| 90178-18002 | ||||
| 91112-81025 | ||||
| 91552-81030 | ||||
| 91552-L1445 | ||||
| 91672-L1235 | ||||
| 91672-L1255 | ||||
| 91672-L1495 | ||||
| 94130-01002 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
