WU720L-TKFRLV3 (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..WU710,720..LHD..75T,85T

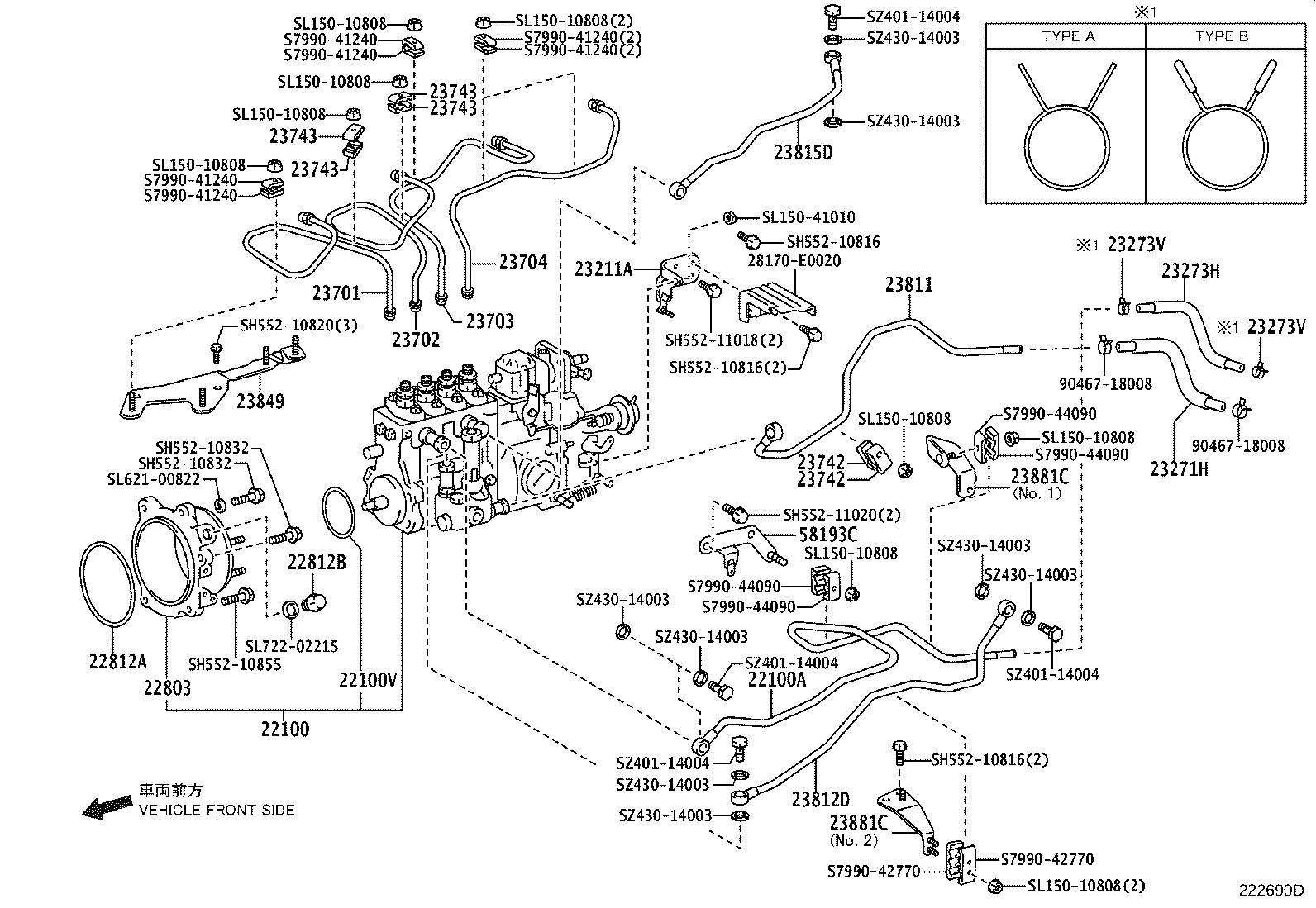

Click highlighted areas on diagram

diagram 22100 22100A 22100V 22803 22812A 22812B 23211A 23271H 23273H 23273V 23273V 23701 23702 23703 23704 23742 23742 23743 23743 23743 23743 23811 23812D 23815D 23849 23881C 23881C 28170E0020 58193C 9046718008 9046718008 S799041240 S799041240 S799041240 S799041240 S799041240 S799041240 S799042770 S799042770 S799044090 S799044090 S799044090 S799044090 SH55210816 SH55210816 SH55210816 SH55210820 SH55210832 SH55210832 SH55210855 SH55211018 SH55211020 SL15010808 SL15010808 SL15010808 SL15010808 SL15010808 SL15010808 SL15010808 SL15010808 SL15010808 SL15041010 SL62100822 SL72202215 SZ40114004 SZ40114004 SZ40114004 SZ40114004 SZ43014003 SZ43014003 SZ43014003 SZ43014003 SZ43014003 SZ43014003 SZ43014003 SZ43014003
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-E0081

W04D..WU710,720..6F

HIGH ALTITUDE COMPENSATOR-WITH

 1
22010-E0061

W04D..WU710,720..LHD..(75T,85T)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23816-E0060

W04D..WU710,720..LHD..(75T,85T)

 1
22100V - RING, O(FOR INJECTION PUMP)
S2281-72350

W04D..WU710,720..LHD..(75T,85T)

 1
22803 - COVER SUB-ASSY, FUEL INJECTION PUMP
22650-E0030

W04D..WU710,720..6F

HIGH ALTITUDE COMPENSATOR-WITH

 1
22650-E0030

W04D..WU710,720..LHD..(75T,85T)

 1
22812A - RING, O
SZ301-01052

W04D..WU710,720..LHD..(75T,85T)

 1
22812B - PLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER
SZ341-22008

W04D..WU700,710,720

 1
23211A - BRACKET(FOR INJECTION PIPE NO.3)
S2204-41600

W04D..WU710,720..LHD..(75T,85T)

 1
23271H - HOSE, FUEL, NO.1
23271-78630

W04D..WU700,710,720

 1
23273H - HOSE, FUEL, NO.2
23273-78610

W04D..WU700,710,720

 1
23273V - CLIP(FOR FUEL HOSE NO.2)
96132-51300

W04D..WU710,720

TYPE A

 2
96132-51300

W04D..WU700,710,720

 2
96133-41301

W04D..WU710,720

TYPE B

 2
23273V - CLIP(FOR FUEL HOSE NO.2)
96132-51300

W04D..WU710,720

TYPE A

 2
96132-51300

W04D..WU700,710,720

 2
96133-41301

W04D..WU710,720

TYPE B

 2
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-E0020

W04D..WU710,720..LHD..(75T,85T)

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-E0020

W04D..WU710,720..LHD..(75T,85T)

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-E0020

W04D..WU710,720..LHD..(75T,85T)

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-E0020

W04D..WU710,720..LHD..(75T,85T)

 1
23742 - CLAMP, INJECTION PIPE, NO.2
S7990-42680

W04D..WU710,720..LHD..(75T,85T)

 2
23742 - CLAMP, INJECTION PIPE, NO.2
S7990-42680

W04D..WU710,720..LHD..(75T,85T)

 2
23743 - CLAMP, INJECTION PIPE, NO.3
S7990-41250

W04D..WU710,720..LHD..(75T,85T)

 4
23743 - CLAMP, INJECTION PIPE, NO.3
S7990-41250

W04D..WU710,720..LHD..(75T,85T)

 4
23743 - CLAMP, INJECTION PIPE, NO.3
S7990-41250

W04D..WU710,720..LHD..(75T,85T)

 4
23743 - CLAMP, INJECTION PIPE, NO.3
S7990-41250

W04D..WU710,720..LHD..(75T,85T)

 4
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-E0080

W04D..WU710,720..LHD..(75T,85T)

 1
23812D - PIPE, FUEL, NO.2
23812-E0050

W04D..WU710,720..LHD..(75T,85T)

 1
23815D - PIPE, FUEL, NO.3
23815-E0030

W04D..WU710,720..LHD..(75T,85T)

 1
23849 - SUPPORT, FUEL
23849-E0052

W04D..WU710,720..LHD..(75T,85T)

 1
23881C - BRACKET, FUEL HOSE
23881-E0050

W04D..WU710,720..LHD..(75T,85T)

NO.2

 1
23881-E0030

W04D..WU710,720..LHD..(75T,85T)

NO.1

 1
23881C - BRACKET, FUEL HOSE
23881-E0050

W04D..WU710,720..LHD..(75T,85T)

NO.2

 1
23881-E0030

W04D..WU710,720..LHD..(75T,85T)

NO.1

 1
58193C - BRACKET, FUEL PIPE
23809-E0010

WU710,720..LHD..(75T,85T)

 1
Common parts
28170-E0020
90467-18008
S7990-41240
S7990-42770
S7990-44090
SH552-10816
SH552-10820
SH552-10832
SH552-10855
SH552-11018
SH552-11020
SL150-10808
SL150-41010
SL621-00822
SL722-02215
SZ401-14004
SZ430-14003
