WU720L-TKFRLV (2011)
Toyota Dyna
(1107- )WU720,XZU720..65T,75T..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65021 - BRACKET SUB-ASSY, MAIN SILL, LOWER | ||||
| 65021-37010 |
WU710,720,XZU710..CBU |
2 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VJ60 |
WU720..(65T,75T)..CBU |
1 | ||
| 65100-3VJ61 |
WU720,XZU720..(65T,75T)..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37K00 |
WU720,XZU720..(65T,75T)..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37J90 |
WU720,XZU720..(65T,75T)..CBU |
1 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
WU720,XZU720..CBU |
4 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
WU720,XZU720..CBU |
4 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
WU720,XZU720..CBU |
4 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37880 |
WU720,XZU720..CBU |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37820 |
WU720,XZU720..CBU |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37820 |
WU720,XZU720..CBU |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37820 |
WU720,XZU720..CBU |
4 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37820 |
WU720,XZU720..CBU |
4 | ||
| 65127C - SHIM, MAIN SILL, LOWER NO.3 | ||||
| 65127-37730 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 65127C - SHIM, MAIN SILL, LOWER NO.3 | ||||
| 65127-37730 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 65128C - SHIM, MAIN SILL, LOWER NO.4 | ||||
| 65128-37700 |
WU720,XZU720..CBU |
2 | ||
| 65128C - SHIM, MAIN SILL, LOWER NO.4 | ||||
| 65128-37700 |
WU720,XZU720..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37060 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37060 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37620 |
WU720,XZU720..(65T,75T)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37440 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37440 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65160-37620 |
WU710..85T..CBU;WU720,XZU720..(65T,75T)..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37851 |
WU710..85T..CBU;WU720,XZU720..CBU |
1 | ||
| 65180-37850 |
WU710,720,XZU710..CBU |
1 | ||
| 65180A - SILL ASSY, CROSS, NO.6 | ||||
| 65180-37861 |
WU720,XZU720..(65T,75T)..CBU |
1 | ||
| 65180-37860 |
WU710,720,XZU710..(65T,75T)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37290 |
WU710,720,XZU710,720..MTM..CBU |
1 | ||
| 65190-37410 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65170-37440 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65160-37620 |
WU710..85T..CBU;WU720,XZU720..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37J20 |
WU720..CBU |
1 | ||
| 65303-37J22 |
WU720,XZU720..CBU |
1 | ||
| 65303-37J21 |
WU720..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37G90 |
WU720..CBU |
1 | ||
| 65304-37G91 |
WU720..CBU |
1 | ||
| 65304-37G92 |
WU720,XZU720..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37830 |
WU710,720,XZU710..CBU |
1 | ||
| 65307-37A81 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 65307-37A80 |
WU710,720,XZU710..CBU |
1 | ||
| 65313C - SCREW(FOR FLOOR BOARD) | ||||
| 90149-50065 |
WU710..CBU;WU720,XZU710,720..MTM..(65T,75T)..GCC..CBU |
76 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
WU720,XZU720..CBU |
24 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37040 |
WU710,720,XZU710..CBU |
2 | ||
| 65349-37041 |
WU710,720,XZU710,720..MTM..CBU |
2 | ||
| 65349-37010 |
WU710,720,XZU710..CBU |
2 | ||
| 65349-37080 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU LH |
1 | ||
| 65349-37070 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU RH |
1 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
WU710,720,XZU710..(6F,6FC)..CBU EXHAUST TAIL PIPE & DIFFUSER-REAR OUT |
1 | ||
| 66242-37281 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..(75T,85T)..CBU |
1 | ||
| 66242-37280 |
WU710..(75T,85T)..CBU;WU720,XZU710..(6F,6FC)..CBU |
1 | ||
| 66242-37271 |
WU720,XZU710,720..MTM..GCC..CBU EXHAUST TAIL PIPE & DIFFUSER-REAR OUT |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37280 |
WU710,720,XZU710..CBU |
1 | ||
| 66242-37281 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37C30 |
WU710..(75T,85T)..CBU;WU720,XZU710..(6F,6FC)..CBU |
1 | ||
| 66241-37C31 |
WU710..(75T,85T)..CBU;WU720,XZU710..(6F,6FC)..CBU |
1 | ||
| 66241-37D10 |
WU710,720,XZU710..(6F,6FC)..CBU EXHAUST TAIL PIPE & DIFFUSER-REAR OUT |
1 | ||
| 66241-37D20 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..6F..CBU EXHAUST TAIL PIPE & DIFFUSER-REAR OUT |
1 | ||
| 66241-37C32 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..(75T,85T)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37C31 |
WU710,720,XZU710..(6F,6FC)..CBU EXHAUST TAIL PIPE & DIFFUSER-REAR OUT |
1 | ||
| 66241-37C32 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 66241-37C31 |
WU710..(75T,85T)..CBU;WU720,XZU710..(6F,6FC)..CBU |
1 | ||
| 66241-37C30 |
WU710..(75T,85T)..CBU;WU720,XZU710..(6F,6FC)..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
WU720,XZU720..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
8 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
8 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
4 | ||
| 66321-92805 |
WU710,720,XZU710..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
WU710,720,XZU710..CBU |
2 | ||
| 66321-92805 |
WU710,720,XZU710..CBU |
2 | ||
| 66321-37030 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
WU710,720,XZU710..CBU |
2 | ||
| 66321-92805 |
WU710,720,XZU710..CBU |
2 | ||
| 66321-37030 |
XZU710..5F..GCC..CBU;WU710,720,XZU720..CBU |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37070 |
WU710,720,XZU710,720..MTM..GCC..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75139-37070 |
WU710,720,XZU710,720..MTM..GCC..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90179-10036 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||

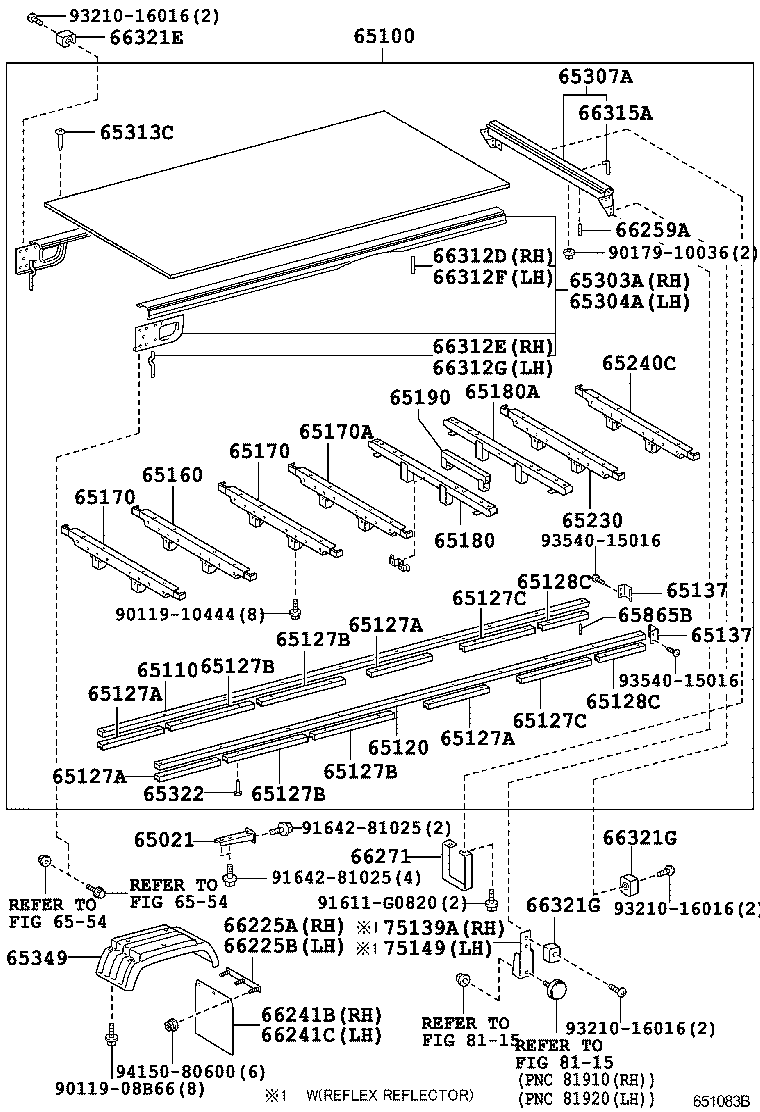

| Linked diagrams | ||||
| 6554 | ||||
| 8115 | ||||
