WU720L-TKFRLV (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )6F

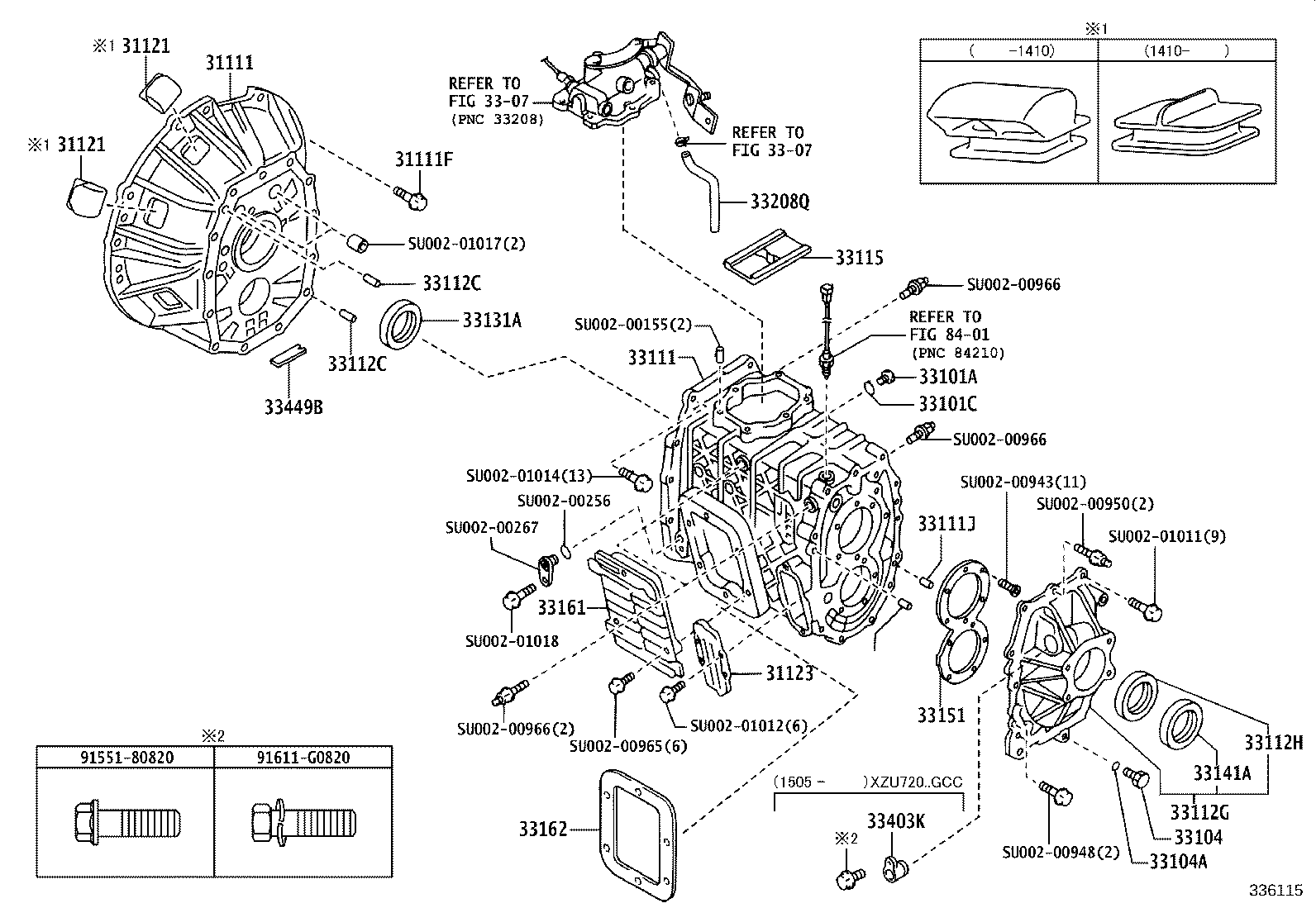

Click highlighted areas on diagram

MYY6S

diagram 31111 31111F 31121 31121 31123 3307 3307 33101A 33101C 33104 33104A 33111 33111J 33112C 33112C 33112G 33112H 33115 33131A 33141A 33151 33161 33162 33208Q 33403K 33449B 8401 9155180820 91611G0820 SU00200155 SU00200256 SU00200267 SU00200943 SU00200948 SU00200950 SU00200965 SU00200966 SU00200966 SU00200966 SU00201011 SU00201012 SU00201014 SU00201017 SU00201018
Part # Description Qty Price
31111 - HOUSING, CLUTCH
SU002-01092

XZU710,720..6F..GCC

 1
SU002-01132

XZU710,720..6F..GCC

 1
SU002-01091

WU710,720..6F

 1
SU002-00667

WU710,720,XZU710,720,730..6F

 1
SU002-01131

WU710,720..6F

 1
31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING)
90119-10898

WU700,710,720;XZU710,720..MTM..GCC

 12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

WU710,720,XZU710,720,730..6F

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

WU710,720,XZU710,720,730..6F

 2
31123 - COVER, CLUTCH HOUSING, NO.2
SU002-00158

WU710,720,XZU710,720..6F..GCC

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
SU002-00944

WU710,720,XZU710,720..6F..GCC

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
SU002-00149

WU710,720,XZU710,720..6F..GCC

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
SU002-00945

WU710,720,XZU710,720..6F..GCC

 1
33104A - GASKET, DRAIN PLUG(MTM)
SU002-00149

WU710,720,XZU710,720..6F..GCC

 1
33111 - CASE, MANUAL TRANSMISSION
SU002-01134

WU710,720,XZU710,720..6F..GCC

 1
SU002-00713

WU710,720,XZU710,720..6F..GCC

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00156

WU710,720,XZU710,720..6F..GCC

 2
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
SU002-00155

WU710,720,XZU710,720..6F..GCC

 2
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
SU002-00155

WU710,720,XZU710,720..6F..GCC

 2
33112G - CASE, TRANSMISSION, REAR
SU002-00871

WU710,720,XZU710,720..6F..GCC

 1
33112H - BEARING, TRANSMISSION CASE NEEDLE
SU002-00341

WU710,720,XZU710,720..6F..GCC

 1
33115 - PLATE, TRANSMISSION OIL FILTER
SU002-00474

WU710,720,XZU710,720..6F..GCC

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
SU002-00148

WU710,720,XZU710,720..6F..GCC

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
SU002-00154

WU710,720,XZU710,720..6F..GCC

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
SU002-00168

WU710,720,XZU710,720..6F..GCC

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
SU002-00150

WU710,720,XZU710,720..6F..GCC

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
SU002-00147

WU710,720,XZU710,720..6F..GCC

 1
33208Q - HOSE, BREATHER
SU002-00265

WU710,720,XZU710,720..6F..GCC

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33482-37130

XZU710,720..6F..GCC

 1
33449B - MAGNET, TRANSMISSION
SU002-00157

WU710,720,XZU710,720..6F..GCC

 1
Common parts
91551-80820
91611-G0820
SU002-00155
SU002-00256
SU002-00267
SU002-00943
SU002-00948
SU002-00950
SU002-00965
SU002-00966
SU002-01011
SU002-01012
SU002-01014
SU002-01017
SU002-01018
Linked diagrams
3307
8401
