WU700L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1107- )

Click highlighted areas on diagram

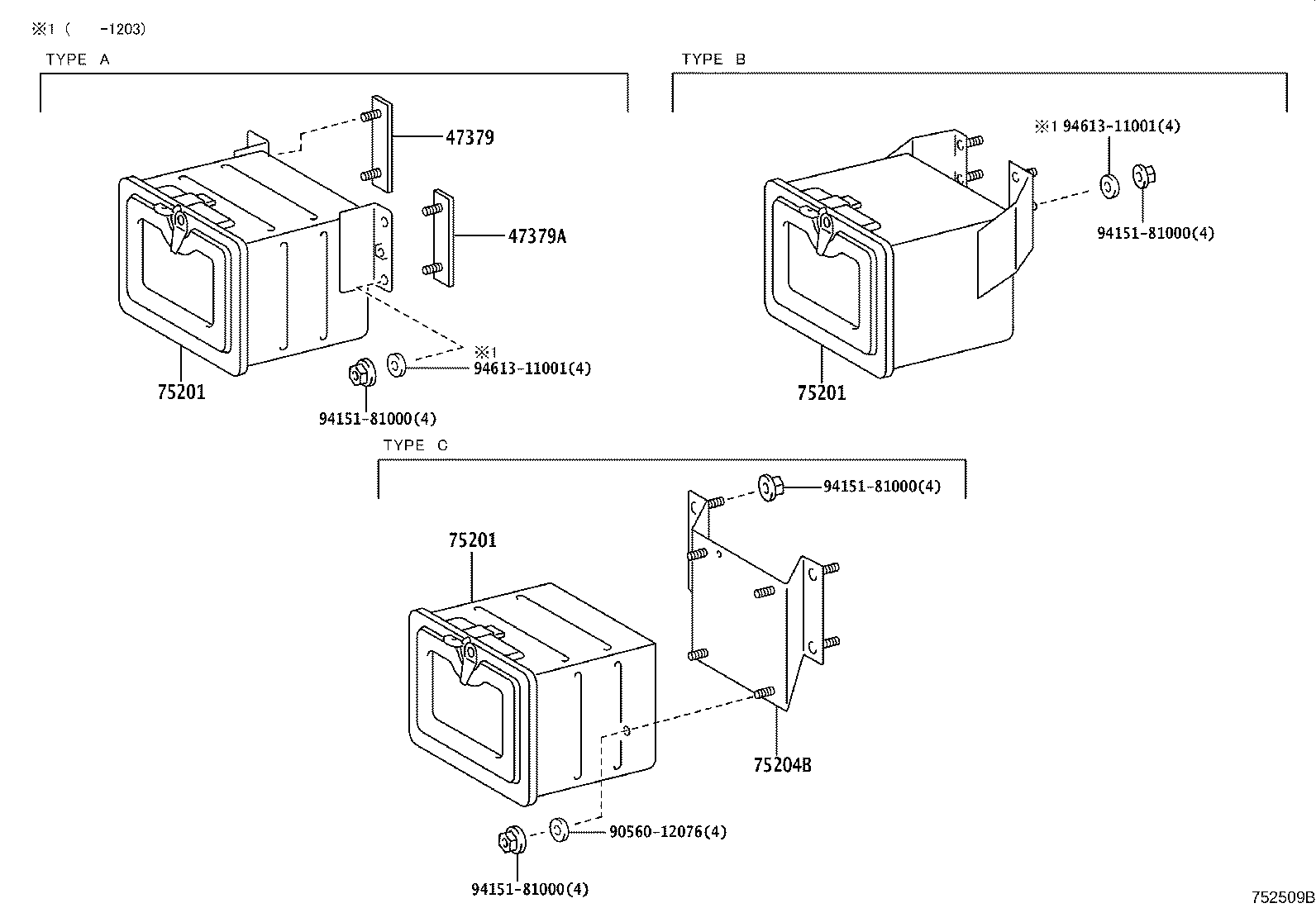

TOOL BOX

diagram 47379 47379A 75201 75201 75201 75204B 9056012076 9415181000 9415181000 9415181000 9415181000 9461311001 9461311001
Part # Description Qty Price
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37151

WU700

TOOL BOX-WITH(REAR LH SIDE),TYPE B:REFER ILLUST.

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37151

WU700

TOOL BOX-WITH(REAR LH SIDE),TYPE B:REFER ILLUST.

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37151

WU700

TOOL BOX-WITH(REAR LH SIDE),TYPE B:REFER ILLUST.

 1
Common parts
90560-12076
94151-81000
94613-11001

ILLUST NO. 2 OF 4(1107- )

Click highlighted areas on diagram

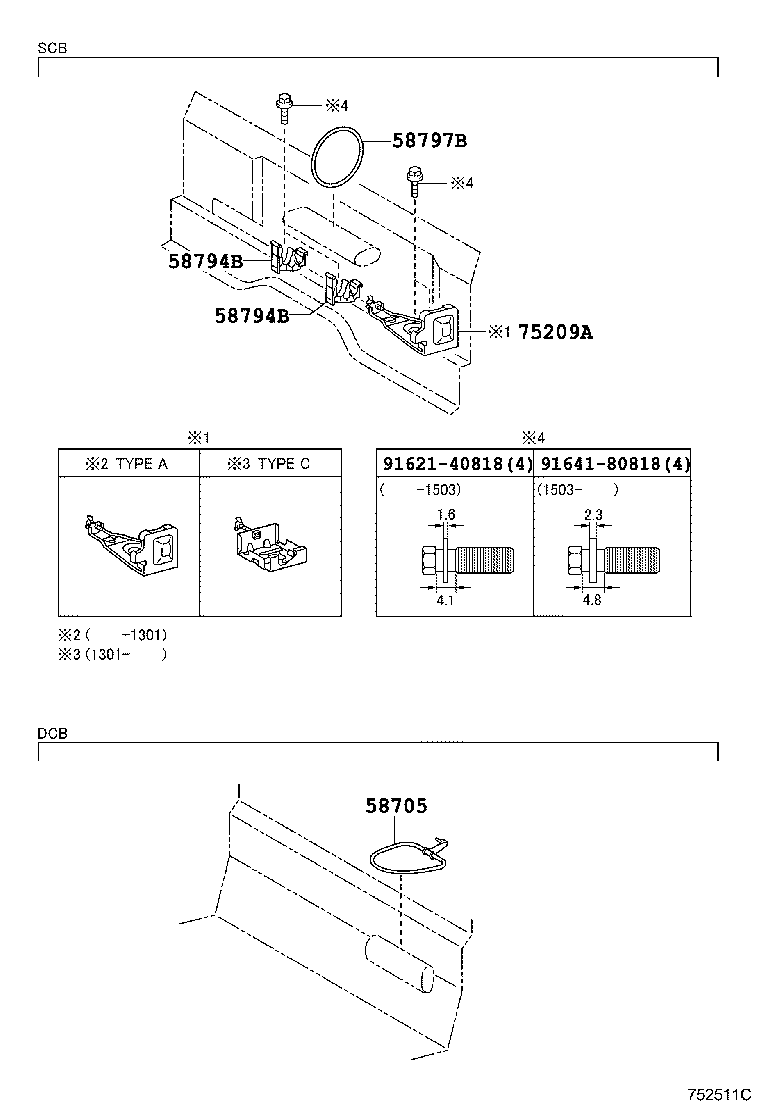

TOOL BAND

diagram 58705 58794B 58794B 58797B 75209A 9162140818 9164180818
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

WU700,710,720;XZU710,720..SCB..MTM..GCC

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

WU700,710,720;XZU710,720..SCB..MTM..GCC

 2
58797B - BAND, JACK CLAMP
58797-37010

WU700,710,720;XZU710,720..SCB..MTM..GCC

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-37011

WU700,710,720,XZU710,720..SCB

TYPE A:REFER ILLUST.

 1
Common parts
91621-40818
91641-80818

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

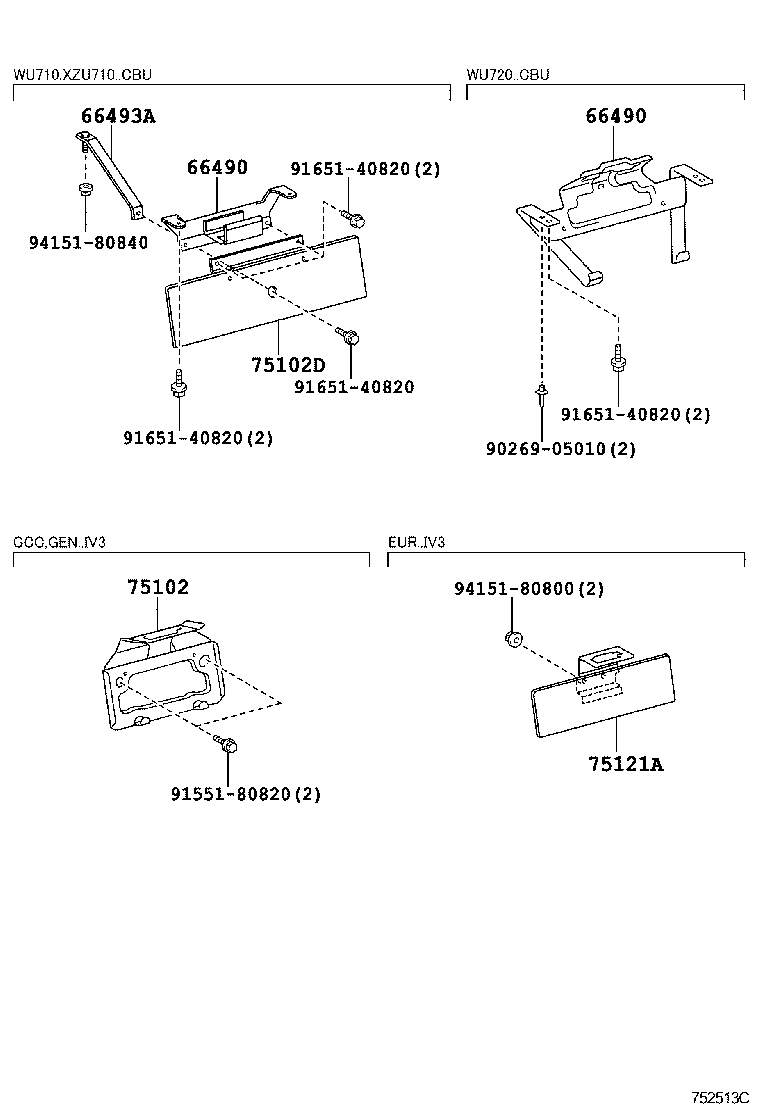

LICENSE PLATE BRACKET

diagram 66490 66490 66493A 75102 75102D 75121A 9026905010 9155180820 9165140820 9165140820 9165140820 9165140820 9415180800 9415180840
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37050

WU700,710,720..IV3;XZU710,720..GCC..IV3

 1
Common parts
90269-05010
91551-80820
91651-40820
94151-80800
94151-80840

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

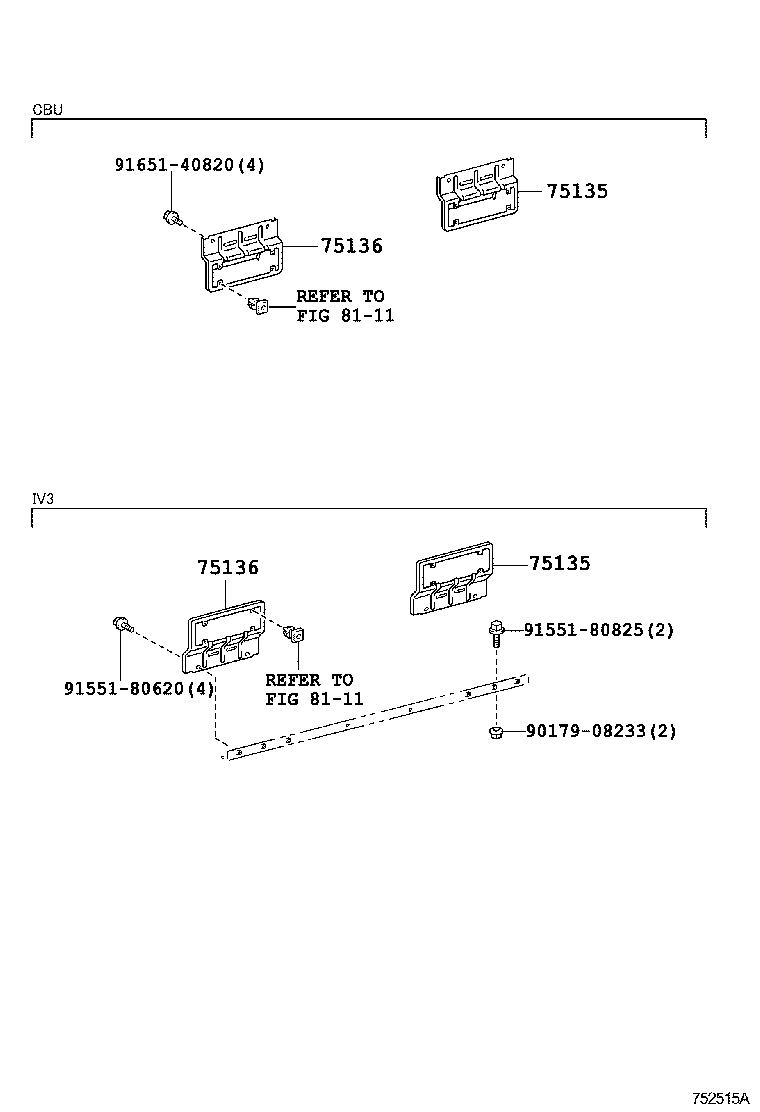

REAR LAMP BRACKET

diagram 75135 75135 75136 75136 8111 8111 9017908233 9155180620 9155180825 9165140820
Part # Description Qty Price
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070

WU700,710,720,XZU710,720

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070

WU700,710,720,XZU710,720

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37070

WU700,710,720,XZU710,720

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37070

WU700,710,720,XZU710,720

 1
Common parts
90179-08233
91551-80620
91551-80825
91651-40820
Linked diagrams
8111
