6452 - ROOF HEADLINING & SILENCER PAD

WU700L-TKMQJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

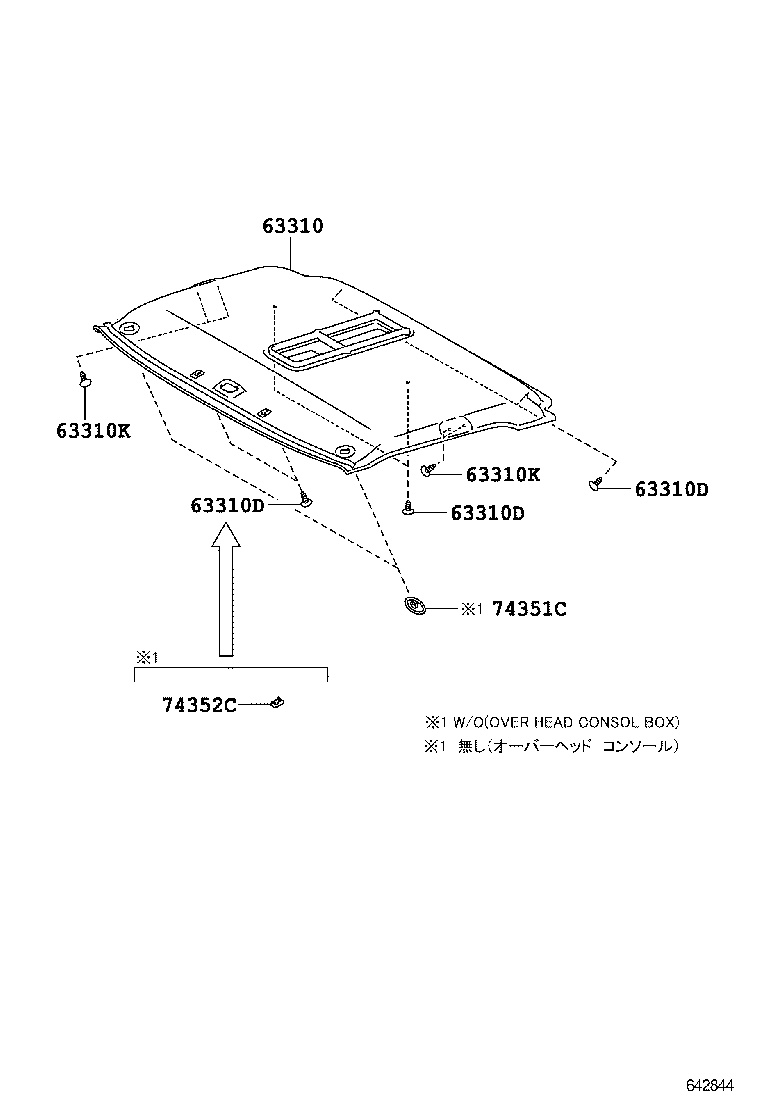

ILLUST NO. 1 OF 2(1107- )SCB

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
63310 - HEADLINING ASSY, ROOF
63310-37380B0	WU700,710,720;XZU710,720..SCB..MTM..GCC OVER HEAD CONSOLE-WITH,GRAY,TRIM1#	07/2011 - 05/2020	1
63310-37390B0	WU700,710,720;XZU710,720..SCB..MTM..GCC ROOM LAMP-WITH(LED LAMP)&OVER HEAD CONSOLE-WITH,GRAY,TRIM1#	07/2011 - 05/2020	1
63310-37410B0	WU700,710,720;XZU710,720..SCB..MTM..GCC GRAY,TRIM1#	07/2011 - 05/2020	1
63310-37420B0	WU700,710,720;XZU710,720..SCB..MTM..GCC ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#	07/2011 - 05/2020	1
63310D - CLIP, ROOF HEADLINING
90467-06048B9	WU700,710,720;XZU710,720..SCB..MTM..GCC MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	4
63310D - CLIP, ROOF HEADLINING
90467-06048B9	WU700,710,720;XZU710,720..SCB..MTM..GCC MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	4
63310D - CLIP, ROOF HEADLINING
90467-06048B9	WU700,710,720;XZU710,720..SCB..MTM..GCC MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	4
63310K - CLIP
90467-06048B9	WU700,710,720;XZU710,720..SCB..MTM..GCC ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2),MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	2
90467-06048B9	WU700,710,720;XZU710,720..MTM..GCC MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	4
90467-06048B9	WU710..GEN;WU700,720..5F;WU710..85T..CBU ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1),MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	2
63310K - CLIP
90467-06048B9	WU700,710,720;XZU710,720..SCB..MTM..GCC ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2),MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	2
90467-06048B9	WU700,710,720;XZU710,720..MTM..GCC MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	4
90467-06048B9	WU710..GEN;WU700,720..5F;WU710..85T..CBU ASSIST GRIP-WITH(DRIVER:1,PASSENGER:2,CENTER:1),MD.CHARCOAL,TRIM1#	07/2011 - 05/2020	2

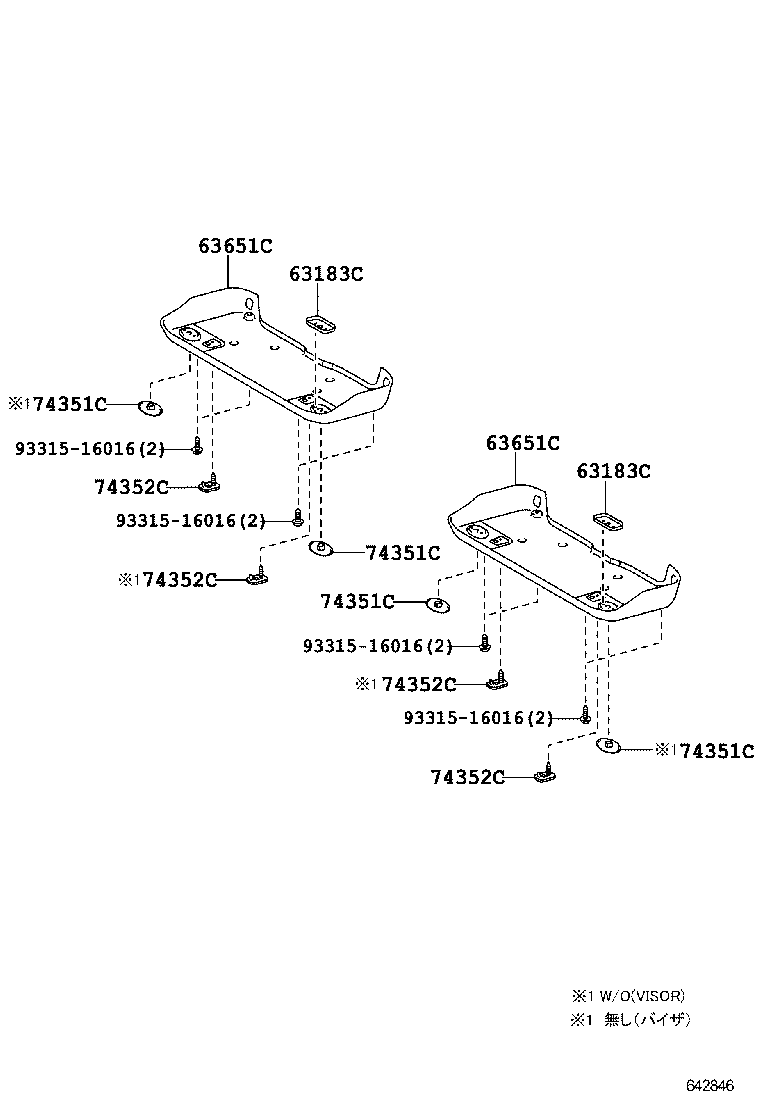

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

W(OVERHEAD CONSOLE BOX)

diagram

Part #	Description	Period	Qty	Price
63183C - BRACKET, ROOF CONSOLE, FRONT
63183-37040	WU700,710,720;XZU710,720..MTM..GCC OVER HEAD CONSOLE-WITH	07/2011 - 05/2020	1
63183C - BRACKET, ROOF CONSOLE, FRONT
63183-37040	WU700,710,720;XZU710,720..MTM..GCC OVER HEAD CONSOLE-WITH	07/2011 - 05/2020	1
63651C - BOX, ROOF CONSOLE
63651-37010B0	WU700,710,720;XZU710,720..MTM..GCC OVER HEAD CONSOLE-WITH,GRAY,TRIM1#	07/2011 - 05/2020	2
63651C - BOX, ROOF CONSOLE
63651-37010B0	WU700,710,720;XZU710,720..MTM..GCC OVER HEAD CONSOLE-WITH,GRAY,TRIM1#	07/2011 - 05/2020	2
Common parts
93315-16016
