WU700L-TKMQJV3 (2011)
Toyota Dyna
(1107-1505)W04D..WU700,720..65T ; (1107-1505)W04D..WU710..85T..CBU ; (1107- )W04
24V 30A

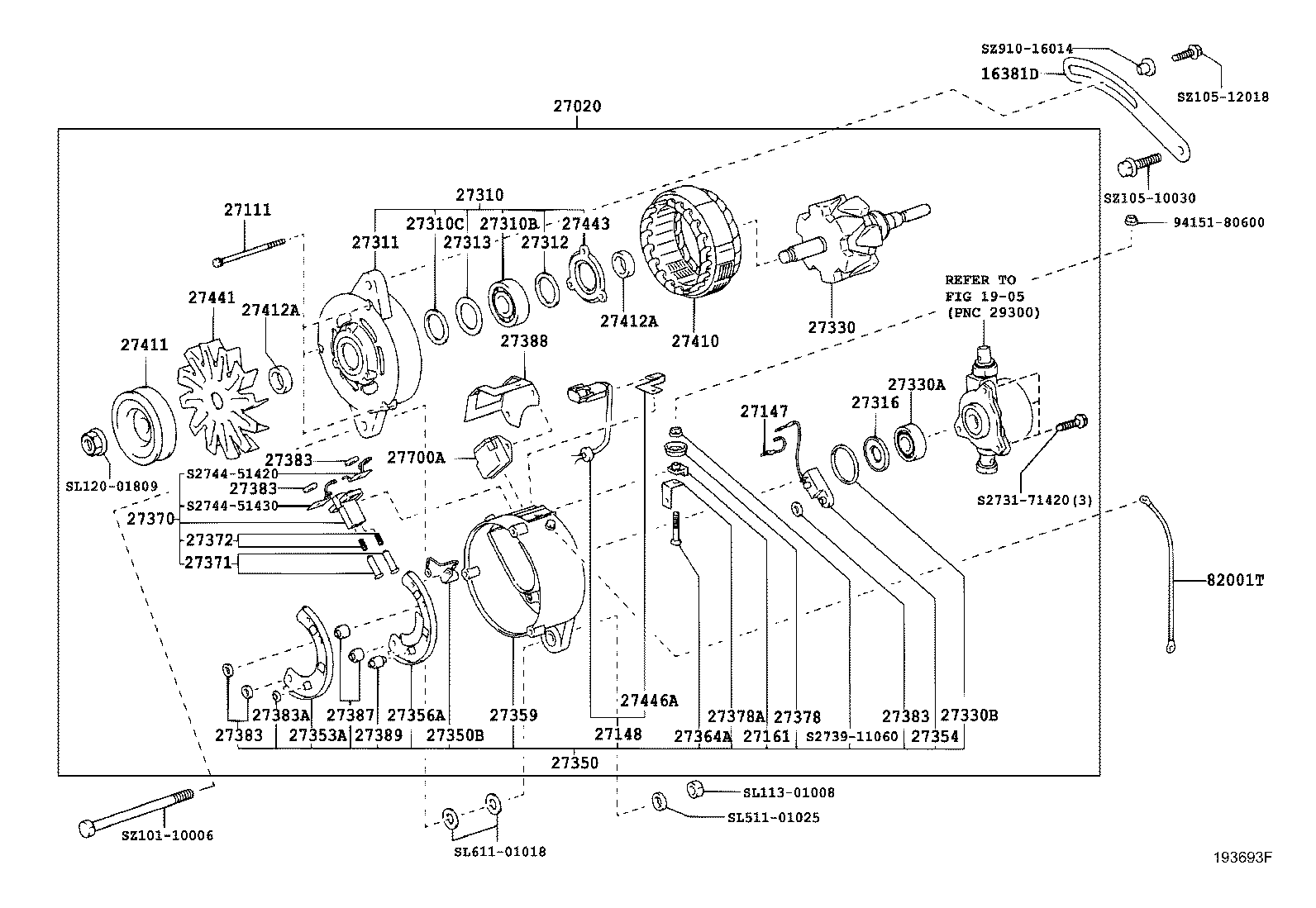

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16381D - BAR, FAN BELT ADJUSTING | ||||
| S1250-91890 |
W04D..WU700,710,720 |
1 | ||
| S1250-91890 |
W04D..WU700,710,720 |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| S2705-01112 |
W04D..WU700,710,720 24V 30A |
1 | ||
| S2705-01112 |
W04D..WU700,710,720 24V 30A |
1 | ||
| 27111 - BOLT, ALTERNATOR | ||||
| S2731-71101 |
W04D..WU700,710,720 |
3 | ||
| S2731-71101 |
W04D..WU700,710,720 |
3 | ||
| 27147 - TERMINAL, W/LEAD WIRE | ||||
| S2714-71340 |
W04D..WU700,710,720 |
1 | ||
| S2714-71340 |
W04D..WU700,710,720 |
1 | ||
| 27148 - WIRE, ALTERNATOR CONNECTING | ||||
| S2735-81750 |
W04D..WU700,710,720 |
1 | ||
| S2735-81750 |
W04D..WU700,710,720 |
1 | ||
| 27161 - INSULATOR, BRUSH HOLDER, B | ||||
| S2738-31420 |
W04D..WU700,710,720 |
1 | ||
| S2738-31420 |
W04D..WU700,710,720 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| S2731-01451 |
W04D..WU700,710,720 |
1 | ||
| S2731-01451 |
W04D..WU700,710,720 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2825-21830 |
W04D..WU700,710,720 |
1 | ||
| S2825-21830 |
W04D..WU700,710,720 |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2731-51170 |
W04D..WU700,710,720 |
1 | ||
| S2731-51170 |
W04D..WU700,710,720 |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| S2731-11401 |
W04D..WU700,710,720 |
1 | ||
| S2731-11401 |
W04D..WU700,710,720 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| S2731-21500 |
W04D..WU700,710,720 |
1 | ||
| S2731-21500 |
W04D..WU700,710,720 |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| S2731-31150 |
W04D..WU700,710,720 |
1 | ||
| S2731-31150 |
W04D..WU700,710,720 |
1 | ||
| 27316 - PACKING, RETAINER PLATE, ALTERNATOR | ||||
| S2731-61050 |
W04D..WU700,710,720 |
1 | ||
| S2731-61050 |
W04D..WU700,710,720 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| S2733-01990 |
W04D..WU700,710,720 |
1 | ||
| S2733-01990 |
W04D..WU700,710,720 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| S2825-21530 |
W04D..WU700,710,720 |
1 | ||
| S2825-21530 |
W04D..WU700,710,720 |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| SZ301-39008 |
W04D..WU700,710,720 |
1 | ||
| SZ301-39008 |
W04D..WU700,710,720 |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| S2735-03011 |
W04D..WU700,710,720 |
1 | ||
| S2735-03011 |
W04D..WU700,710,720 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| S2735-51110 |
W04D..WU700,710,720 |
1 | ||
| S2735-51110 |
W04D..WU700,710,720 |
1 | ||
| 27353A - HOLDER, W/RECTIFIER | ||||
| S2735-31770 |
W04D..WU700,710,720 |
1 | ||
| S2735-31770 |
W04D..WU700,710,720 |
1 | ||
| 27354 - WIRE SUB-ASSY, ALTERNATOR LEAD | ||||
| S2735-81810 |
W04D..WU700,710,720 |
1 | ||
| S2735-81810 |
W04D..WU700,710,720 |
1 | ||
| 27356A - HOLDER SUB-ASSY, RECTIFIER | ||||
| S2735-61440 |
W04D..WU700,710,720 |
1 | ||
| S2735-61440 |
W04D..WU700,710,720 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| S2735-92441 |
W04D..WU700,710,720 |
1 | ||
| S2735-92441 |
W04D..WU700,710,720 |
1 | ||
| 27364A - BOLT, ALTERNATOR TERMINAL | ||||
| S2736-41500 |
W04D..WU700,710,720 |
1 | ||
| S2736-41500 |
W04D..WU700,710,720 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01360 |
W04D..WU700,710,720 |
1 | ||
| S2737-01360 |
W04D..WU700,710,720 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| S2737-11210 |
W04D..WU700,710,720 |
2 | ||
| S2737-11210 |
W04D..WU700,710,720 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| S2737-21150 |
W04D..WU700,710,720 |
2 | ||
| S2737-21150 |
W04D..WU700,710,720 |
2 | ||
| 27378 - INSULATOR, ALTERNATOR, NO.1 | ||||
| S2737-81690 |
W04D..WU700,710,720 |
1 | ||
| S2737-81690 |
W04D..WU700,710,720 |
1 | ||
| 27378A - INSULATOR, ALTERNATOR, NO.2 | ||||
| S2737-81700 |
W04D..WU700,710,720 |
1 | ||
| S2737-81700 |
W04D..WU700,710,720 |
1 | ||
| 27383 - WASHER, ALTERNATER TERMINAL INSULATOR, NO.1 | ||||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| 27383 - WASHER, ALTERNATER TERMINAL INSULATOR, NO.1 | ||||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| 27383 - WASHER, ALTERNATER TERMINAL INSULATOR, NO.1 | ||||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| 27383 - WASHER, ALTERNATER TERMINAL INSULATOR, NO.1 | ||||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| S2738-31330 |
W04D..WU700,710,720 |
4 | ||
| 27383A - WASHER, ALTERNATER TERMINAL INSULATOR, NO.2 | ||||
| S2738-31440 |
W04D..WU700,710,720 |
1 | ||
| S2738-31440 |
W04D..WU700,710,720 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| S2738-91310 |
W04D..WU700,710,720 |
2 | ||
| S2738-91310 |
W04D..WU700,710,720 |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| S2738-81280 |
W04D..WU700,710,720 |
1 | ||
| S2738-81280 |
W04D..WU700,710,720 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| S2738-91320 |
W04D..WU700,710,720 |
1 | ||
| S2738-91320 |
W04D..WU700,710,720 |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| S2741-01580 |
W04D..WU700,710,720 |
1 | ||
| S2741-01580 |
W04D..WU700,710,720 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| S2743-11350 |
W04D..WU700,710,720 |
1 | ||
| S2743-11350 |
W04D..WU700,710,720 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2741-21130 |
W04D..WU700,710,720 |
2 | ||
| S2741-21130 |
W04D..WU700,710,720 |
2 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2741-21130 |
W04D..WU700,710,720 |
2 | ||
| S2741-21130 |
W04D..WU700,710,720 |
2 | ||
| 27441 - FAN, ALTERNATOR | ||||
| S2744-11140 |
W04D..WU700,710,720 |
1 | ||
| S2744-11140 |
W04D..WU700,710,720 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| S2713-31070 |
W04D..WU700,710,720 |
1 | ||
| S2713-31070 |
W04D..WU700,710,720 |
1 | ||
| 27446A - CLAMP | ||||
| S2744-51440 |
W04D..WU700,710,720 |
1 | ||
| S2744-51440 |
W04D..WU700,710,720 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| S2770-01450 |
W04D..WU700,710,720 |
1 | ||
| S2770-01450 |
W04D..WU700,710,720 |
1 | ||
| 82001T - CABLE, BOND | ||||
| 82121-E0D60 |
WU700,710,720 |
1 | ||
| 82121-E0D60 |
WU700,710,720 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
| S2731-71420 | ||||
| S2739-11060 | ||||
| S2744-51420 | ||||
| S2744-51430 | ||||
| SL113-01008 | ||||
| SL120-01809 | ||||
| SL511-01025 | ||||
| SL611-01018 | ||||
| SZ101-10006 | ||||
| SZ105-10030 | ||||
| SZ105-12018 | ||||
| SZ910-16014 | ||||
| Linked diagrams | ||||
| 1905 | ||||
(1107-1505)N04C..XZU710..CBU ; (1107- )W04D..65T,85T ; (1107- )N04C..MTM..EUR
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| S2705-01112 |
W04D..WU700,710,720 24V 30A |
1 | ||
| S2705-01112 |
W04D..WU700,710,720 24V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| S2731-01451 |
W04D..WU700,710,720 |
1 | ||
| S2731-01451 |
W04D..WU700,710,720 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2825-21830 |
W04D..WU700,710,720 |
1 | ||
| S2825-21830 |
W04D..WU700,710,720 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| S2731-21500 |
W04D..WU700,710,720 |
1 | ||
| S2731-21500 |
W04D..WU700,710,720 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| S2733-01990 |
W04D..WU700,710,720 |
1 | ||
| S2733-01990 |
W04D..WU700,710,720 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| S2825-21530 |
W04D..WU700,710,720 |
1 | ||
| S2825-21530 |
W04D..WU700,710,720 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| S2735-92441 |
W04D..WU700,710,720 |
1 | ||
| S2735-92441 |
W04D..WU700,710,720 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01360 |
W04D..WU700,710,720 |
1 | ||
| S2737-01360 |
W04D..WU700,710,720 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| S2738-91310 |
W04D..WU700,710,720 |
2 | ||
| S2738-91310 |
W04D..WU700,710,720 |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| S2738-81280 |
W04D..WU700,710,720 |
1 | ||
| S2738-81280 |
W04D..WU700,710,720 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| S2738-91320 |
W04D..WU700,710,720 |
1 | ||
| S2738-91320 |
W04D..WU700,710,720 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| S2743-11350 |
W04D..WU700,710,720 |
1 | ||
| S2743-11350 |
W04D..WU700,710,720 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| S2713-31070 |
W04D..WU700,710,720 |
1 | ||
| S2713-31070 |
W04D..WU700,710,720 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| S2770-01450 |
W04D..WU700,710,720 |
1 | ||
| S2770-01450 |
W04D..WU700,710,720 |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 93319-14025 | ||||
| 94151-80600 | ||||
