WU650L-TKMMJV3 (2011)
Toyota Dyna
(1107- )ST..CBU ; (1107- )ST..GCC..IV3 ; (1107- )WU600,650..WT..DCRTH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37080 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88320-37080 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88320-37110 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88320-37080 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88320-37110 |
XZU600,650..GCC |
1 | ||
| 88320-37080 |
WU600,650..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88335-14020 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88335-14020 |
WU600,650,XZU600,650..GCC |
1 | ||
| 88335-14020 |
WU600,650,XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88389A - WIRE, COMPRESSOR | ||||
| 88389-37040 |
WU600,650 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88649-37010 |
WU600,650..GCC |
1 | ||
| 88649-37010 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88389-37040 |
WU600,650 AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88649-37010 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88649-37010 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XZU600,650..GCC |
1 | ||
| 88410-37130 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88410-37130 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88410-37130 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88410-17100 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88410-37130 |
WU600,650..GCC |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37220 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88420-37220 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88420-37230 |
XZU600,650..GCC |
1 | ||
| 88420-37230 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88420-37220 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88420-37220 |
WU600,650..GCC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37130 |
XZU600,650..GCC |
1 | ||
| 88345-37140 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88345-37140 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88345-37140 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88345-37140 |
WU600,650..GCC |
1 | ||
| 88431-37130 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37020 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88440-37020 |
WU600,650..GCC |
1 | ||
| 88440-37120 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88440-37020 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88440-37120 |
XZU600,650..GCC |
1 | ||
| 88440-37020 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 90105-08099 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 90105-08099 |
WU600,650..GCC |
1 | ||
| 90105-08099 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 90105-08099 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V510 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688-3V510 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88688-3V580 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688-3V510 |
WU600,650..GCC |
1 | ||
| 88688-3V580 |
XZU600,650..GCC |
1 | ||
| 88688-3V510 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-3V450 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688-3V450 |
WU600,650..GCC |
1 | ||
| 88688-3V450 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88688-3V450 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-10480 | ||||
| 90105-10481 | ||||
| 90119-08B42 | ||||
| 90179-10132 | ||||
| 91551-80820 | ||||
| 93319-15008 | ||||

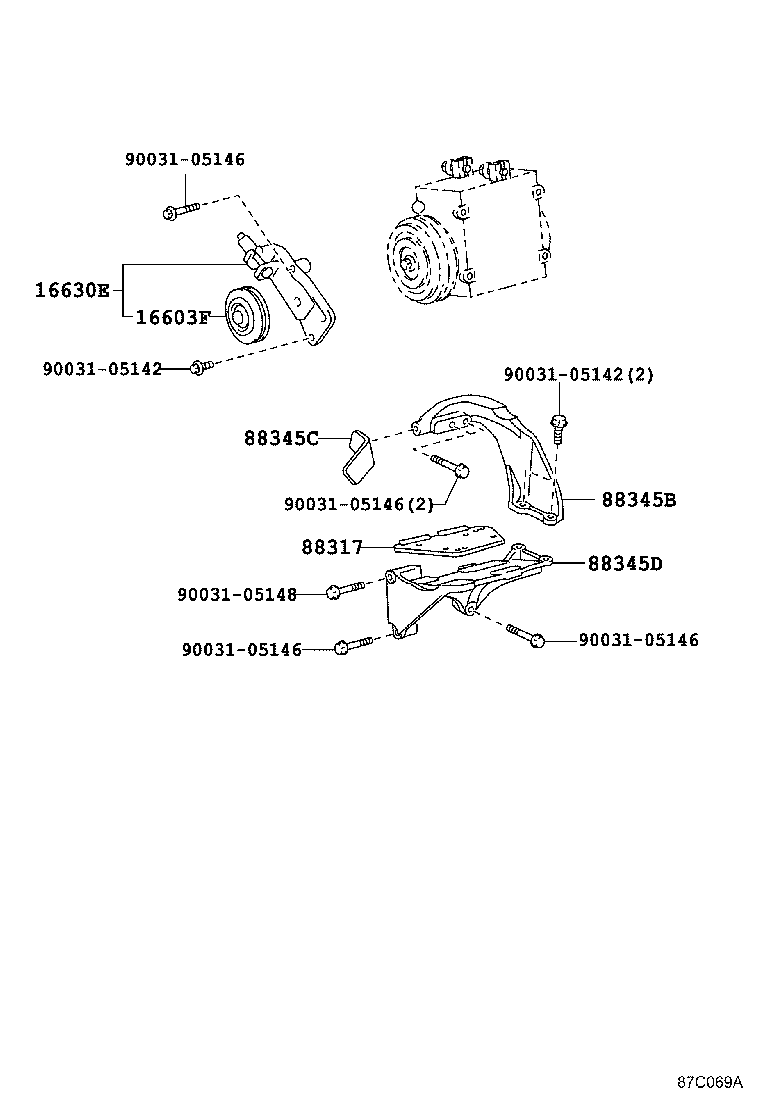

ILLUST NO. 2 OF 2(1605- )XZU600,650..GCC
REFRIGERATOR CAR,COMPRESSOR BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88317 - SPACER, COOLER COMPRESSOR | ||||
| 88317-37030 |
XZU600,650..GCC SPECIAL PURPOSE CHASSIS-REFRIGERATOR CAR,W(COMPRESSOR BRACKET) |
1 | ||
| 88345B - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88345-37170 |
XZU600,650..GCC SPECIAL PURPOSE CHASSIS-REFRIGERATOR CAR,W(COMPRESSOR BRACKET) |
1 | ||
| 88345C - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88345-37190 |
XZU600,650..GCC SPECIAL PURPOSE CHASSIS-REFRIGERATOR CAR,W(COMPRESSOR BRACKET) |
1 | ||
| 88345D - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88345-37180 |
XZU600,650..GCC SPECIAL PURPOSE CHASSIS-REFRIGERATOR CAR,W(COMPRESSOR BRACKET) |
1 | ||
| Common parts | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90031-05148 | ||||

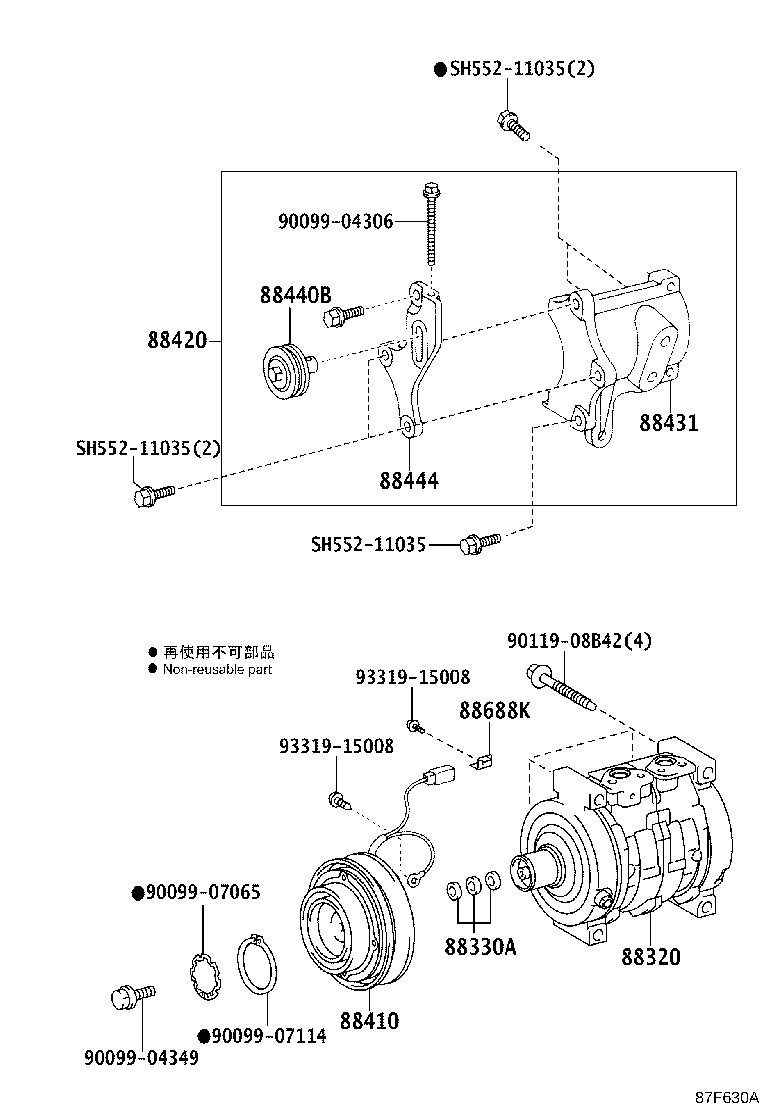

ILLUST NO. 1 OF 2(1605- )XZU600,650..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37080 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88320-37080 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88320-37110 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88320-37080 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88320-37110 |
XZU600,650..GCC |
1 | ||
| 88320-37080 |
WU600,650..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88335-14020 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88335-14020 |
WU600,650,XZU600,650..GCC |
1 | ||
| 88335-14020 |
WU600,650,XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XZU600,650..GCC |
1 | ||
| 88410-37130 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88410-37130 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88410-37130 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88410-17100 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88410-37130 |
WU600,650..GCC |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37220 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88420-37220 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88420-37230 |
XZU600,650..GCC |
1 | ||
| 88420-37230 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88420-37220 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88420-37220 |
WU600,650..GCC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37130 |
XZU600,650..GCC |
1 | ||
| 88345-37140 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88345-37140 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88345-37140 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88345-37140 |
WU600,650..GCC |
1 | ||
| 88431-37130 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37020 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 88440-37020 |
WU600,650..GCC |
1 | ||
| 88440-37120 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88440-37020 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88440-37120 |
XZU600,650..GCC |
1 | ||
| 88440-37020 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37160 |
XZU600,650..GCC |
1 | ||
| 88444-37160 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V510 |
WU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688-3V510 |
WU600,650..GCC AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 88688-3V580 |
XZU600,650..GCC AIR CONDITIONER-WITHOUT |
1 | ||
| 88688-3V510 |
WU600,650..GCC |
1 | ||
| 88688-3V580 |
XZU600,650..GCC |
1 | ||
| 88688-3V510 |
WU600,650..WT..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
| SH552-11035 | ||||
