WU650L-TKMMJV3 (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )XZU600,650

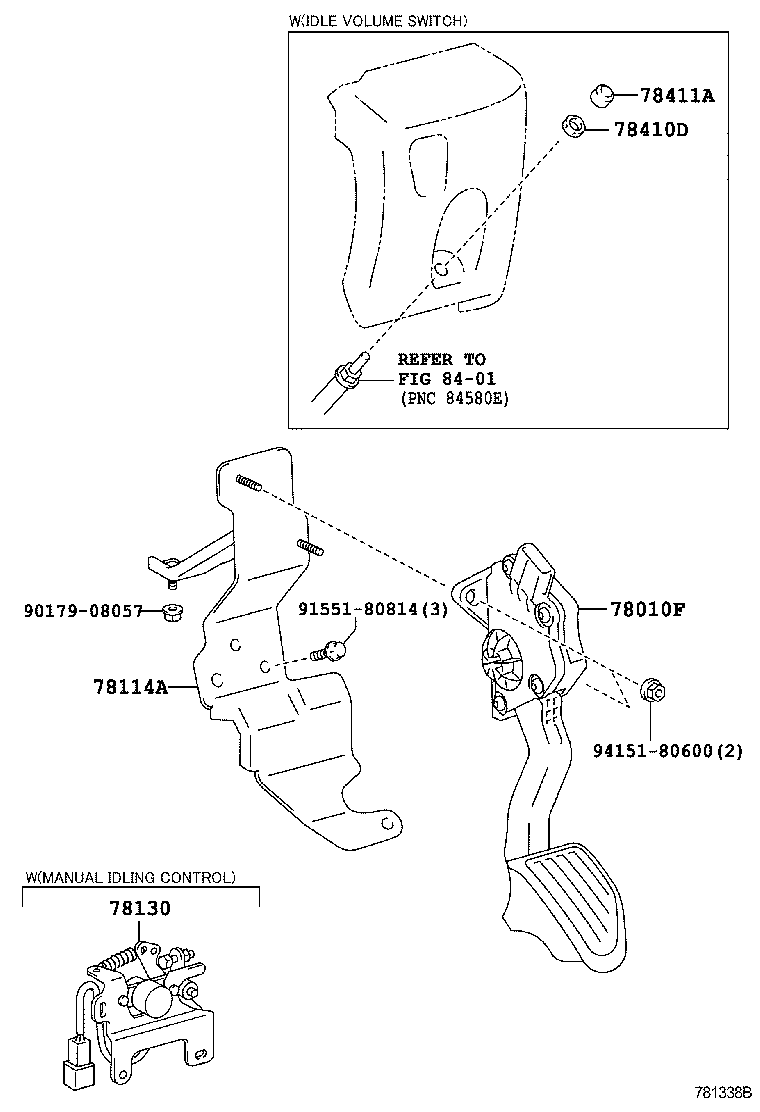

Click highlighted areas on diagram

diagram 78010F 78114A 78130 78410D 78411A 8401 9017908057 9155180814 9415180600
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-37040

XZU600,650..GCC

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-37050

XZU600,650..GCC

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37131

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC,W(CONTROL LEVER))

 1
78130-37131

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(CONTROL LEVER)

 1
78410D - NUT, THROTTLE
78314-95010

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC)

 1
78314-95010

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC,W(CONTROL LEVER))

 1
78314-95010

WU600,650

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC)

 1
78411-95J01

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC,W(CONTROL LEVER))

 1
78411-95J01

WU600,650

 1
Common parts
90179-08057
91551-80814
94151-80600
Linked diagrams
8401

(1107- )WU600,650

Click highlighted areas on diagram

diagram 78100 78111 78150C 78183B 78184B 78184C 78184C 78184E 78189 78190 78410D 78411A 78481 9017908057 9024006012 9046806063 9046814017 9155180614 9155180814 9155180814 9155180816 9155180820 91621J0614
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-37790

WU600,650

 1
78111 - PEDAL, ACCELERATOR
78010-37010

WU600,650

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37701

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37330

WU600,650

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37140

WU600,650

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
78184-37160

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
78184-37160

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
78184E - BRACKET, ACCELERATOR CONTROL CABLE
78184-37260

WU600,650

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37170

WU600,650

 1
78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE
78190-37050

WU600,650

 1
78410D - NUT, THROTTLE
78314-95010

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC)

 1
78314-95010

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC,W(CONTROL LEVER))

 1
78314-95010

WU600,650

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC)

 1
78411-95J01

XZU600,650..GCC

MANUAL IDLING CONTROL-WITH(ELECTRIC,W(CONTROL LEVER))

 1
78411-95J01

WU600,650

 1
78481 - CLAMP, THROTTLE WIRE
78481-37010

WU600,650

 1
Common parts
90179-08057
90240-06012
90468-06063
90468-14017
91551-80614
91551-80814
91551-80816
91551-80820
91621-J0614
