WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

Click highlighted areas on diagram

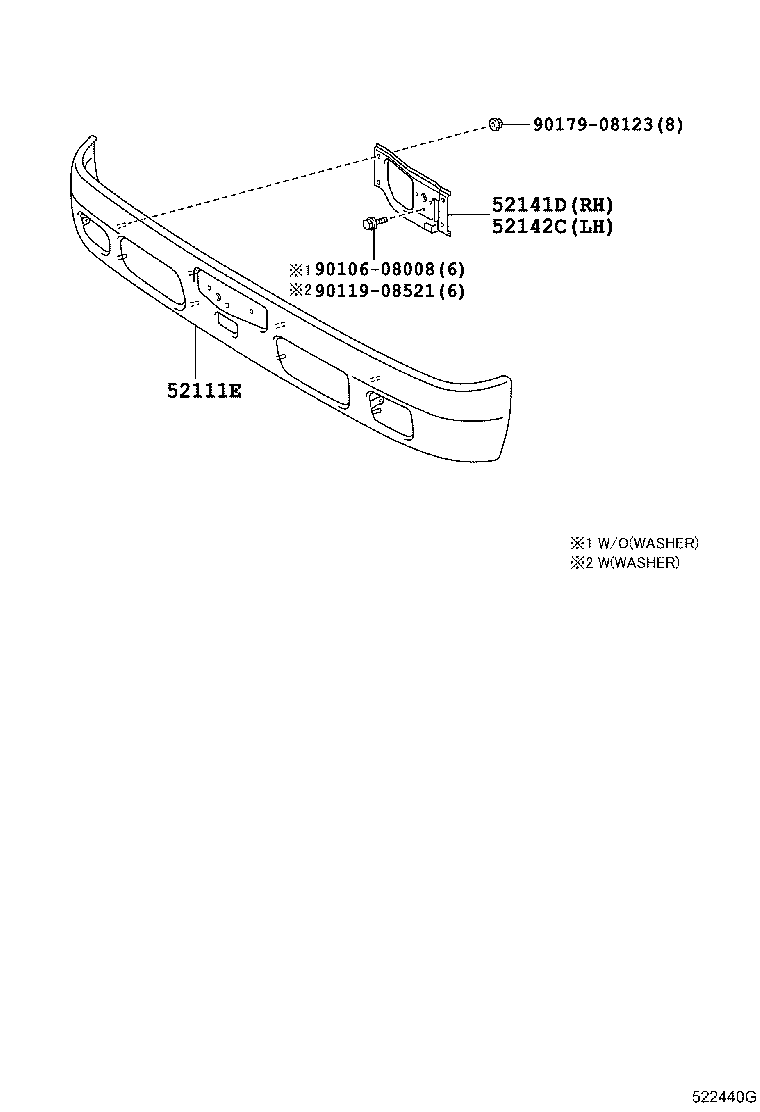

STEEL BUMPER

diagram 52111E 52141D 52142C 9010608008 9011908521 9017908123
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-37300

WU600,650

NO PAINT REQ.

 1
52101-37916

WU600,650,XZU600,650

FRONT BUMPER-PAINTED,STEEL

 1
52101-37181

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PLATED,STEEL

 1
52141D - STAY, FRONT BUMPER, RH
52141-37120

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PAINTED,STEEL

 1
52011-37033

WU600,650

 1
52141-37120

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PLATED,STEEL

 1
52142C - STAY, FRONT BUMPER, LH
52142-37100

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PAINTED,STEEL

 1
52012-37032

WU600,650

 1
52142-37100

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PLATED,STEEL

 1
Common parts
90106-08008
90119-08521
90179-08123

ILLUST NO. 1 OF 3(1107-1701)

Click highlighted areas on diagram

RESIN BUMPER

diagram 52111E 52141D 52142C 9010608008 9011908521 9011908699 9011908699 9017906127 9095003128
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-37300

WU600,650

NO PAINT REQ.

 1
52101-37916

WU600,650,XZU600,650

FRONT BUMPER-PAINTED,STEEL

 1
52101-37181

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PLATED,STEEL

 1
52141D - STAY, FRONT BUMPER, RH
52141-37120

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PAINTED,STEEL

 1
52011-37033

WU600,650

 1
52141-37120

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PLATED,STEEL

 1
52142C - STAY, FRONT BUMPER, LH
52142-37100

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PAINTED,STEEL

 1
52012-37032

WU600,650

 1
52142-37100

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT BUMPER-PLATED,STEEL

 1
Common parts
90106-08008
90119-08521
90119-08699
90179-06127
90950-03128

ILLUST NO. 3 OF 3(1405- )GCC

Click highlighted areas on diagram

BUMPER REINFORCEMENT

diagram 52021 5251 5251 5251 5251 52671A 52672 9017910154 9017910154
Part # Description Qty Price
Common parts
90179-10154
Linked diagrams
5251

ILLUST NO. 2 OF 3(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

Click highlighted areas on diagram

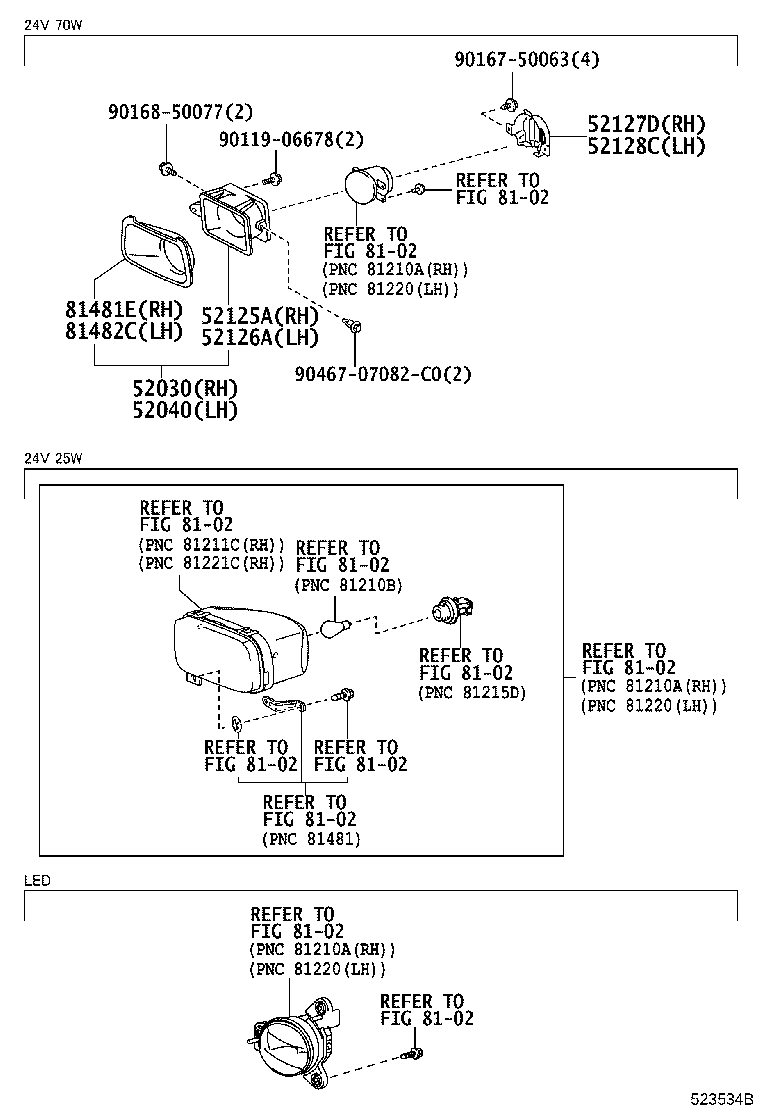

FOG LAMP

diagram 52030 52040 52125A 52126A 52127D 52128C 8102 8102 8102 8102 8102 8102 8102 8102 8102 8102 8102 81481E 81482C 9011906678 9016750063 9016850077 9046707082C0
Part # Description Qty Price
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-37010

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

NO PAINT REQ.,FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-37010

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

NO PAINT REQ.,FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-37030

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-37030

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
81610-37180

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
52128C - COVER, FRONT BUMPER HOLE, LH
81620-37180

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
81481E - COVER, FOG LAMP, RH
52127-37010

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
81482C - COVER, FOG LAMP, LH
52128-37010

WU600,650..GCC..CBU;WU600..ST..GCC..IV3

FRONT FOG LAMP-WITH(WHITE 24V 70W)

 1
Common parts
90119-06678
90167-50063
90168-50077
90467-07082C0
Linked diagrams
8102
