WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )WU600,650

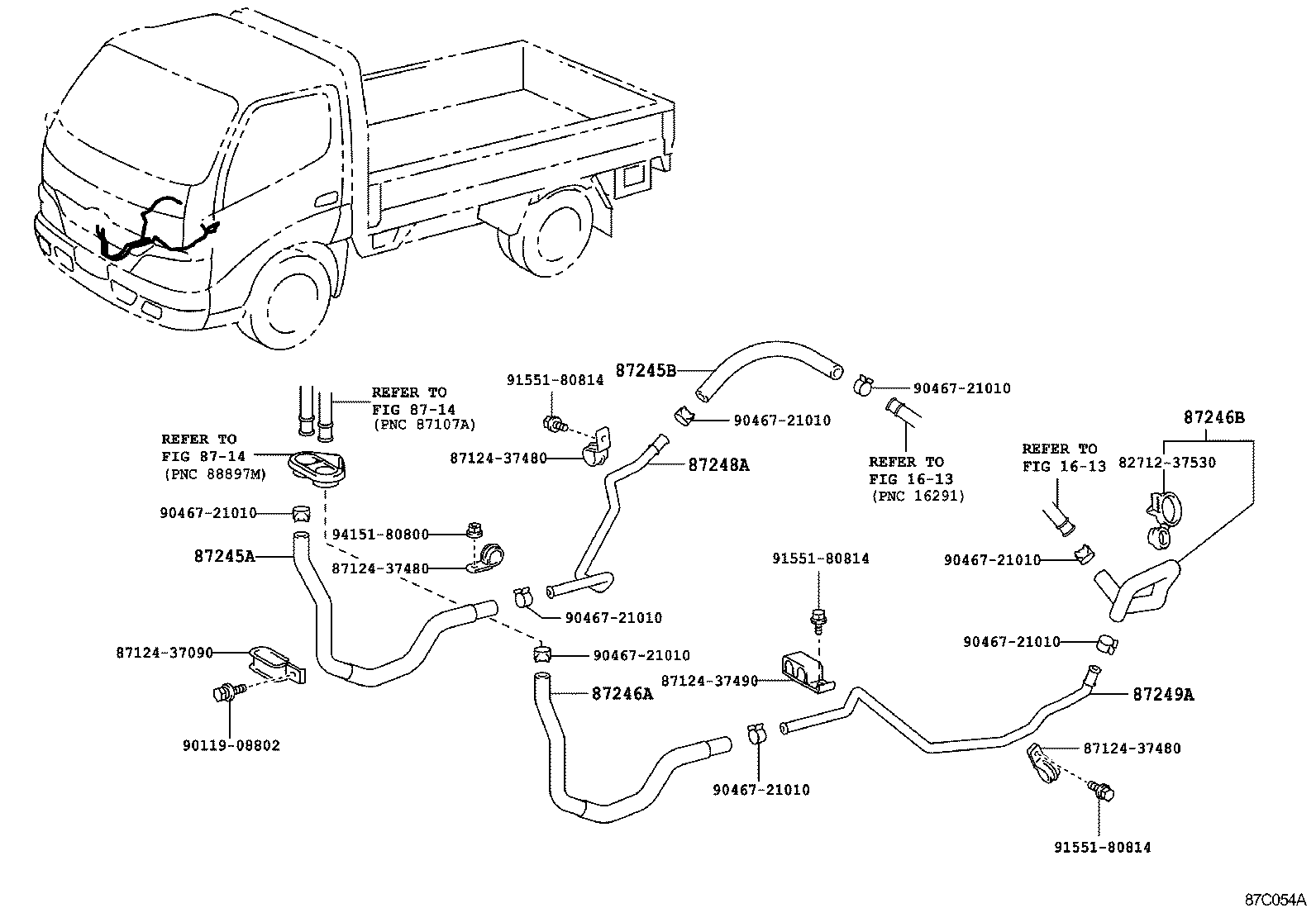

Click highlighted areas on diagram

diagram 1613 1613 8271237530 8712437090 8712437480 8712437480 8712437480 8712437490 8714 8714 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 9155180814 9415180800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-37E30

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37C60

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37E20

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37650

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37B50

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37B80

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

 1
Common parts
82712-37530
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91551-80814
94151-80800
Linked diagrams
1613
8714
