Toyota Dyna WU650 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
DYNA
WU650L-TKMMJV (2011)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107-1408)

Click highlighted areas on diagram

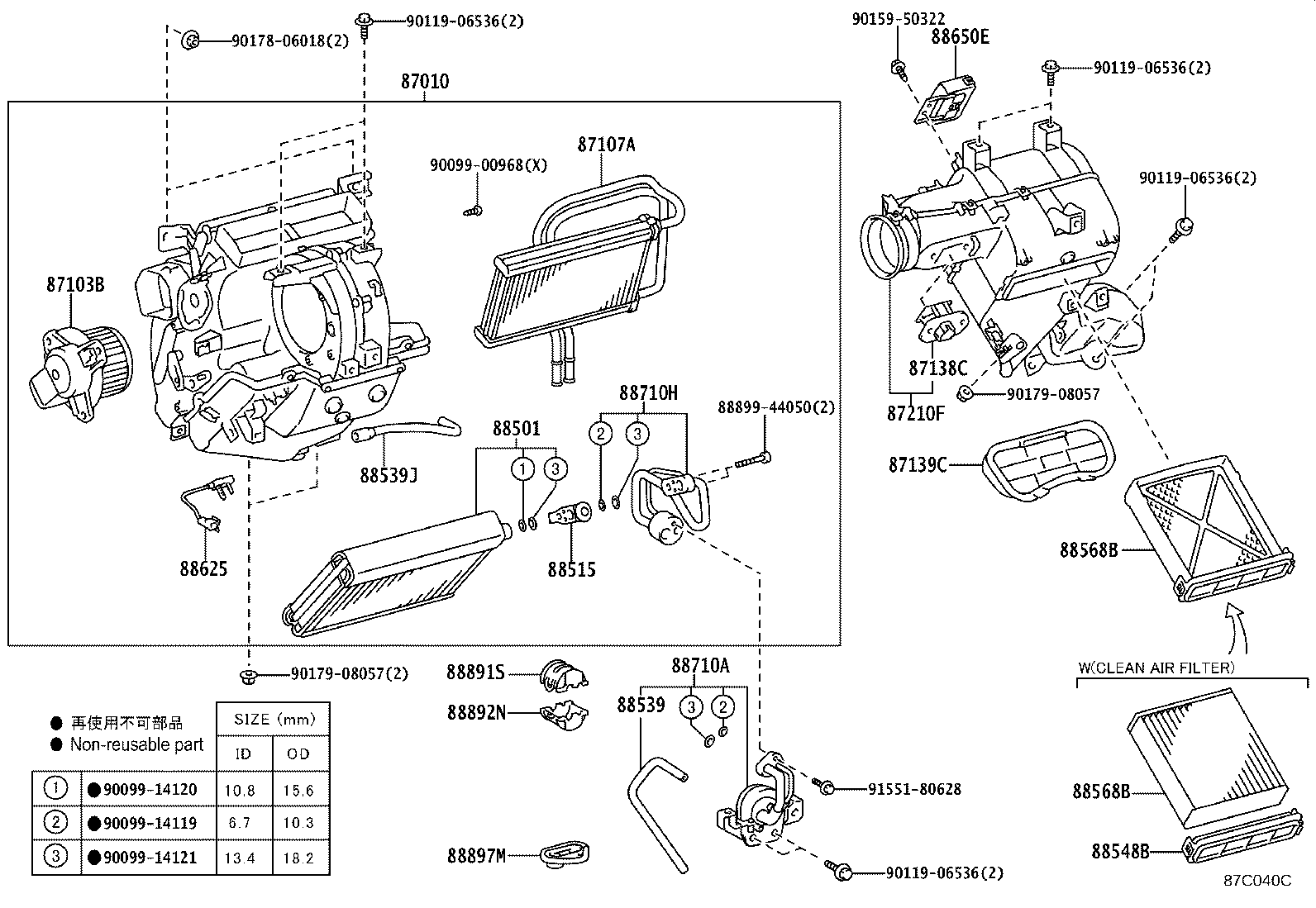

AIR CONDITIONER

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37060	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87010-37060	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87010-37080	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87010-37090	WU600,650	07/2011 - 08/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87107-37090	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87138C - RESISTOR, BLOWER
87138-37230	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87139C - FILTER, CLEAN AIR
87441-37020	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87210F - CASE ASSY, AIR DAMPER
87210-37050	WU600,650	07/2011 - 08/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37120	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88501-37120	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88515 - VALVE, COOLER EXPANSION
88515-12130	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 07/2017	1
88515-12130	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37070	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88539-37070	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88539J - HOSE, DRAIN COOLER
88539-37100	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88539-37100	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88548B - CASE, AIR FILTER
88548-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88625-26090	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-37300	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88650-37300	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37620	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88710-37620	WU600,650 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-37700	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88710-37700	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
88891S - COVER, COOLER, NO.1
88891-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88891-37010	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88892N - COVER, COOLER, NO.2
88892-37020	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88892-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37040	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87128-37070	WU600,650	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
Common parts
88899-44050
90099-00968
90099-14119
90099-14120
90099-14121
90119-06536
90159-50322
90178-06018
90179-08057
91551-80628

(1107-1408)

Click highlighted areas on diagram

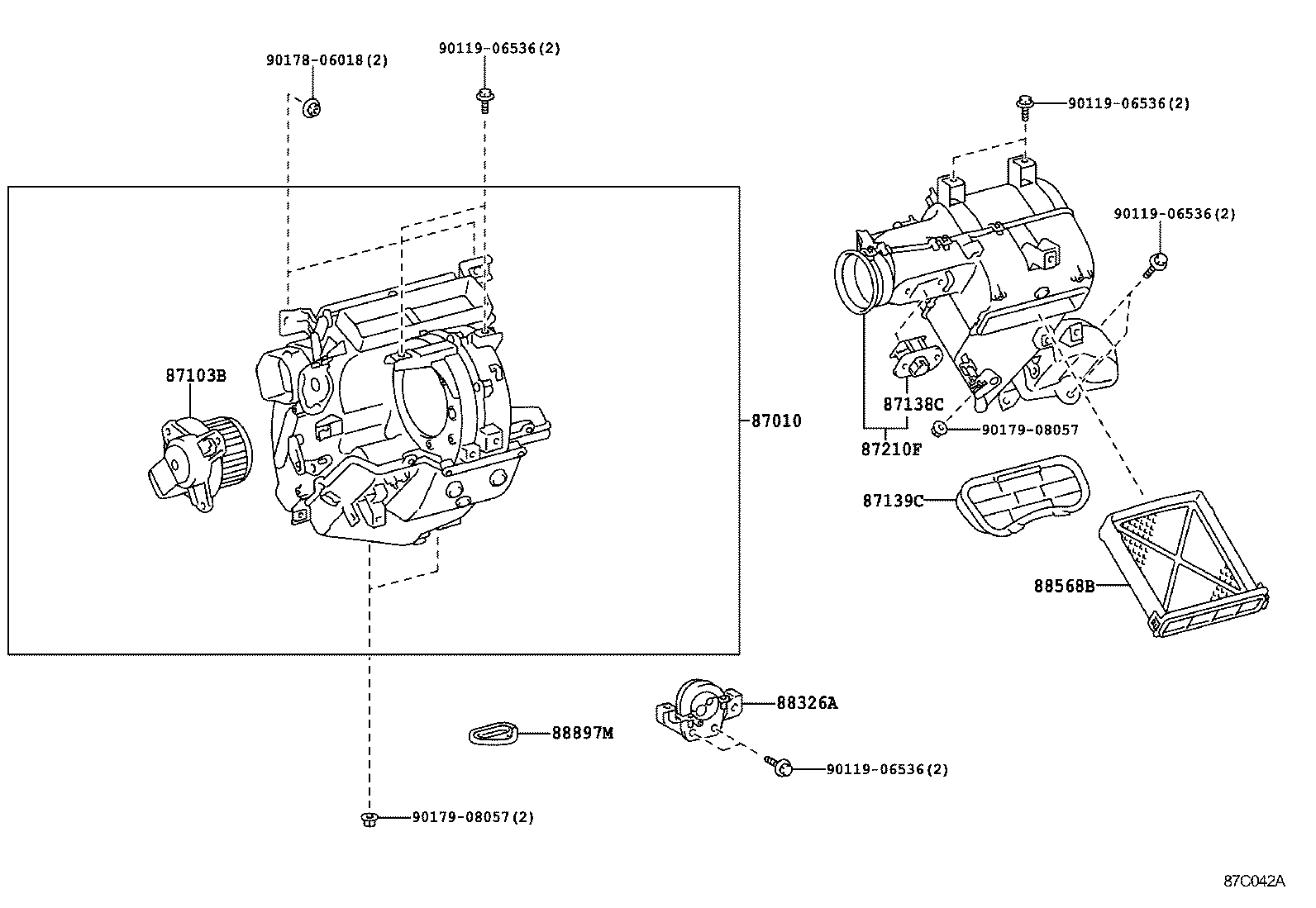

W/O(COOLER)

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37060	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87010-37060	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87010-37080	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87010-37090	WU600,650	07/2011 - 08/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87107-37090	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87138C - RESISTOR, BLOWER
87138-37230	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87139C - FILTER, CLEAN AIR
87441-37020	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87210F - CASE ASSY, AIR DAMPER
87210-37050	WU600,650	07/2011 - 08/2014	1
88326A - PLATE, COVER
88326-37030	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37040	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87128-37070	WU600,650	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
Common parts
90119-06536
90178-06018
90179-08057

(1107-1408)

Click highlighted areas on diagram

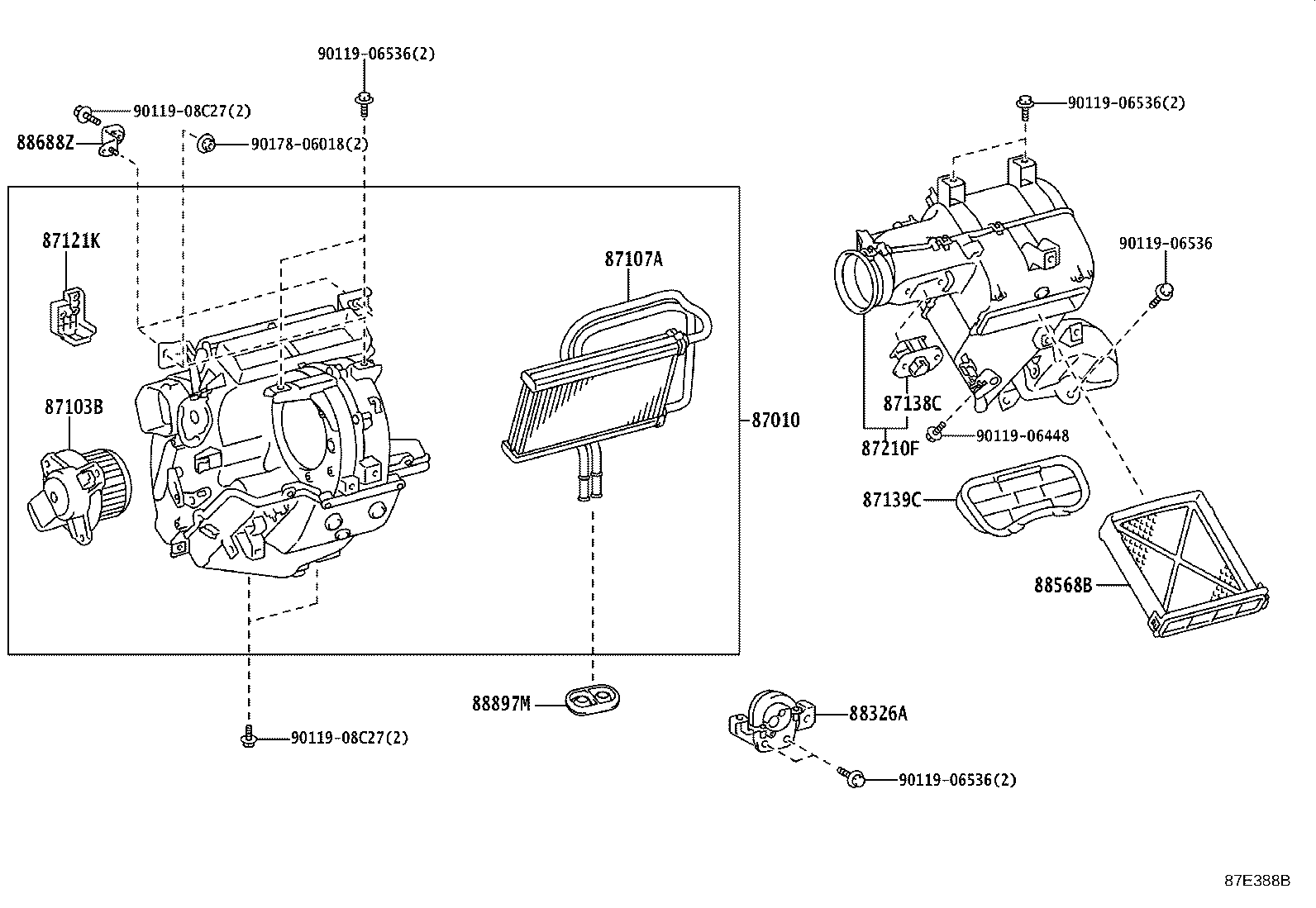

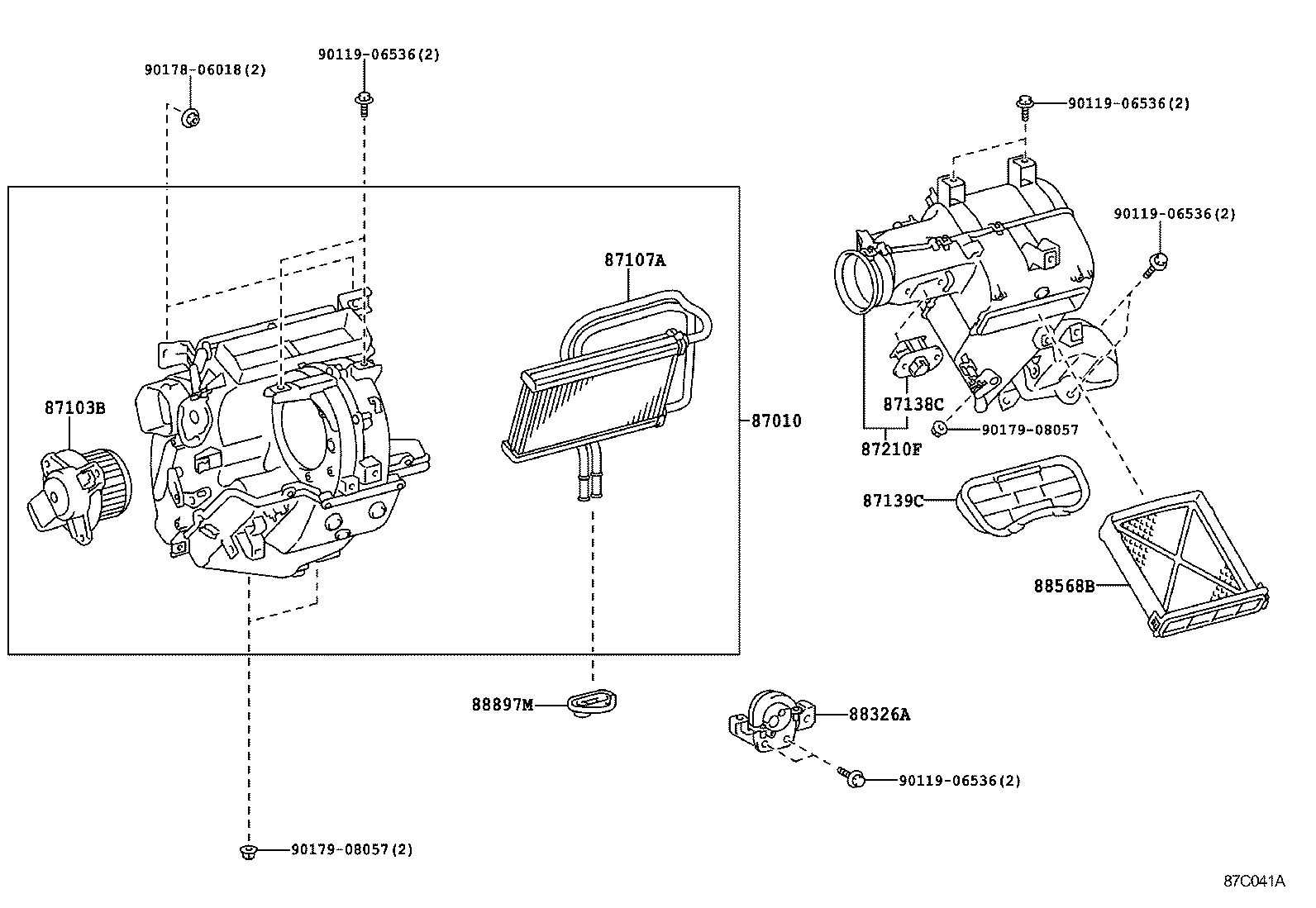

BOOST VENTILATOR

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37060	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87010-37060	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87010-37080	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87010-37090	WU600,650	07/2011 - 08/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87138C - RESISTOR, BLOWER
87138-37230	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87139C - FILTER, CLEAN AIR
87441-37020	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87210F - CASE ASSY, AIR DAMPER
87210-37050	WU600,650	07/2011 - 08/2014	1
88326A - PLATE, COVER
88326-37030	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37040	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87128-37070	WU600,650	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
Common parts
90119-06536
90178-06018
90179-08057

(1408- )

Click highlighted areas on diagram

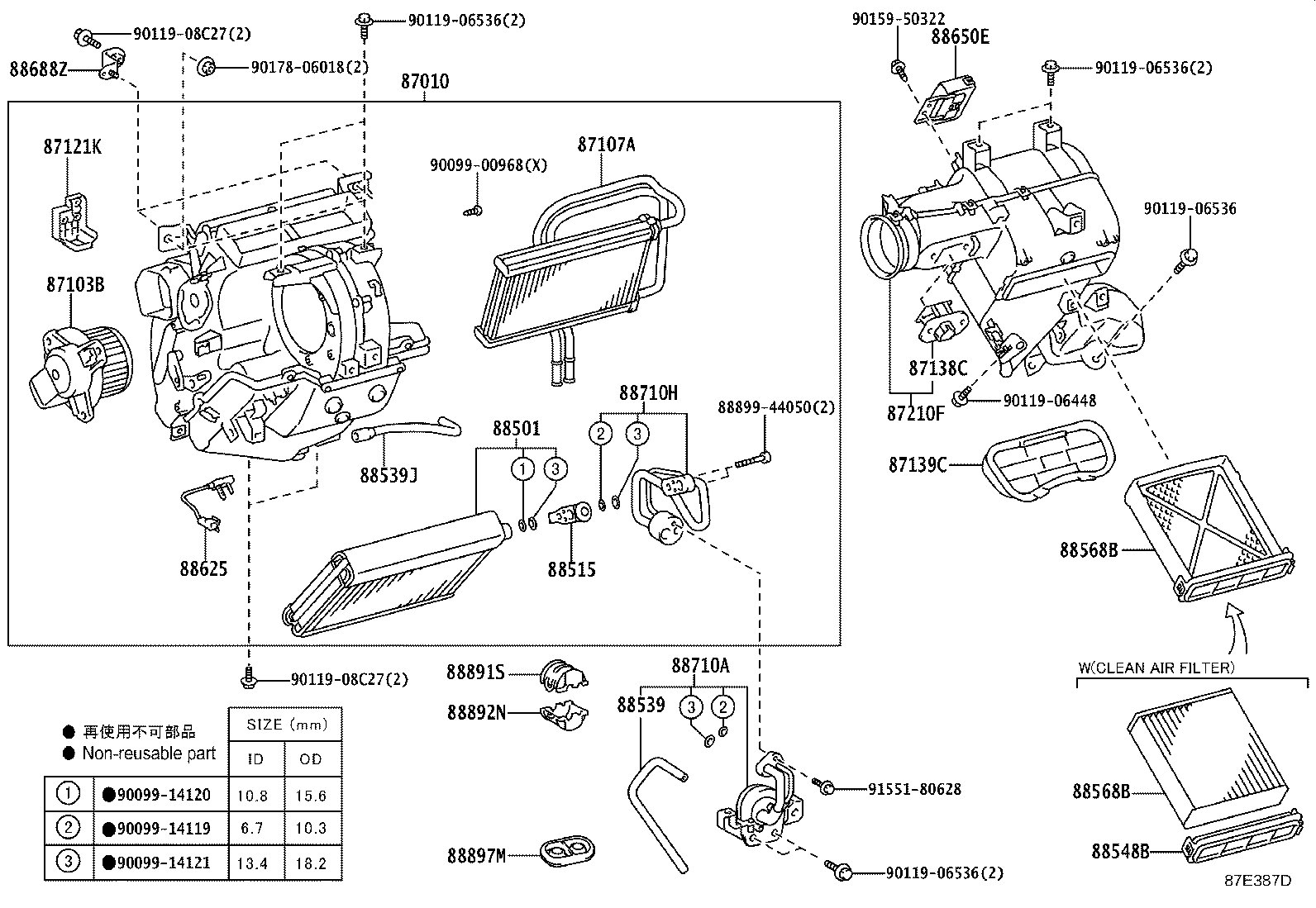

AIR CONDITIONER

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37060	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87010-37060	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87010-37080	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87010-37090	WU600,650	07/2011 - 08/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87107-37090	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87138C - RESISTOR, BLOWER
87138-37230	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87139C - FILTER, CLEAN AIR
87441-37020	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87210F - CASE ASSY, AIR DAMPER
87210-37050	WU600,650	07/2011 - 08/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37120	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88501-37120	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88515 - VALVE, COOLER EXPANSION
88515-12130	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 07/2017	1
88515-12130	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37070	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88539-37070	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88539J - HOSE, DRAIN COOLER
88539-37100	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88539-37100	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88548B - CASE, AIR FILTER
88548-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88625-26090	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-37300	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88650-37300	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37620	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88710-37620	WU600,650 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-37700	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88710-37700	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
88891S - COVER, COOLER, NO.1
88891-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88891-37010	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88892N - COVER, COOLER, NO.2
88892-37020	WU600,650..GCC AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
88892-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37040	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87128-37070	WU600,650	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
Common parts
88899-44050
90099-00968
90099-14119
90099-14120
90099-14121
90119-06448
90119-06536
90119-08C27
90159-50322
90178-06018
91551-80628

(1408- )

Click highlighted areas on diagram

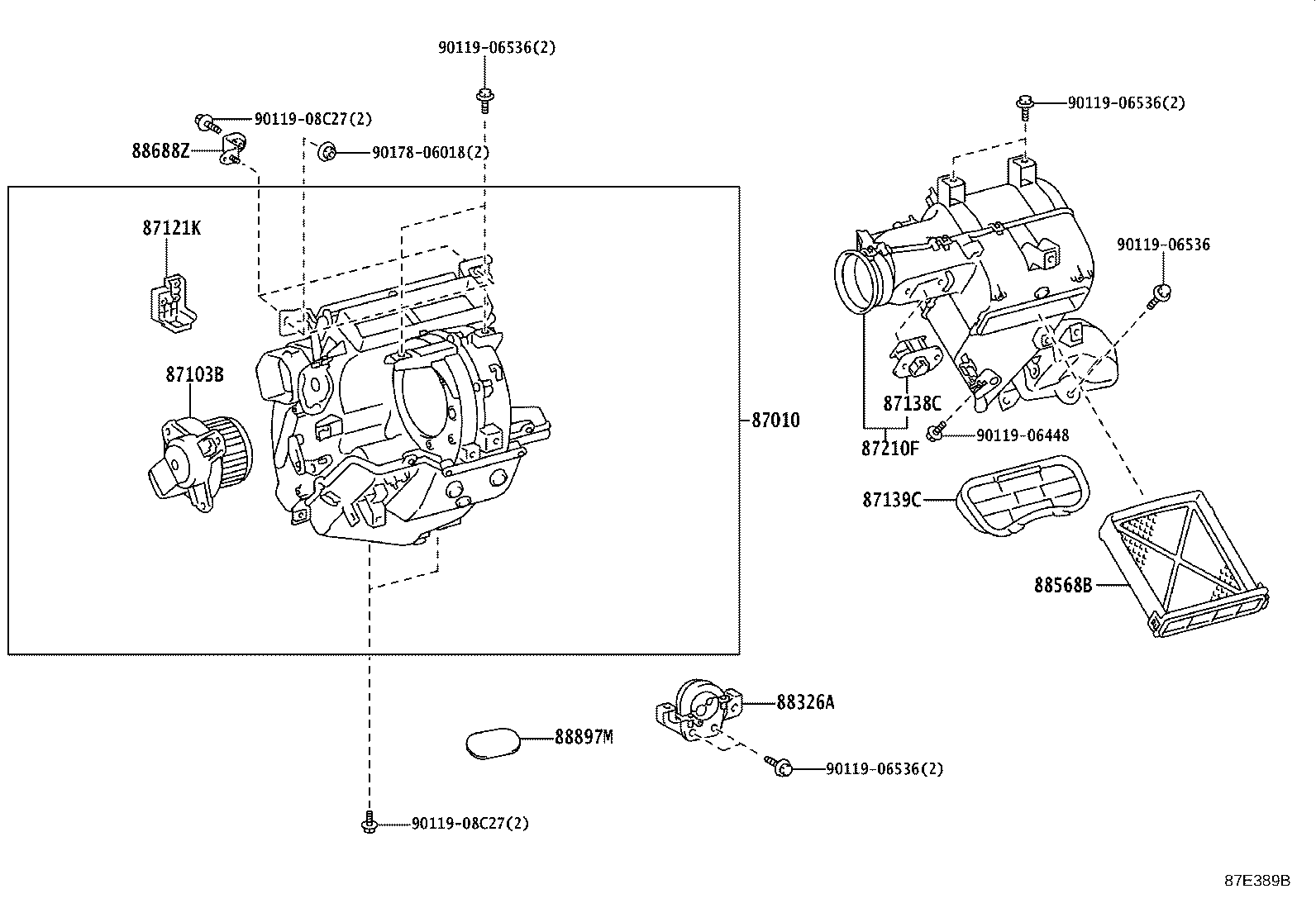

W/O(COOLER)

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37060	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87010-37060	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87010-37080	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87010-37090	WU600,650	07/2011 - 08/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87107-37090	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87107-37090	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87138C - RESISTOR, BLOWER
87138-37230	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87139C - FILTER, CLEAN AIR
87441-37020	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87210F - CASE ASSY, AIR DAMPER
87210-37050	WU600,650	07/2011 - 08/2014	1
88326A - PLATE, COVER
88326-37030	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37040	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87128-37070	WU600,650	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
Common parts
90119-06448
90119-06536
90119-08C27
90178-06018

(1408- )

Click highlighted areas on diagram

BOOST VENTILATOR

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37060	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87010-37060	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87010-37080	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
87010-37090	WU600,650	07/2011 - 08/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87138C - RESISTOR, BLOWER
87138-37230	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87139C - FILTER, CLEAN AIR
87441-37020	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
87210F - CASE ASSY, AIR DAMPER
87210-37050	WU600,650	07/2011 - 08/2014	1
88326A - PLATE, COVER
88326-37030	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568B - FILTER, AIR
88568-37010	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3	07/2011 - 05/2020	1
88568-37020	WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 05/2020	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37040	WU600,650..GCC FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL)	07/2011 - 05/2014	1
87128-37070	WU600,650	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)&AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER	07/2011 - 08/2014	1
87128-37040	WU600,650 FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)	07/2011 - 08/2014	1
Common parts
90119-06448
90119-06536
90119-08C27
90178-06018

WU650L-TKMMJV (2011)

(1107-1408)

(1107-1408)

(1107-1408)

(1408- )

(1408- )

(1408- )

Part Price Details
