Toyota Dyna WU650 MIRROR - JDM Part Detective

WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

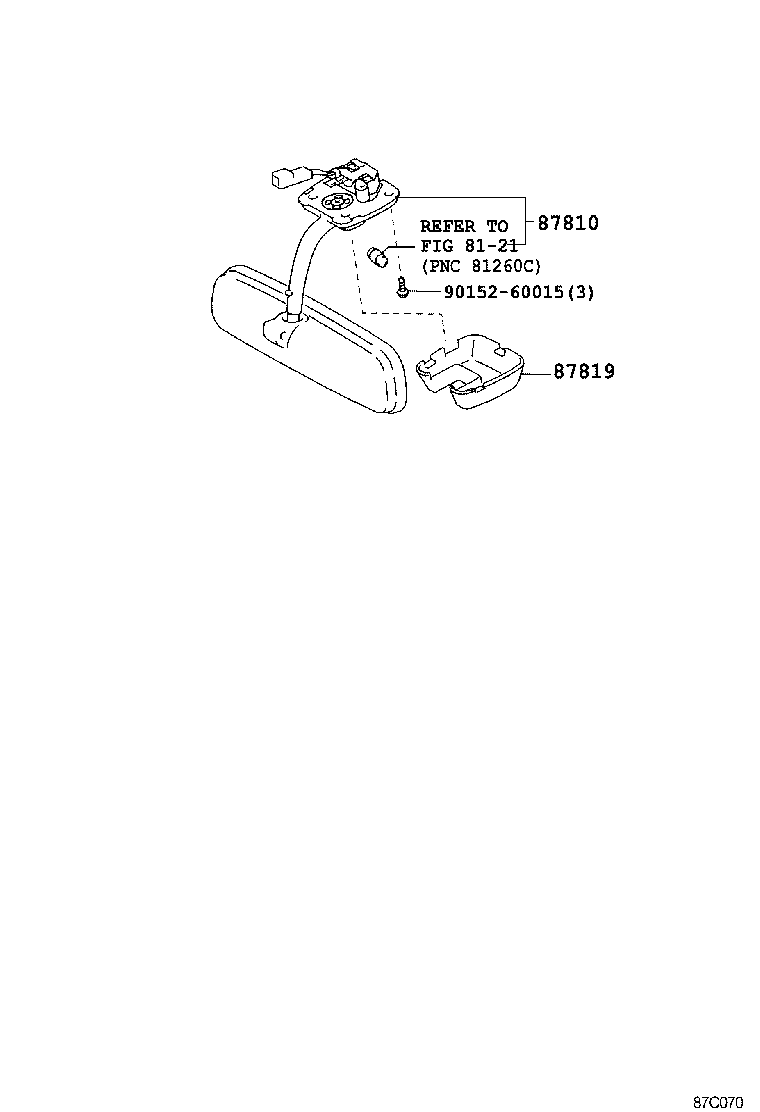

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

INNER REAR VIEW MIRROR

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-37070C0	WU600,650,XZU600,650..GCC BLACK,TRIM1#	07/2011 - 05/2020	1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-25010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
90152-60015
Linked diagrams
8121

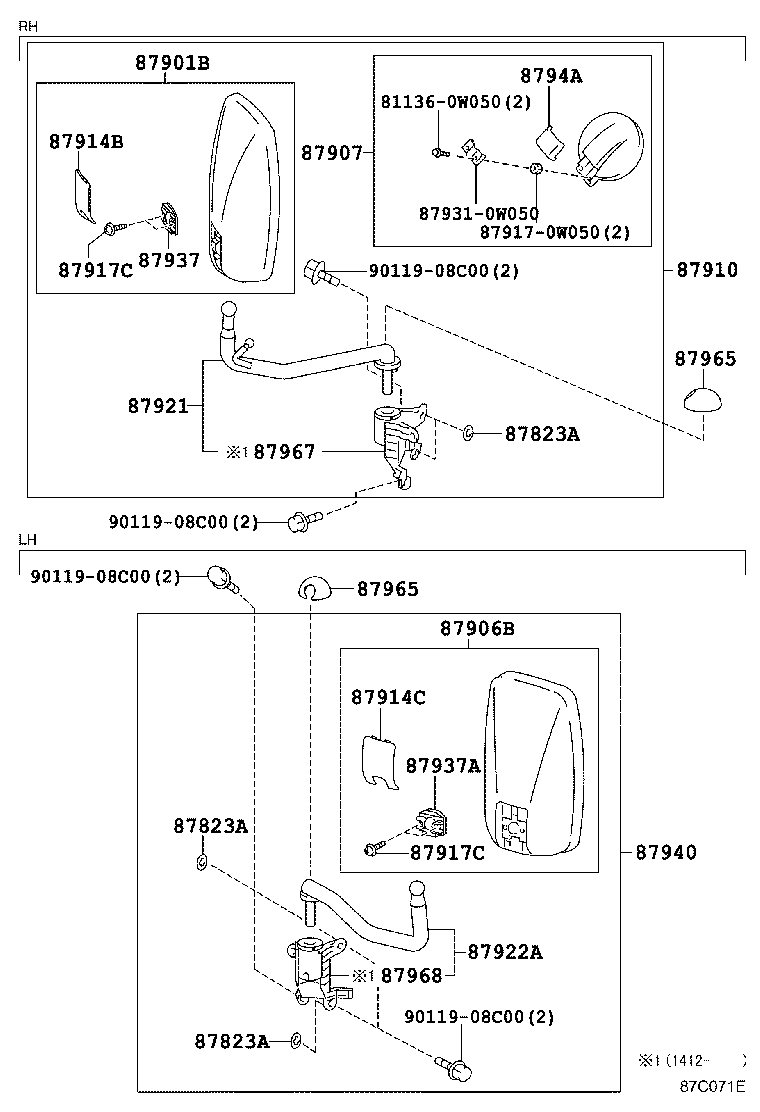

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

OUTER REAR VIEW MIRROR(ASPHERICAL)

Part #	Description	Period	Qty
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87917C - SCREW, OUTER MIRROR
87917-0W160	WU600,650..GCC	07/2011 - 06/2013	12
87917C - SCREW, OUTER MIRROR
87917-0W160	WU600,650..GCC	07/2011 - 06/2013	12
87937 - HOLDER, MIRROR, RH
87919-E0120	WU600,650..GCC	08/2012 - 06/2013	3
87931-0W160	WU600,650..GCC	07/2011 - 08/2012	3
87937A - HOLDER, MIRROR, LH
87931-0W160	WU600,650..GCC	07/2011 - 08/2012	3
87919-E0120	WU600,650..GCC	08/2012 - 06/2013	3
Common parts
81136-0W050
87917-0W050
87931-0W050
90119-08C00

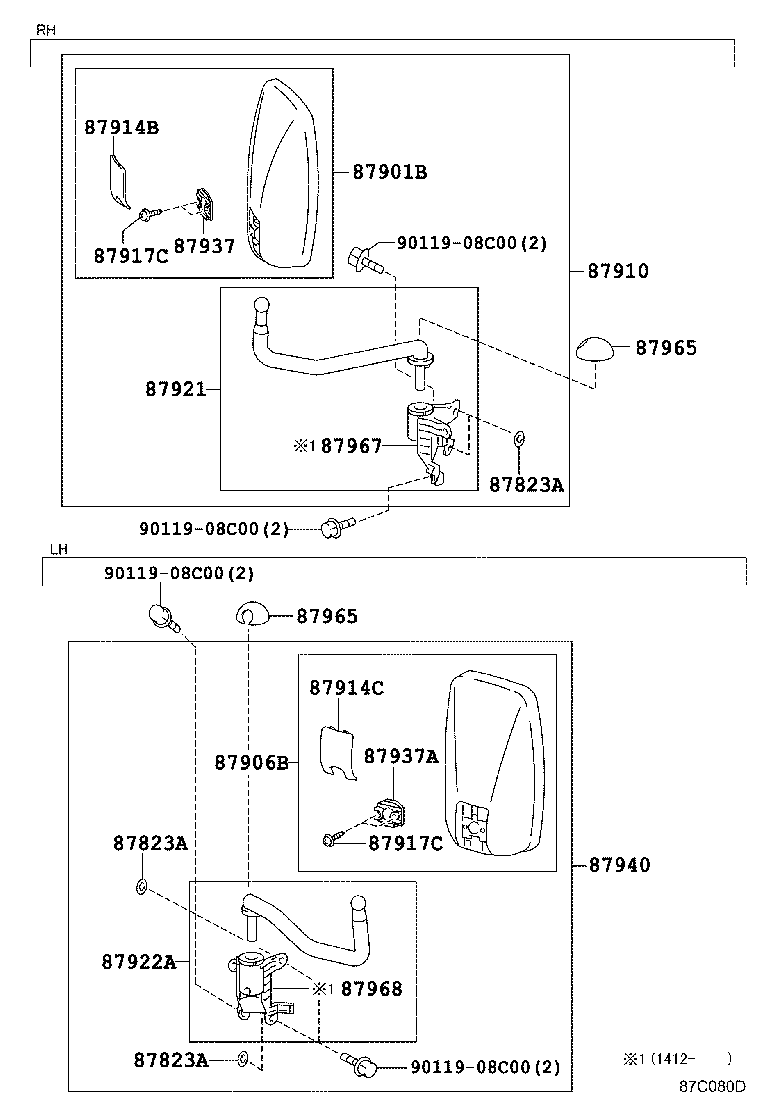

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

OUTER REAR VIEW MIRROR

Part #	Description	Period	Qty
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87917C - SCREW, OUTER MIRROR
87917-0W160	WU600,650..GCC	07/2011 - 06/2013	12
87917C - SCREW, OUTER MIRROR
87917-0W160	WU600,650..GCC	07/2011 - 06/2013	12
87937 - HOLDER, MIRROR, RH
87919-E0120	WU600,650..GCC	08/2012 - 06/2013	3
87931-0W160	WU600,650..GCC	07/2011 - 08/2012	3
87937A - HOLDER, MIRROR, LH
87931-0W160	WU600,650..GCC	07/2011 - 08/2012	3
87919-E0120	WU600,650..GCC	08/2012 - 06/2013	3
Common parts
90119-08C00

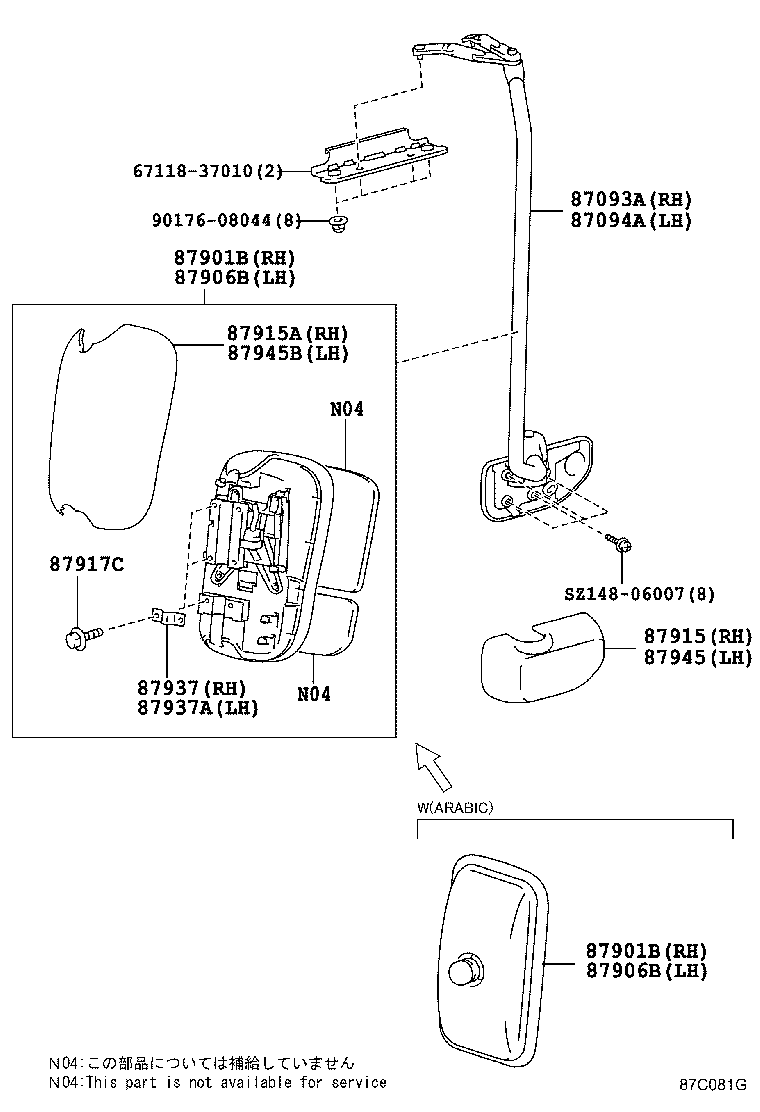

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

OUTER REAR VIEW MIRROR(DOOR MIRROR)

Part #	Description	Period	Qty
87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH
87093-0W140	WU600,650..GCC OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87093-0W130	WU600,650..GCC	07/2011 - 06/2013	1
87093-0W140	WU600,650..GCC	06/2013 - 05/2014	1
87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH
87094-0W140	WU600,650..GCC OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87094-0W140	WU600,650..GCC	06/2013 - 05/2014	1
87094-0W130	WU600,650..GCC	07/2011 - 06/2013	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-0W160	WU600,650..GCC NO PAINT REQ.	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS WITH(ARABIC)	07/2011 - 06/2013	1
87901-0W021	WU600,650..GCC NO PAINT REQ.	06/2013 - 06/2014	1
87915 - COVER, OUTER MIRROR, RH
87915-0W010	WU600,650,XZU600,650..GCC	07/2011 - 05/2020	1
87915A - COVER, OUTER MIRROR, RH
87915-0W050	WU600,650..GCC	07/2011 - 06/2013	1
87917C - SCREW, OUTER MIRROR
87917-0W160	WU600,650..GCC	07/2011 - 06/2013	12
87937 - HOLDER, MIRROR, RH
87919-E0120	WU600,650..GCC	08/2012 - 06/2013	3
87931-0W160	WU600,650..GCC	07/2011 - 08/2012	3
87937A - HOLDER, MIRROR, LH
87931-0W160	WU600,650..GCC	07/2011 - 08/2012	3
87919-E0120	WU600,650..GCC	08/2012 - 06/2013	3
87945 - COVER, OUTER MIRROR, LH
87945-0W010	WU600,650,XZU600,650..GCC	07/2011 - 05/2020	1
87945B - COVER, OUTER MIRROR, LH
87915-0W050	WU600,650..GCC	07/2011 - 06/2013	1
Common parts
67118-37010
90176-08044
SZ148-06007
