WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GCC

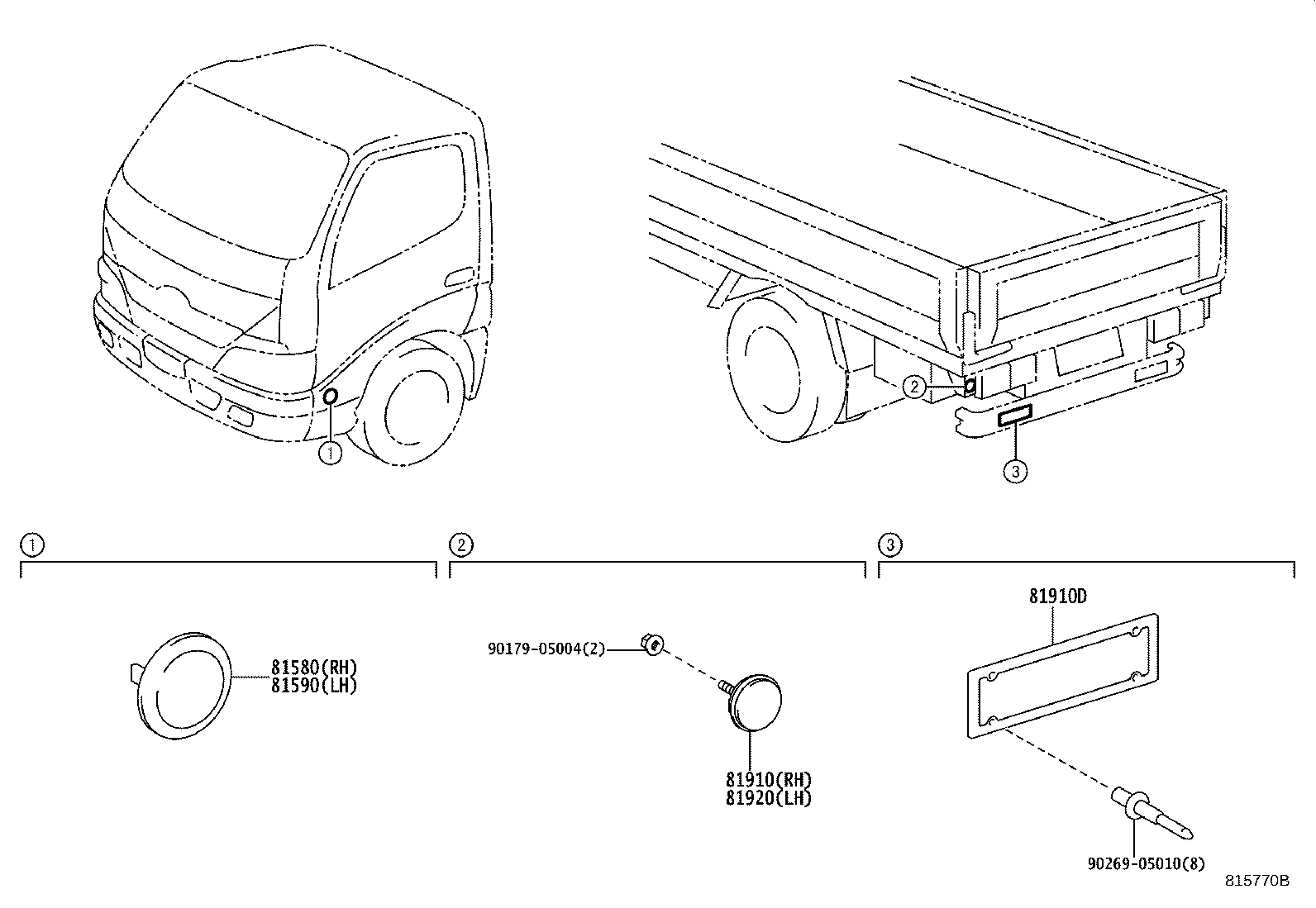

Click highlighted areas on diagram

diagram 81580 81590 81910 81910D 81920 9017905004 9026905010
Part # Description Qty Price
81580 - REFLECTOR ASSY, REFLEX SIDE, RH
81580-37031

WU650,XZU650..GCC

 1
81590 - REFLECTOR ASSY, REFLEX SIDE, LH
81590-37031

WU650,XZU650..GCC

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

WU650,XZU650..GCC

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

WU650,XZU650..GCC

 1
Common parts
90179-05004
90269-05010
