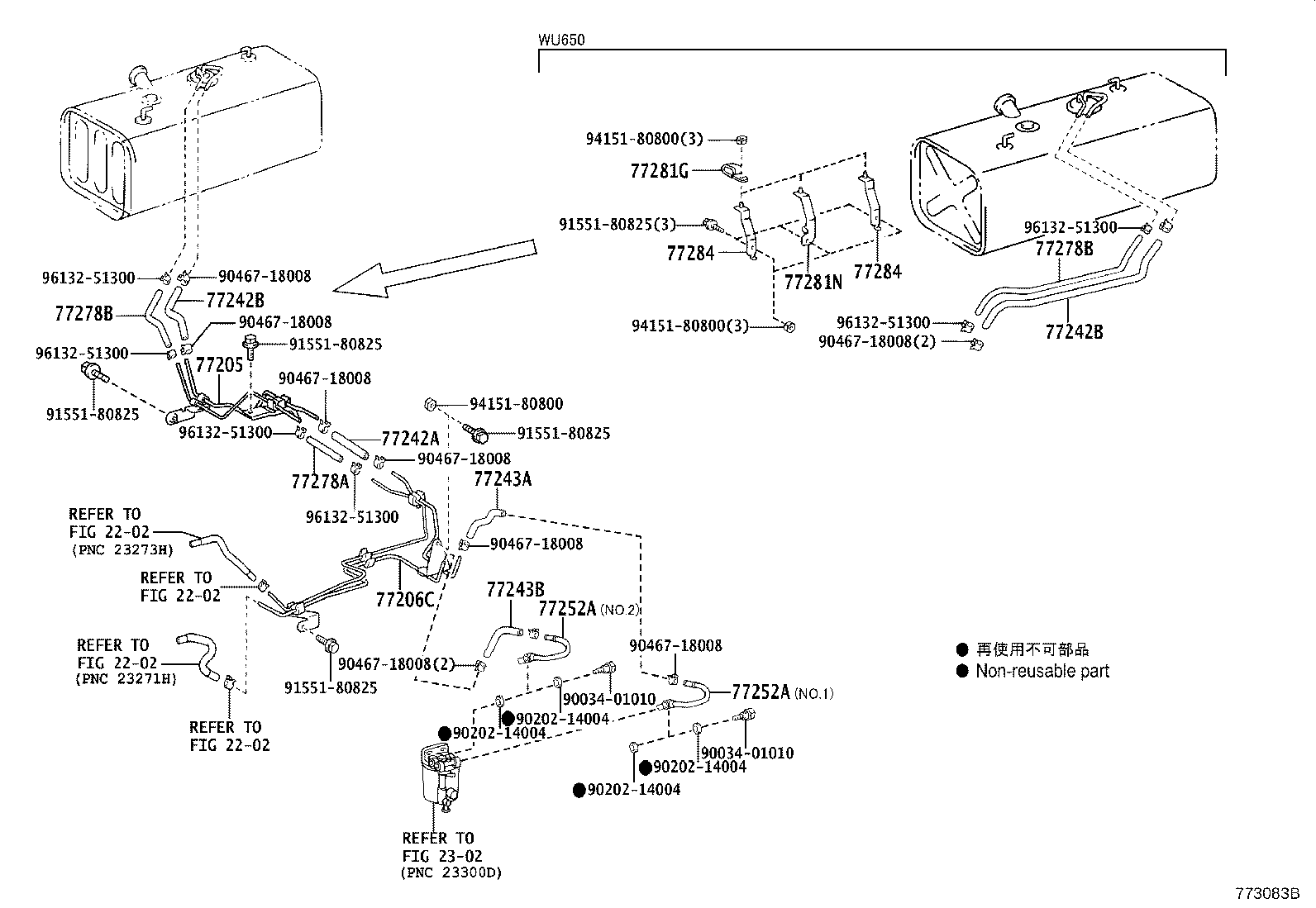

Toyota Dyna WU650 FUEL TANK & TUBE

Part #	Description	Period	Qty
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37C90	WU650,XZU650	07/2011 - 05/2020	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37K00	WU600,650	07/2011 - 05/2020	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95337-12016	XZU600..GCC;WU600,650,XZU650 L=160	07/2011 - 05/2020	1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95337-12100	WU650,XZU650 L=1000	07/2011 - 05/2020	1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95337-12100	WU650,XZU650 L=1000	07/2011 - 05/2020	1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95337-12024	WU600,650 L=240	07/2011 - 05/2020	1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95337-12017	WU600,650 L=170	07/2011 - 05/2020	1
77252A - TUBE, FUEL MAIN, NO.2
77252-37750	WU600,650 NO.1:REFER ILLUST.	07/2011 - 05/2020	1
77252-37760	WU600,650 NO.2:REFER ILLUST.	07/2011 - 05/2020	1
77252A - TUBE, FUEL MAIN, NO.2
77252-37750	WU600,650 NO.1:REFER ILLUST.	07/2011 - 05/2020	1
77252-37760	WU600,650 NO.2:REFER ILLUST.	07/2011 - 05/2020	1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95337-08020	XZU600..GCC;WU600,650,XZU650 L=160	07/2011 - 05/2020	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08100	WU650,XZU650 L=1000	07/2011 - 05/2020	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08100	WU650,XZU650 L=1000	07/2011 - 05/2020	1
77281G - CLAMP, FUEL HOSE
90034-61051	WU650,XZU650	07/2011 - 05/2020	3
77281N - CLAMP, FUEL HOSE
77281-37530	WU650,XZU650	07/2011 - 05/2020	1
77284 - CLAMP, FUEL TUBE
77281-37430	WU650,XZU650	07/2011 - 05/2020	2
77284 - CLAMP, FUEL TUBE
77281-37430	WU650,XZU650	07/2011 - 05/2020	2
Common parts
90034-01010
90202-14004
90467-18008
91551-80825
94151-80800
96132-51300
Linked diagrams
2202
2302

WU650L-TKMMJV (2011)

ILLUST NO. 3 OF 3(1107- )WU600,650
