WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

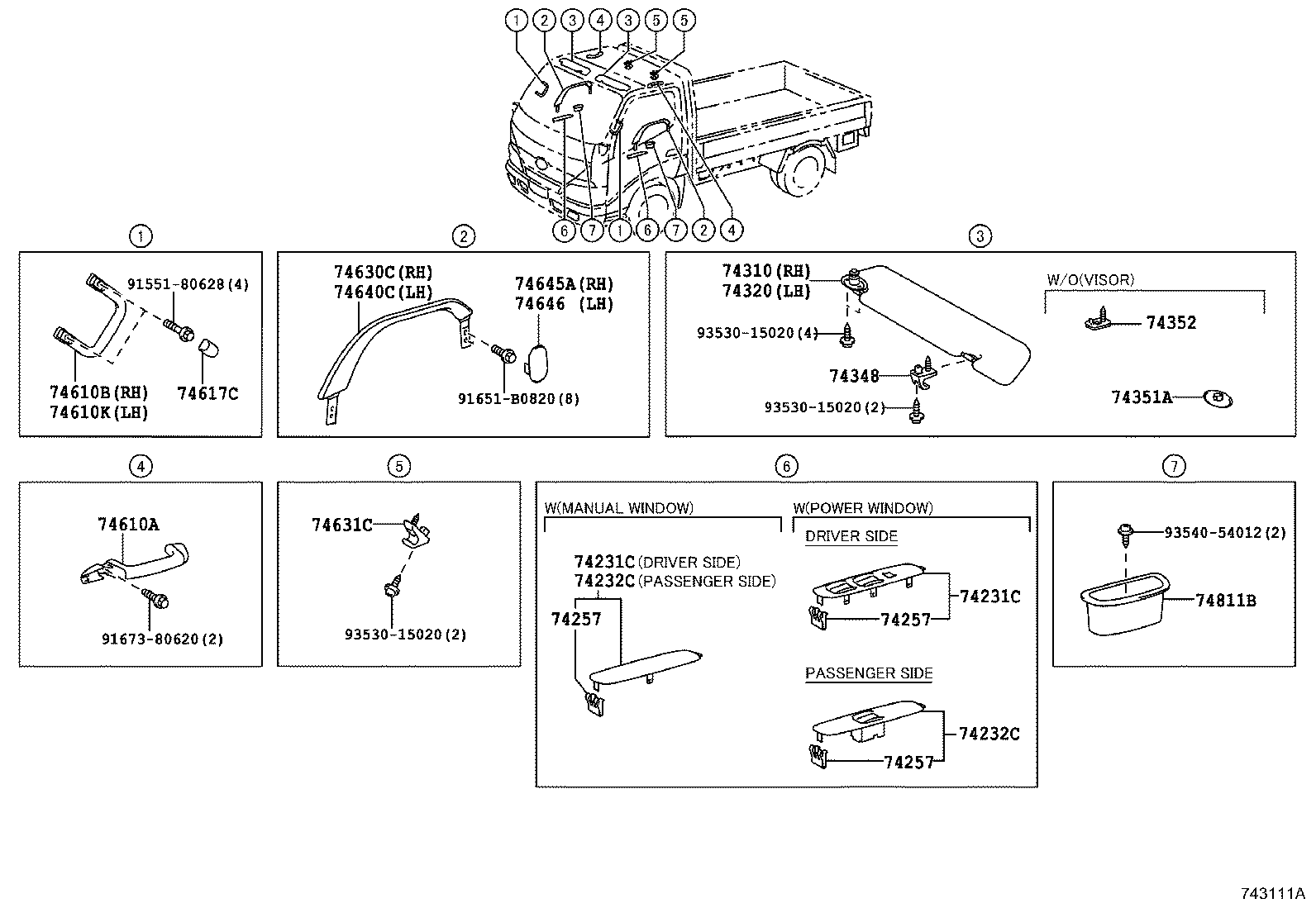

Click highlighted areas on diagram

diagram 74231C 74231C 74232C 74232C 74257 74257 74257 74310 74320 74348 74351A 74352 74610A 74610B 74610K 74617C 74630C 74631C 74640C 74645A 74646 74811B 9155180628 91651B0820 9167380620 9353015020 9353015020 9353015020 9354054012
Part # Description Qty Price
74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74231-37020B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74231-37012B1

XZU600..GCC;WU600,650,XZU650

POWER WINDOW-WITH,GRAY,TRIM1#

 1
74201-37010

XZU600..GCC;WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650,XZU650..WT

POWER WINDOW-WITH&INSTRUMENT PANEL CENTER CLUSTER-CUSTOM PANEL(SILVER PAINTED)

 1
74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74231-37020B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74231-37012B1

XZU600..GCC;WU600,650,XZU650

POWER WINDOW-WITH,GRAY,TRIM1#

 1
74201-37010

XZU600..GCC;WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650,XZU650..WT

POWER WINDOW-WITH&INSTRUMENT PANEL CENTER CLUSTER-CUSTOM PANEL(SILVER PAINTED)

 1
74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74202-37010

XZU600..GCC;WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650,XZU650..WT

POWER WINDOW-WITH&INSTRUMENT PANEL CENTER CLUSTER-CUSTOM PANEL(SILVER PAINTED)

 1
74231-37020B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74232-37010B1

XZU600..GCC;WU600,650,XZU650

POWER WINDOW-WITH,GRAY,TRIM1#

 1
74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74202-37010

XZU600..GCC;WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650,XZU650..WT

POWER WINDOW-WITH&INSTRUMENT PANEL CENTER CLUSTER-CUSTOM PANEL(SILVER PAINTED)

 1
74231-37020B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74232-37010B1

XZU600..GCC;WU600,650,XZU650

POWER WINDOW-WITH,GRAY,TRIM1#

 1
74257 - SPRING, ARMREST, NO.1
74257-37010

XZU600..GCC;WU600,650,XZU650

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XZU600..GCC;WU600,650,XZU650

 2
74257 - SPRING, ARMREST, NO.1
74257-37010

XZU600..GCC;WU600,650,XZU650

 2
74310 - VISOR ASSY, RH
74310-37A10B0

WU600,650,XZU600,650..GCC

GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-37480B0

WU600,650

GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-22020B9

XZU600..GCC;WU600,650,XZU650

MD.CHARCOAL,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-48010B0

XZU600..GCC;WU600,650,XZU650

ASSIST GRIP-FRONT(DRIVER:1 PASSENGER:2),GRAY,TRIM1#

 1
74610B - GRIP ASSY, ASSIST, NO.2 RH
74610-37040B0

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74610K - GRIP ASSY, ASSIST, NO.2 LH
74610-37040B0

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74617C - PLUG, ASSIST GRIP
74617-37010B0

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 4
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-37020C0

XZU600..GCC;WU600,650,XZU650

BLACK,TRIM1#

 1
74631C - HOOK, COAT
74348-22020B9

XZU600..GCC;WU600,650,XZU650

MD.CHARCOAL,TRIM1#

 2
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-37010C0

XZU600..GCC;WU600,650,XZU650

BLACK,TRIM1#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-37010B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-37010B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
74811B - HANDLE, DOOR PULL
74811-95J04B3

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 2
Common parts
91551-80628
91651-B0820
91673-80620
93530-15020
93540-54012

(7708- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74603 74603 74603 74603 74604 74604 74604 74604 74613 74613 74613 74615A 74810 74810 74810 9015960085 9015960085 9015960085 9015960085 9015960085 9015960085 9015960188 9018906018 9321915014 9323915014 9324016012 9324056012 9331116025 9351056020
Part # Description Qty Price
Common parts
90159-60085
90159-60188
90189-06018
93219-15014
93239-15014
93240-16012
93240-56012
93311-16025
93510-56020
