WU650L-TKMMJV (2011)
Toyota Dyna
Production
Jul 2011
-
May 2015
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )CBU

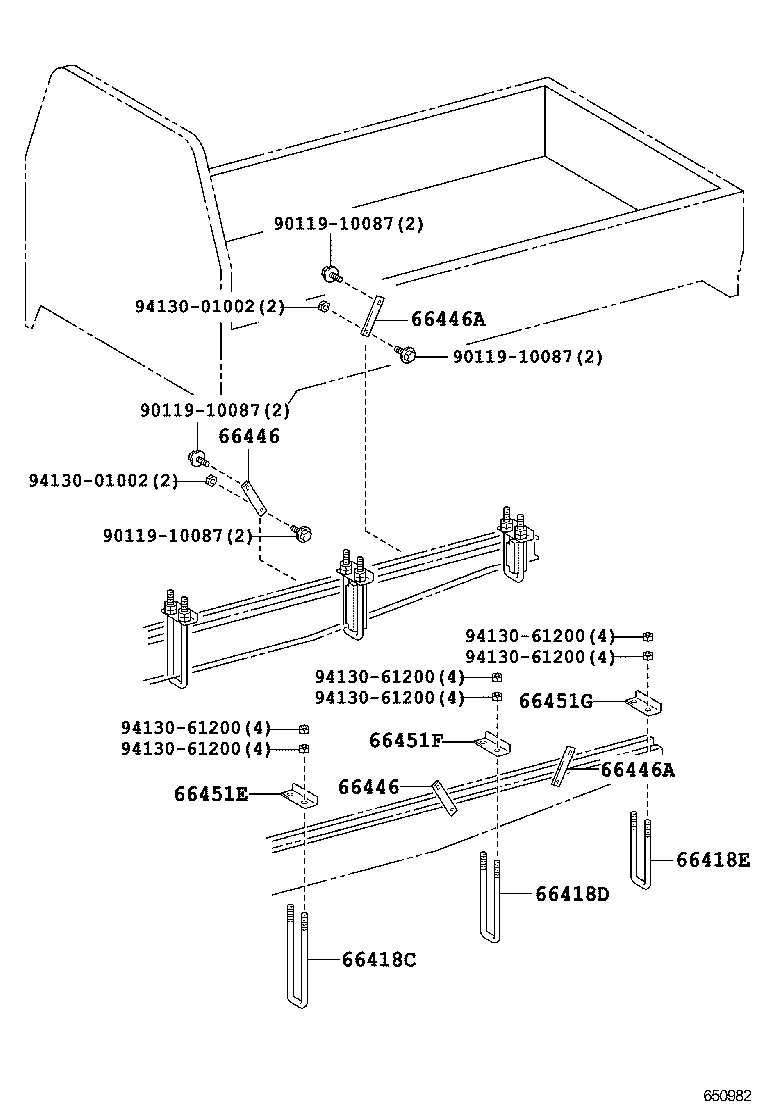

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418C - BOLT, U, FRONT | ||||
| 90117-12039 |
WU600,650..CBU L=338 |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90117-12039 |
WU650..CBU L=338 |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90117-12044 |
WU600,650..CBU L=274 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
WU650..CBU |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
WU650..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37110 |
WU650..CBU |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37110 |
WU650..CBU |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
WU600,650..CBU |
2 | ||
| 66451F - PLATE, U BOLT, CENTER | ||||
| 66451-37030 |
WU650..CBU |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
WU600,650..CBU |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-61200 | ||||
