6553 - REAR BODY GUARD FRAME & TAIL GATE

WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )WT..CBU

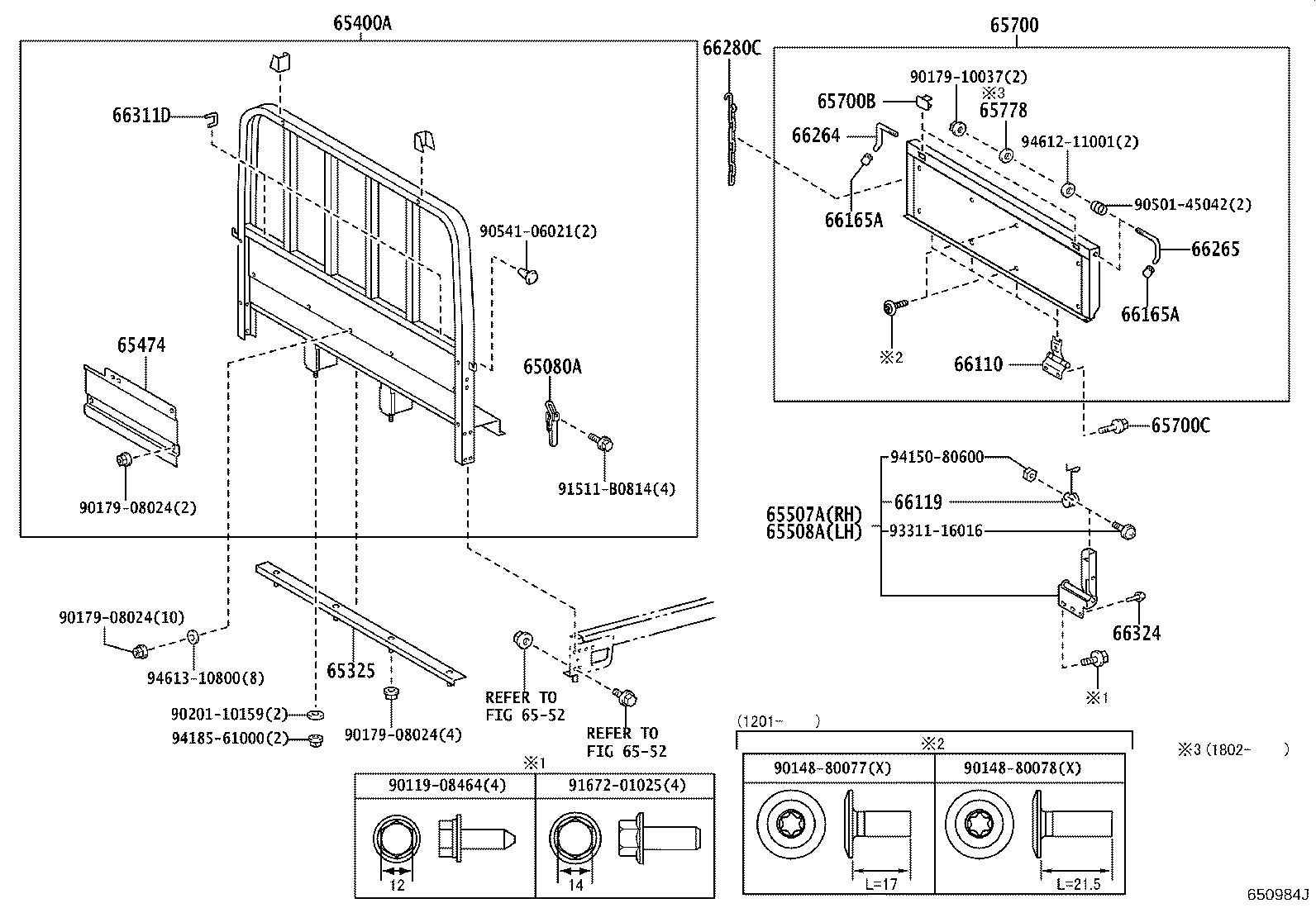

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	WU600,650..CBU	07/2011 - 05/2020	2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37040	WU600,650..WT..CBU	07/2011 - 04/2019	1
65400A - GUARD ASSY, REAR BODY
65400-37P70	WU600,650..WT..CBU	07/2011 - 05/2020	1
65474 - INSULATOR, HEADER
65474-37150	WU600,650..CBU	07/2011 - 05/2020	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37210	WU600,650..WT..CBU	07/2011 - 12/2011	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	WU600,650..CBU	07/2011 - 05/2020	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	WU600,650..WT..CBU	07/2011 - 04/2019	8
66110 - HINGE ASSY, TAIL GATE
66110-37020	WU600,650..WT..CBU	07/2011 - 12/2011	4
66165A - CAP, GATE LATCH HANDLE
66165-87402	WU600,650..CBU	07/2011 - 05/2020	2
66165A - CAP, GATE LATCH HANDLE
66165-87402	WU600,650..CBU	07/2011 - 05/2020	2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010	WU600,650..CBU	07/2011 - 05/2020	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010	WU600,650..CBU	07/2011 - 05/2020	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	WU600,650..CBU	07/2011 - 03/2014	2
66311D - HOOK, ROPE
66312-37030	WU600,650..CBU	07/2011 - 05/2020	2
Common parts
90119-08464
90148-80077
90148-80078
90179-08024
90179-10037
90201-10159
90501-45042
90541-06021
91511-B0814
91672-01025
93311-16016
94150-80600
94185-61000
94612-11001
94613-10800
Linked diagrams
6552
