WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

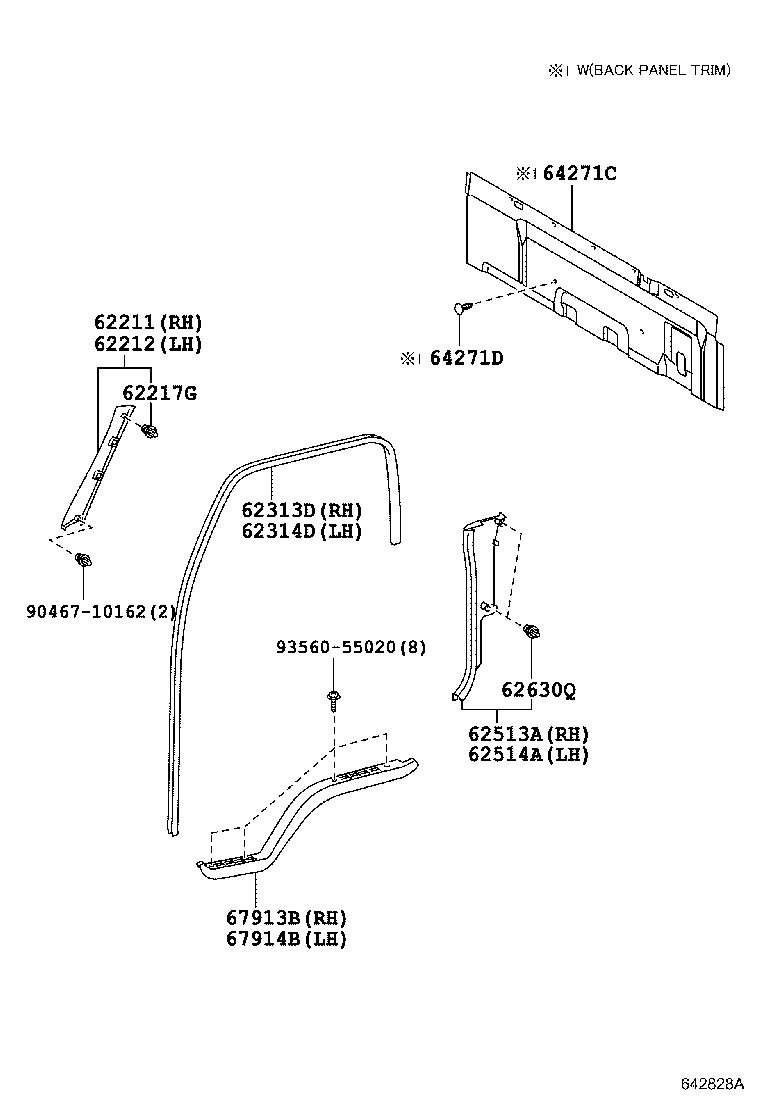

Click highlighted areas on diagram

diagram 62211 62212 62217G 62313D 62314D 62513A 62514A 62630Q 64271C 64271D 67913B 67914B 9046710162 9356055020
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-37010B0

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-37010B0

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
62217G - CLIP, FRONT PILLAR GARNISH
90467-10188

XZU600..GCC;WU600,650,XZU650

 2
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37060B1

WU600,650

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-37020B1

WU600,650

GRAY,TRIM1#

 1
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37011B1

WU600,650

GRAY,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37011B1

WU600,650

GRAY,TRIM1#

 1
62630Q - CLIP (FOR QUARTER TRIM)
90467-10161

XZU600..GCC;WU600,650,XZU650

 4
64271C - TRIM, BACK PANEL
64271-37321B1

XZU600..GCC;WU600,650,XZU650

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 1
64271D - CLIP(FOR BACK PANEL TRIM)
90467-06048P3

XZU600..GCC;WU600,650,XZU650

BACK PANEL TRIM-WITH(LOWER ONLY),GRAY,TRIM1#

 7
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-37010B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-37010B1

XZU600..GCC;WU600,650,XZU650

GRAY,TRIM1#

 1
Common parts
90467-10162
93560-55020

(7708- )

Click highlighted areas on diagram

diagram 58580A 58580A 58590A 58590A 62313 62313 62314 62314 62315 62316 62372 62372 62511 62511 62512 6777120022 9015940086 9015940086 9018904006 9018904006
Part # Description Qty Price
Common parts
67771-20022
90159-40086
90189-04006
