WU650L-TKMMJV (2011)
Toyota Dyna
Production
Jul 2011
-
May 2015
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

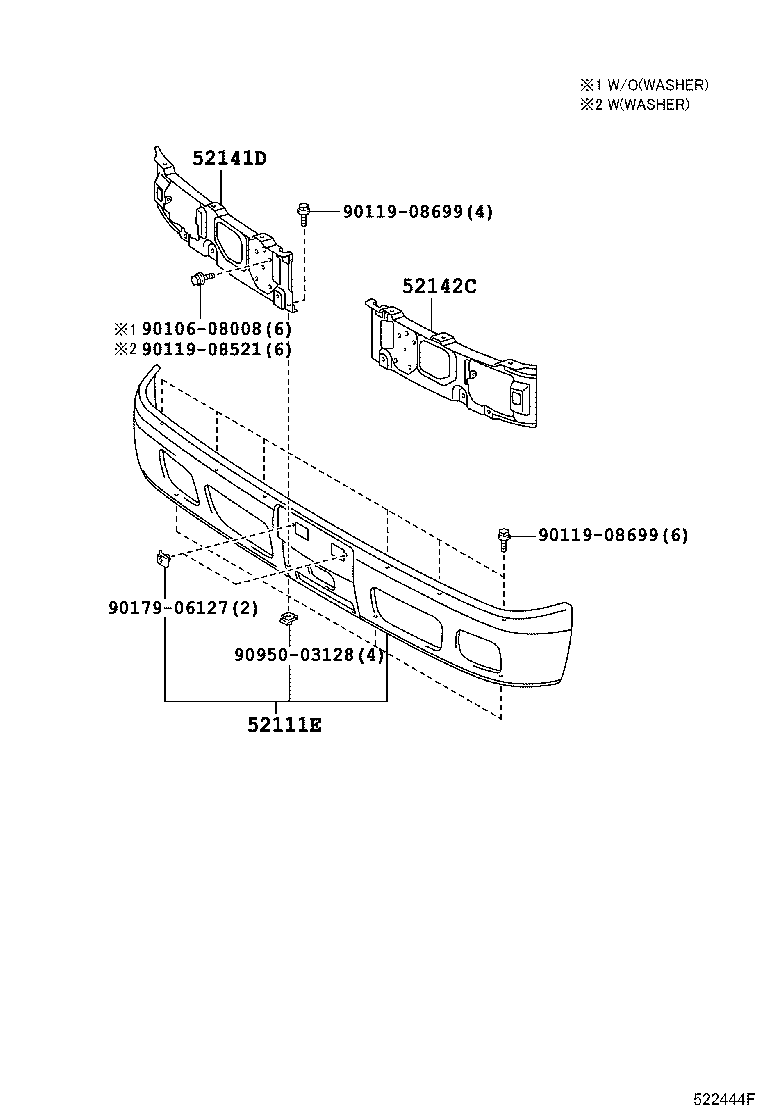

ILLUST NO. 1 OF 3(1107-1701)
Click highlighted areas on diagram
RESIN BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-37300 |
WU600,650 NO PAINT REQ. |
1 | ||
| 52101-37916 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52101-37181 |
WU600,650..GCC..CBU;WU600..ST..GCC..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-37120 |
WU600,650..GCC..CBU;WU600..ST..GCC..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52011-37033 |
WU600,650 |
1 | ||
| 52141-37120 |
WU600,650..GCC..CBU;WU600..ST..GCC..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-37100 |
WU600,650..GCC..CBU;WU600..ST..GCC..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52012-37032 |
WU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GCC..CBU;WU600..ST..GCC..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| Common parts | ||||
| 90106-08008 | ||||
| 90119-08521 | ||||
| 90119-08699 | ||||
| 90179-06127 | ||||
| 90950-03128 | ||||

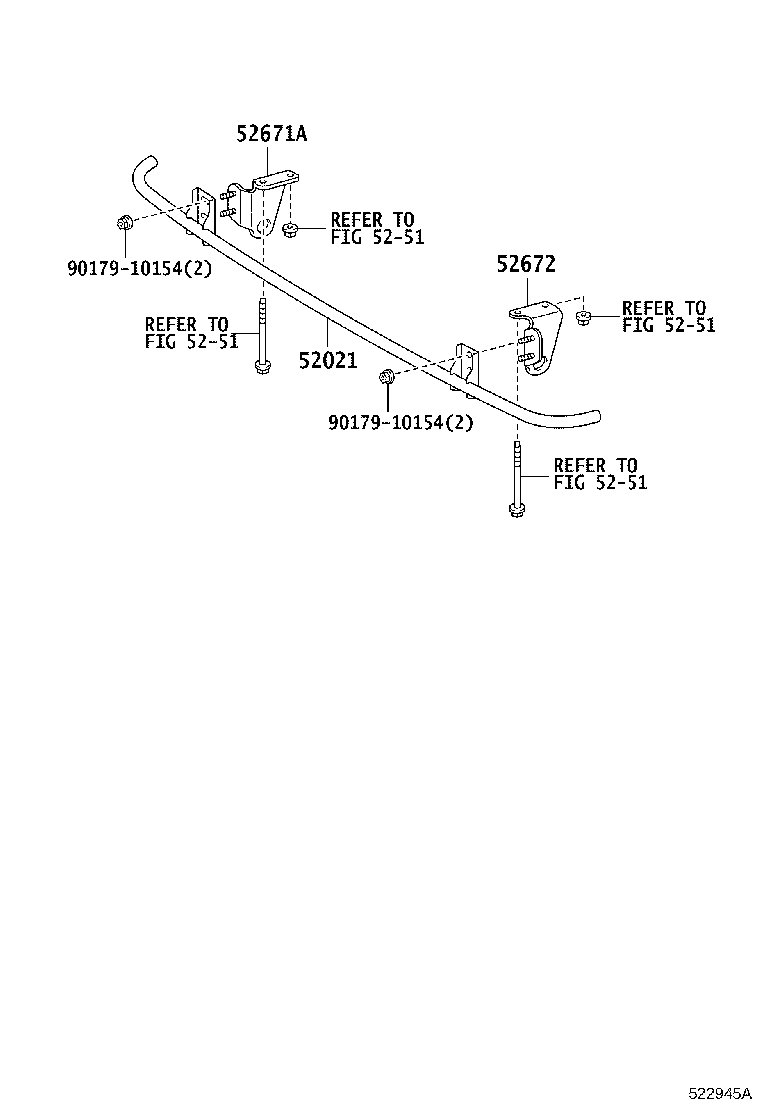

ILLUST NO. 3 OF 3(1405- )GCC
Click highlighted areas on diagram
BUMPER REINFORCEMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10154 | ||||
| Linked diagrams | ||||
| 5251 | ||||
