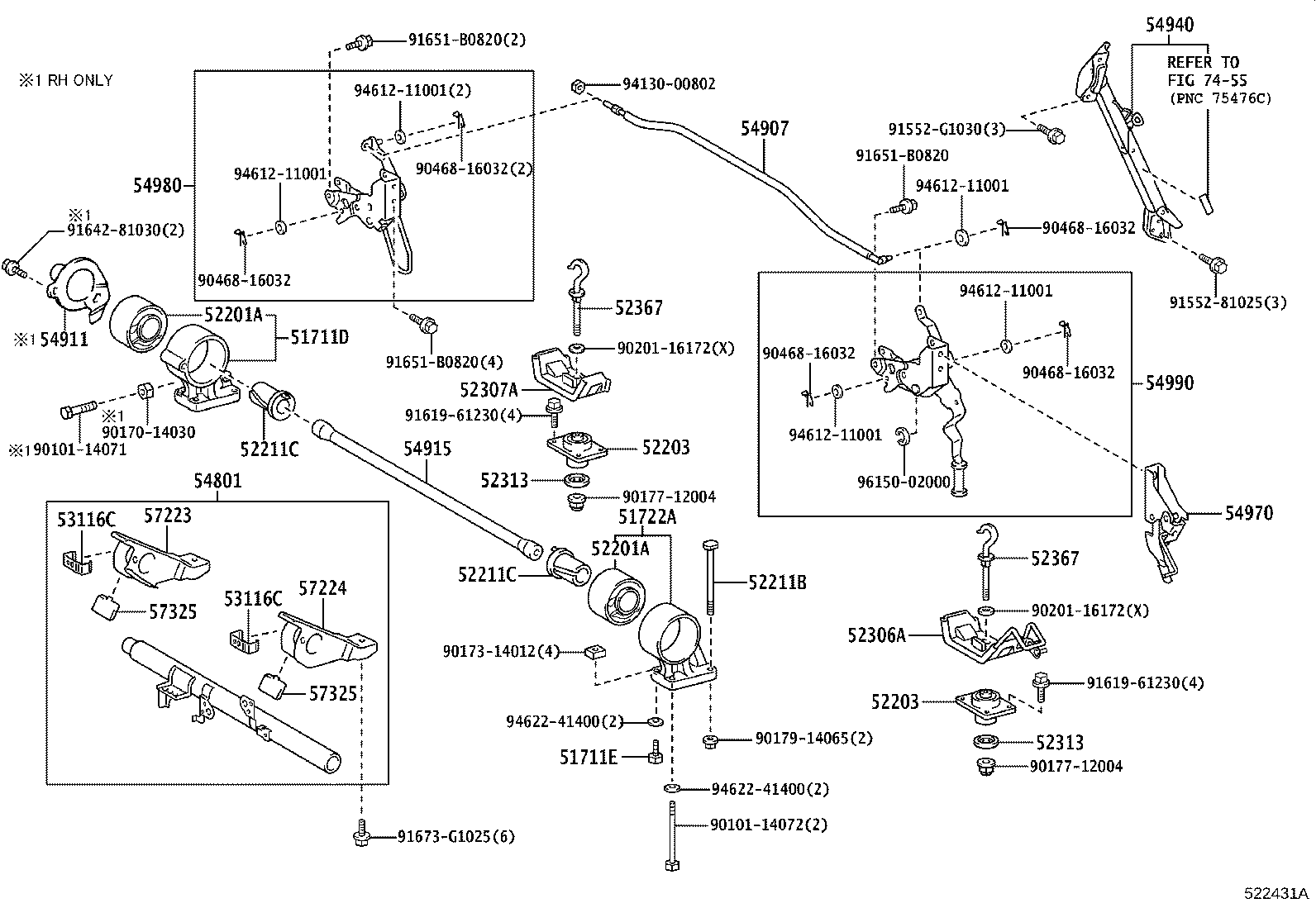

Toyota Dyna WU650 CAB MOUNTING & BODY MOUNTING

Part #	Description	Period	Qty
51711D - BRACKET, CAB FRONT MOUNTING
51701-37300	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET)
90101-14075	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
51702-37340	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37100	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37100	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52203 - CUSHION SUB-ASSY, REAR FRAME
52203-37060	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52203 - CUSHION SUB-ASSY, REAR FRAME
52203-37060	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90109-14013	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52306-37023	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52307-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
52313 - STOPPER, CAB REAR MOUNTING REBOUND
52313-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52313 - STOPPER, CAB REAR MOUNTING REBOUND
52313-37040	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52367 - HOOK, CAB REAR MOUNTING
52367-37060	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
52367 - HOOK, CAB REAR MOUNTING
52367-37060	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
54801 - TUBE SUB-ASSY, TILT CAB, NO.1
54801-37250	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
54907-37050	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
54911 - ARM, TILT CAB SPRING SUPPORT, NO.1
54911-37040	WU600,650,XZU600,650	07/2011 - 04/2019	1
54915 - SPRING, TILT CAB, NO.1
54915-37100	WU600,650,XZU600,650	07/2011 - 04/2019	1
54940 - STAY ASSY, TILT CAB
54940-37300	WU600,650	07/2011 - 04/2012	1
54970 - LATCH ASSY, TILT CAB STOPPER
54970-37014	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
54980 - LOCK ASSY, TILT CAB MOUNTING, RH
54980-37011	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
54990 - LOCK ASSY, TILT CAB MOUNTING, LH
54990-37023	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
57223 - BRACKET, FRONT MOUNTING, RH
57223-37011	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
57224 - BRACKET, FRONT MOUNTING, LH
57224-37011	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
57325 - REINFORCEMENT, FRONT MOUNTING
57325-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
57325 - REINFORCEMENT, FRONT MOUNTING
57325-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
Common parts
90101-14071
90101-14072
90170-14030
90173-14012
90177-12004
90179-14065
90201-16172
90468-16032
91552-81025
91552-G1030
91619-61230
91642-81030
91651-B0820
91673-G1025
94130-00802
94612-11001
94622-41400
96150-02000
Linked diagrams
7455

Part #	Description	Period	Qty	Price
Common parts
90101-10149
90201-10159
90201-10287
90201-16172
90467-07050
91111-71025
91111-71030
91161-51230
91161-71230
91161-71235
91611-40612
91651-60825
94110-40800
94110-41000
94110-51000
94115-51200
94512-01000
94512-01200
94612-11200
94613-11200

WU650L-TKMMJV (2011)

(1107- )

(7708- )

Part Price Details
