WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )WT

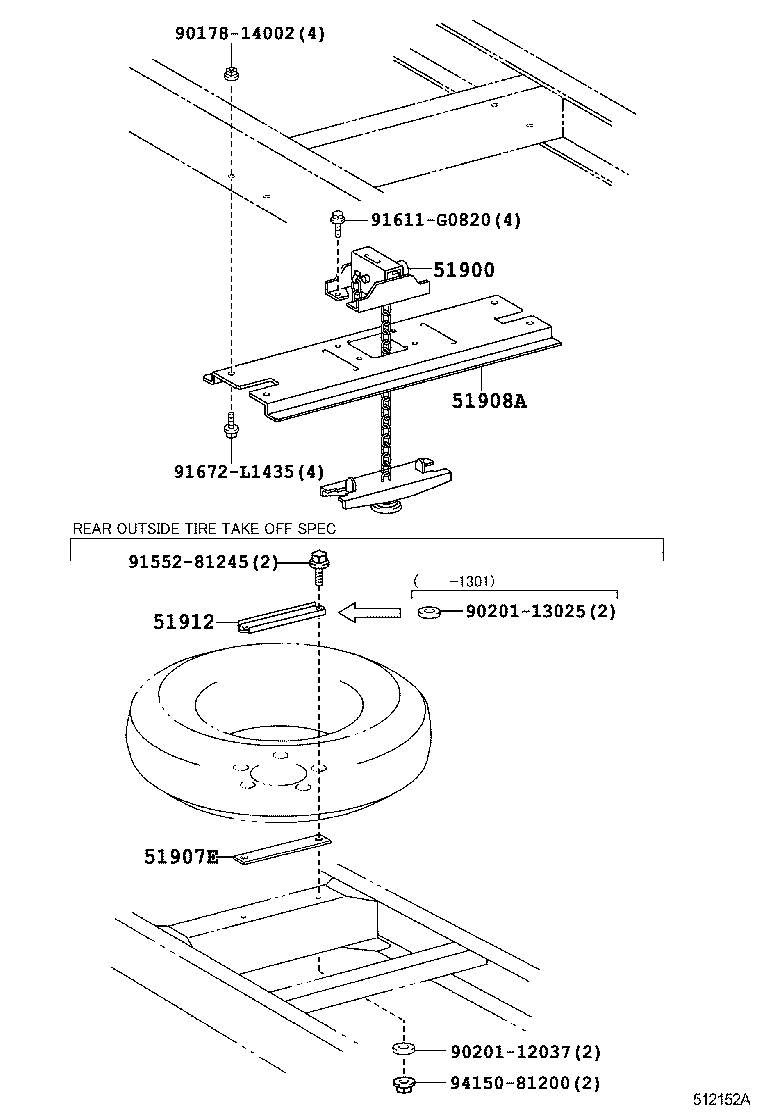

Click highlighted areas on diagram

diagram 51900 51907E 51908A 51912 9017814002 9020112037 9020113025 9155281245 91611G0820 91672L1435 9415081200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-37160

XZU600..GCC;WU600,650,XZU650..WT

 1
51908A - BRACKET SUB-ASSY, SPARE WHEEL MOUNTING
51908-37460

WU650,XZU650

 1
Common parts
90178-14002
90201-12037
90201-13025
91552-81245
91611-G0820
91672-L1435
94150-81200
