Toyota Dyna WU650 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
DYNA
WU650L-TKMMJV (2011)
4708 - BRAKE TUBE & CLAMP

WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

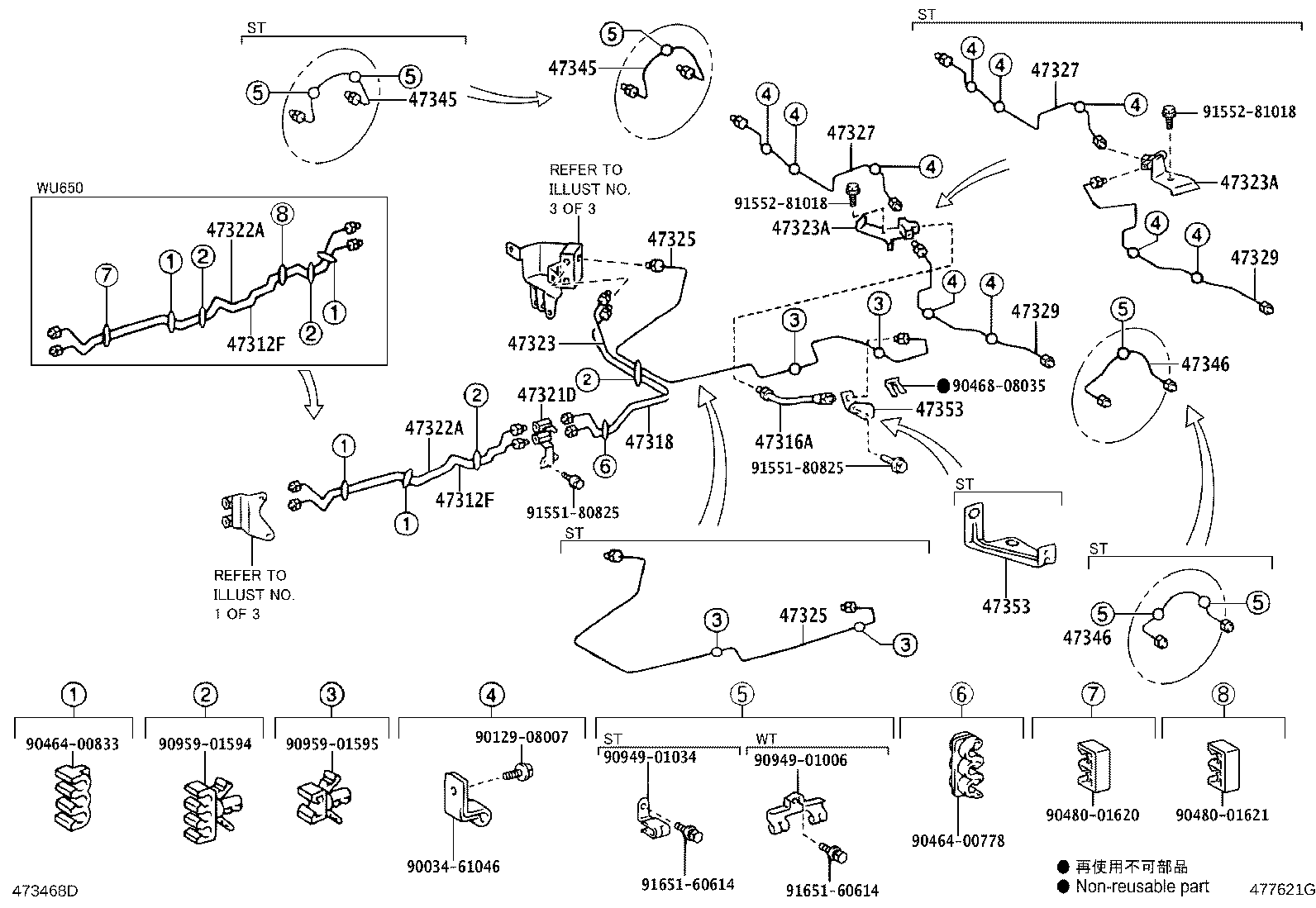

ILLUST NO. 2 OF 3(1107- )WU600,650

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37B51	WU650..GCC	01/2012 - 03/2014	1
47312-37B50	WU650..GCC	07/2011 - 12/2011	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37B51	WU650..GCC	01/2012 - 03/2014	1
47312-37B50	WU650..GCC	07/2011 - 12/2011	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	WU600,650..WT	07/2011 - 05/2020	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37181	WU600,650..WT..GCC	07/2011 - 10/2019	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37B20	WU650..GCC	07/2011 - 03/2014	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37B20	WU650..GCC	07/2011 - 03/2014	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37201	WU600,650..WT..GCC	07/2011 - 05/2020	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052	WU600,650..WT	07/2011 - 05/2020	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052	WU600,650..WT	07/2011 - 05/2020	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37560	WU600,650..WT..GCC	07/2011 - 05/2020	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37560	WU600,650..WT..GCC	07/2011 - 05/2020	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37570	WU600,650..WT..DCRTH	07/2011 - 04/2019	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37570	WU600,650..WT..DCRTH	07/2011 - 04/2019	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37450	WU600,650..WT..DCRTH	07/2011 - 04/2019	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37450	WU600,650..WT..DCRTH	07/2011 - 04/2019	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	WU600,650..WT	07/2011 - 01/2019	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	WU600,650..WT	07/2011 - 01/2019	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	WU600,650..WT	07/2011 - 01/2019	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	WU600,650..WT	07/2011 - 01/2019	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37240	XZU600..GCC;WU600,650,XZU650..WT	07/2011 - 05/2020	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37240	XZU600..GCC;WU600,650,XZU650..WT	07/2011 - 05/2020	1
Common parts
90034-61046
90129-08007
90464-00778
90464-00833
90468-08035
90480-01620
90480-01621
90949-01006
90949-01034
90959-01594
90959-01595
91551-80825
91552-81018
91651-60614

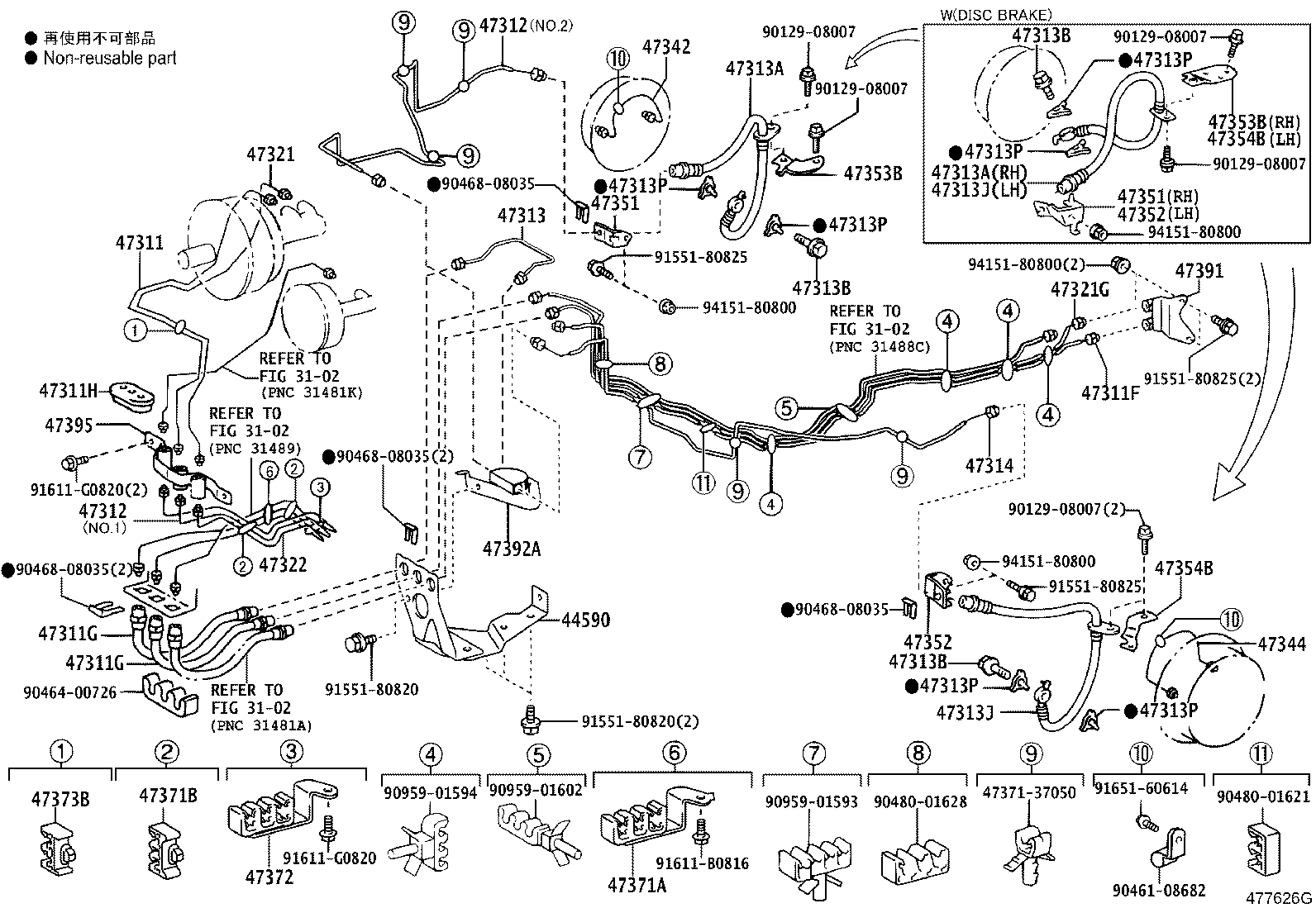

ILLUST NO. 1 OF 3(1107- )WU600,650

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37080	WU600,650	07/2011 - 05/2020	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-37641	WU600,650	04/2012 - 05/2012	1
47311-37640	WU600,650	07/2011 - 04/2012	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37670	WU600,650..GCC	07/2011 - 05/2020	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02F91	WU600,650	07/2011 - 10/2019	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02F91	WU600,650	07/2011 - 10/2019	2
47311H - GROMMET(FOR BRAKE TUBE)
90480-01054	WU600,650	07/2011 - 08/2014	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37C80	WU600,650 NO.2	07/2011 - 05/2020	1
47312-37C60	XZU600..GCC;WU600,650,XZU650 NO.1	07/2011 - 05/2020	1
47312-37C70	WU600,650 FRONT WHEEL BRAKE-DISC,NO.2	07/2011 - 05/2020	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37C80	WU600,650 NO.2	07/2011 - 05/2020	1
47312-37C60	XZU600..GCC;WU600,650,XZU650 NO.1	07/2011 - 05/2020	1
47312-37C70	WU600,650 FRONT WHEEL BRAKE-DISC,NO.2	07/2011 - 05/2020	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37600	WU600,650	07/2011 - 05/2020	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B67	WU600,650	07/2011 - 05/2020	1
90947-02A72	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B67	WU600,650	07/2011 - 05/2020	1
90947-02A72	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02B68	WU600,650	07/2011 - 05/2020	1
90947-02B27	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02B68	WU600,650	07/2011 - 05/2020	1
90947-02B27	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37860	WU600,650	07/2011 - 05/2020	1
47314-37850	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37611	WU600,650	04/2012 - 05/2012	1
47321-37610	WU600,650	07/2011 - 04/2012	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37640	WU600,650	07/2011 - 05/2020	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37C10	XZU600..GCC;WU600,650,XZU650 NO.1	07/2011 - 05/2020	1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-37040	WU600,650	07/2011 - 05/2020	1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-37020	WU600,650	07/2011 - 05/2020	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47351-37340	WU600,650	07/2011 - 05/2020	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47351-37340	WU600,650	07/2011 - 05/2020	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37210	WU600,650	07/2011 - 05/2020	1
47352-37050	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37210	WU600,650	07/2011 - 05/2020	1
47352-37050	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47353-37230	WU600,650	07/2011 - 05/2020	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47353-37230	WU600,650	07/2011 - 05/2020	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37220	WU600,650	07/2011 - 05/2020	1
47354-37160	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37220	WU600,650	07/2011 - 05/2020	1
47354-37160	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37200	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-37160	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-37190	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-37360	WU600,650	07/2011 - 04/2012	1
47391 - WAY, BRAKE TUBE
47391-37310	WU600,650	07/2011 - 05/2020	1
47392A - WAY, BRAKE TUBE, NO.2
47391-37350	WU600,650..GCC	07/2011 - 05/2020	1
47395 - WAY, BRAKE TUBE, NO.3
47391-37460	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
47371-37050
90129-08007
90461-08682
90464-00726
90468-08035
90480-01621
90480-01628
90959-01593
90959-01594
90959-01602
91551-80820
91551-80825
91611-B0816
91611-G0820
91651-60614
94151-80800
Linked diagrams
3102

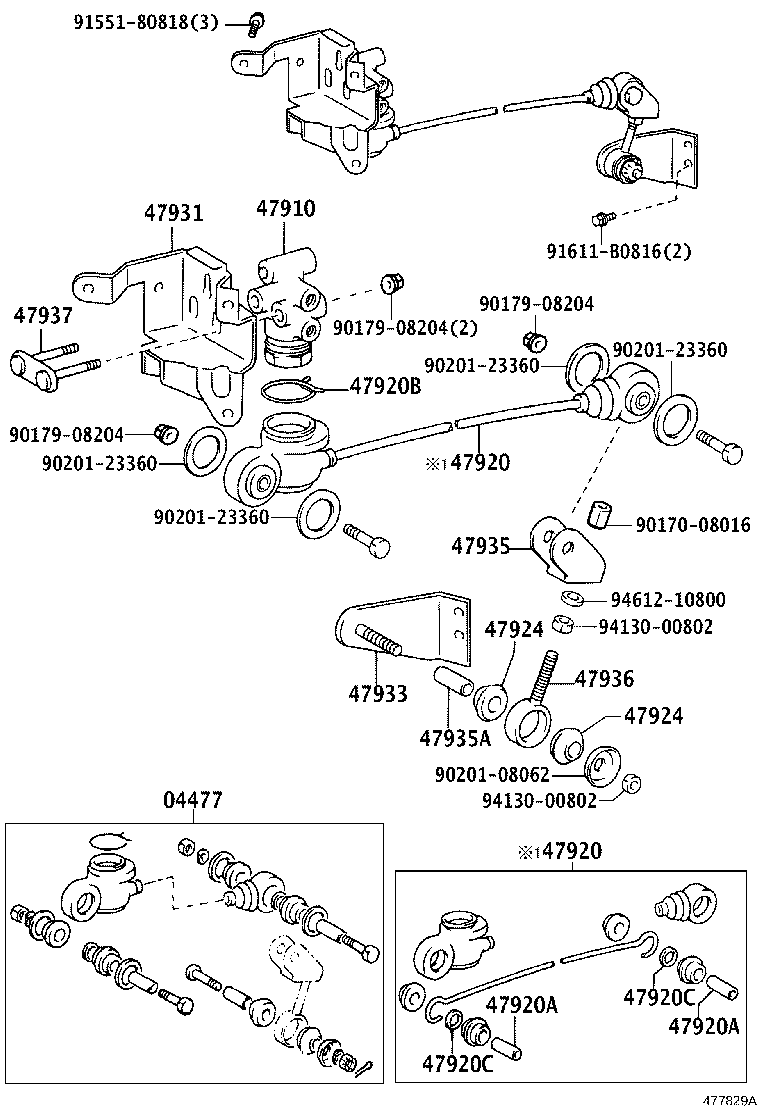

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-37010	WU600,650..GCC	07/2011 - 05/2020	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-37090	WU600,650..GCC	07/2011 - 05/2020	1
47920 - SPRING ASSY, LOAD SENSING
47920-37070	WU600,650..WT..GCC	07/2011 - 05/2020	1
47920 - SPRING ASSY, LOAD SENSING
47920-37070	WU600,650..WT..GCC	07/2011 - 05/2020	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	WU600,650..GCC	07/2011 - 05/2020	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	WU600,650..GCC	07/2011 - 05/2020	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	WU600,650..GCC	07/2011 - 05/2020	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	WU600,650..GCC	07/2011 - 05/2020	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	WU600,650..GCC	07/2011 - 05/2020	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	WU600,650..GCC	07/2011 - 05/2020	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	WU600,650..GCC	07/2011 - 05/2020	2
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	WU600,650..GCC	07/2011 - 05/2020	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-37060	WU600,650..GCC	07/2011 - 05/2020	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	WU600,650..GCC	07/2011 - 05/2020	1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099	WU600,650..GCC	07/2011 - 05/2020	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26020	WU600,650..GCC	07/2011 - 05/2020	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010	WU600,650..GCC	07/2011 - 05/2020	1
Common parts
90170-08016
90179-08204
90201-08062
90201-23360
91551-80818
91611-B0816
94130-00802
94612-10800

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-06009
90461-06487
90461-08058
90461-10076
90461-10625
90461-12124
90462-10033
90480-01047
90480-08343
90949-01006
90949-01019
90949-01034
90949-01035
91611-40812
91611-40816
91611-40820
91611-60614
91615-41040
91616-40820
91651-40820
91651-60614
91661-40614
94110-40800
96221-20905
96221-20906
96224-20966
