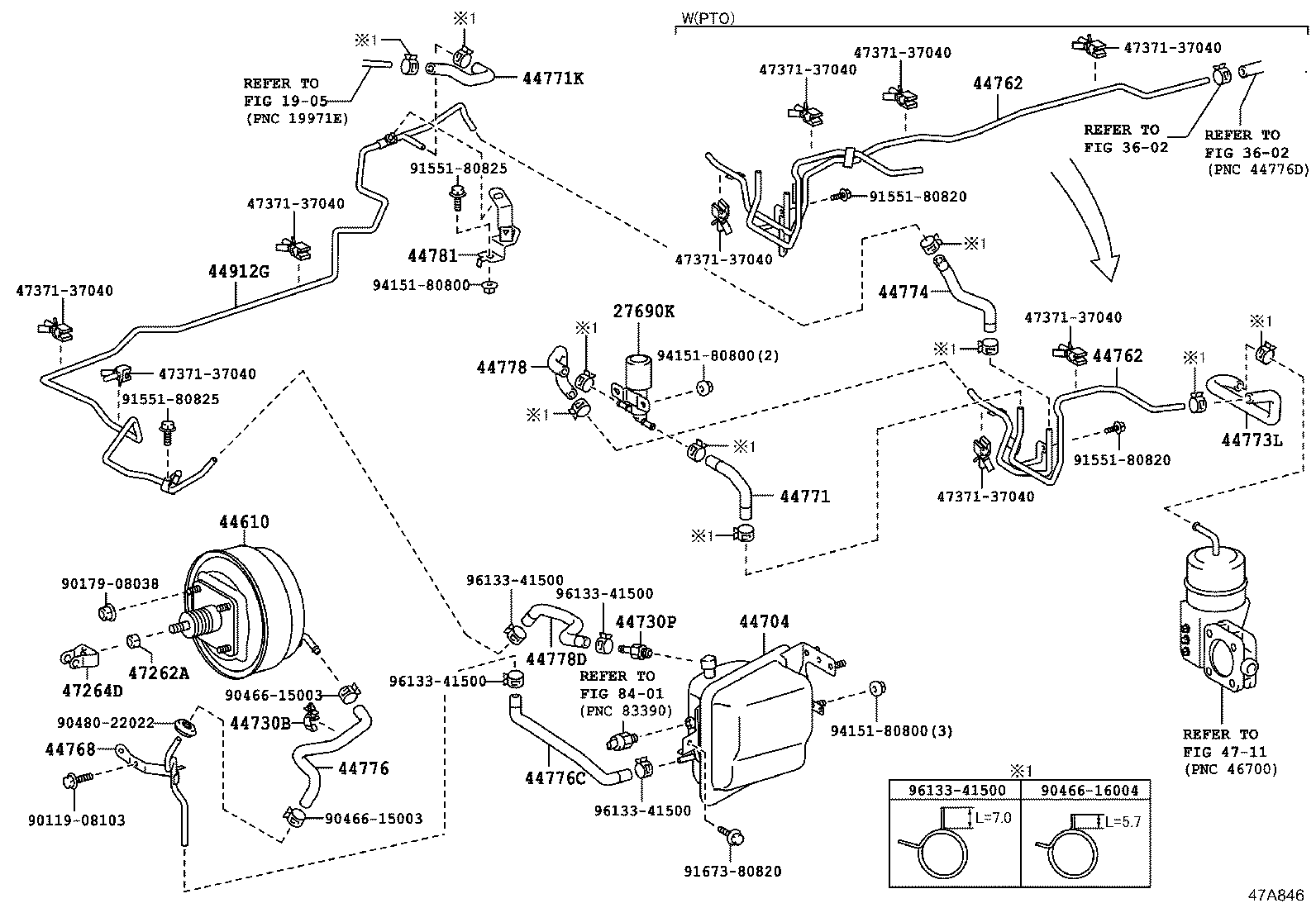

Toyota Dyna WU650 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78160	N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650	07/2011 - 05/2020	1
44610 - BOOSTER ASSY, BRAKE
44610-37280	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37220	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44730B - CLAMP, VACUUM HOSE
44597-37021	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44762 - TUBE, BOOSTER VACUUM
44702-37660	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH POWER TAKE OFF-VACUUM TYPE 15KG	07/2011 - 05/2020	1
44702-37670	WU600,650	07/2011 - 05/2020	1
44762 - TUBE, BOOSTER VACUUM
44702-37660	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH POWER TAKE OFF-VACUUM TYPE 15KG	07/2011 - 05/2020	1
44702-37670	WU600,650	07/2011 - 05/2020	1
44768 - TUBE, BOOSTER VACUUM
44768-37240	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37B80	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37B90	WU600,650	07/2011 - 05/2020	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37490	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37350	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44776 - HOSE, BRAKE BOOSTER
44776-37380	WU600,650	07/2011 - 05/2020	1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
44776-37420	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37460	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37350	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44781 - BRACKET, HOSE
44781-37200	WU600,650	07/2011 - 05/2020	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37D70	WU600,650	07/2011 - 05/2020	1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
90179-10065	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
47371-37040
90119-08103
90179-08038
90466-15003
90466-16004
90480-22022
91551-80820
91551-80825
91673-80820
94151-80800
96133-41500
Linked diagrams
1905
3602
4711
8401

Part #	Description	Period	Qty	Price
Common parts
90119-08126
90461-08050
90461-10376
90467-16141
91611-40610
91611-40820
91651-40816
94110-40800

WU650L-TKMMJV (2011)

(1107- )WU600,650

(7708- )BU2#,3#,40,HU30,40,50,JU20,WU40,50
