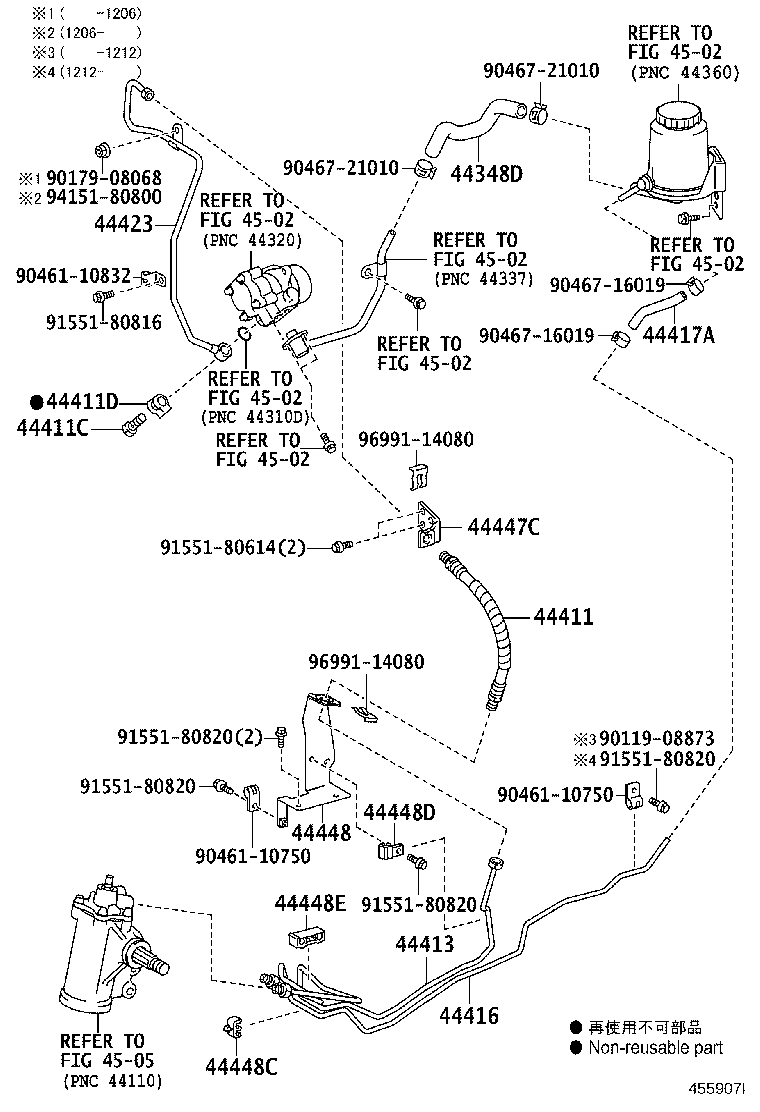

Toyota Dyna WU650 POWER STEERING TUBE

Part #	Description	Period	Qty
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37390	WU600,650	07/2011 - 05/2020	1
44411 - HOSE, PRESSURE FEED
44411-37141	WU600,650	07/2011 - 01/2016	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44413 - TUBE, PRESSURE FEED, NO.1
44413-37310	WU600,650	07/2011 - 05/2020	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37730	WU600,650	07/2011 - 05/2020	1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
44412-37390	WU600,650	07/2011 - 05/2020	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37070	WU600,650	07/2011 - 05/2020	1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-37020	WU600,650	07/2011 - 05/2020	1
44448 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1
44447-37210	WU600,650	07/2011 - 05/2020	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37080	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44448D - CLAMP, PRESSURE FEED, NO.1
44448-37060	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
44448E - CLAMP, PRESSURE FEED, NO.3
44448-37030	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
90119-08873
90179-08068
90461-10750
90461-10832
90467-16019
90467-21010
91551-80614
91551-80816
91551-80820
94151-80800
96991-14080
Linked diagrams
4502
4505

WU650L-TKMMJV (2011)
