Toyota Dyna WU650 FRONT AXLE HUB

WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )

Click highlighted areas on diagram

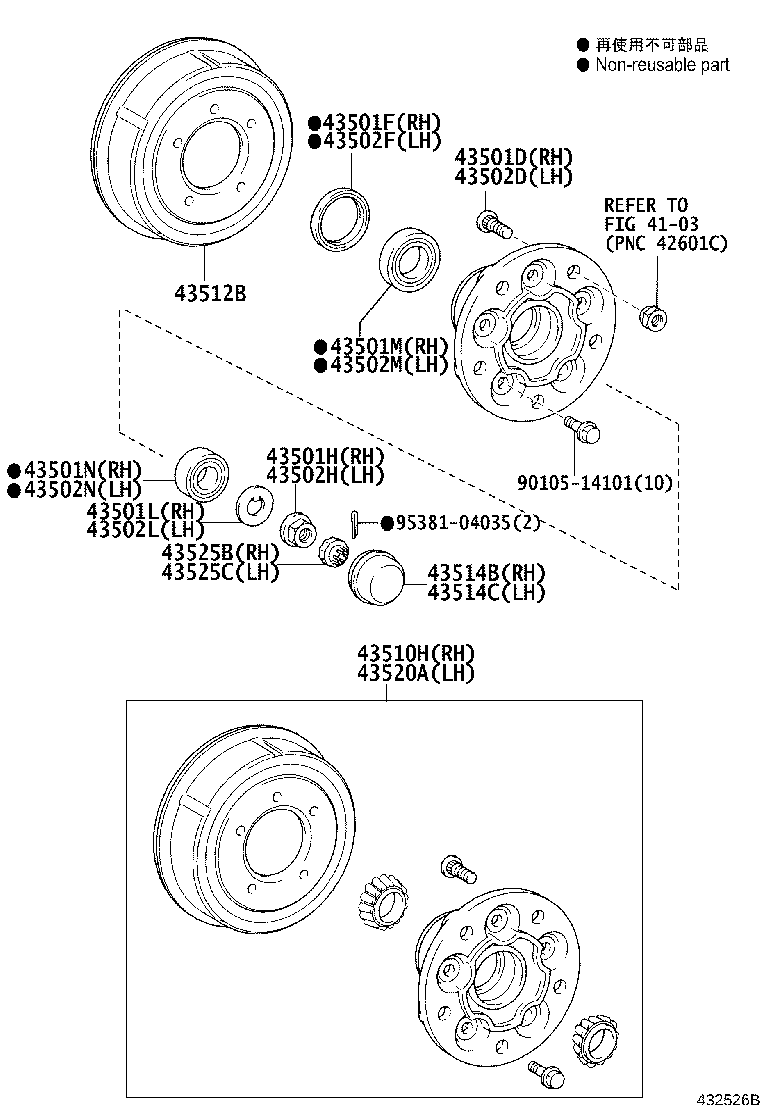

FRONT DRUM BRAKE

Part #	Description	Period	Qty
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-68003	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-28001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-29001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-50069	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90366-35105	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-68003	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-28001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-29001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-50069	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90366-35105	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43510-39265	WU600,650	07/2011 - 05/2020	1
43510-39275	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
43512B - DRUM, BRAKE
43512-37110	WU600,650	07/2011 - 05/2020	2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-37030	WU600,650	07/2011 - 04/2013	1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-37030	WU600,650	07/2011 - 04/2013	1
43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43520-39255	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
43520-39245	WU600,650	07/2011 - 05/2020	1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
90105-14101
95381-04035
Linked diagrams
4103

(1107- )

Click highlighted areas on diagram

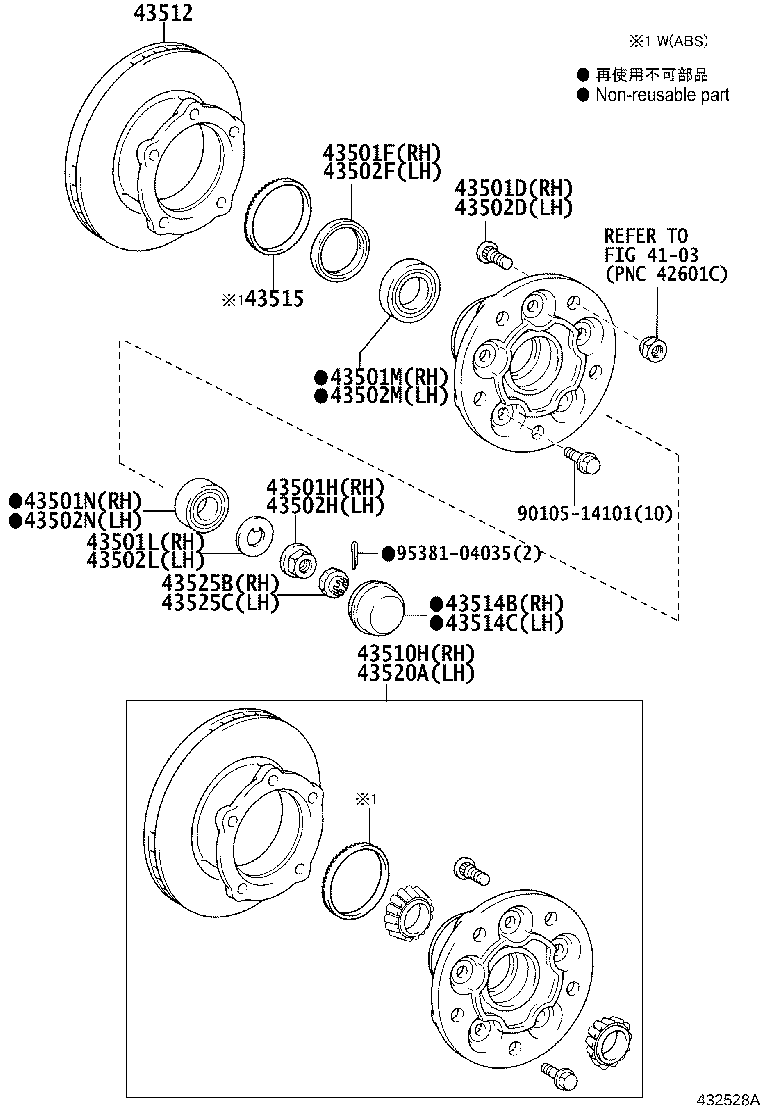

FRONT DISC BRAKE

Part #	Description	Period	Qty
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-68003	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-28001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-29001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-50069	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90366-35105	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-68003	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-28001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-29001	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-50069	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90366-35105	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43510-39265	WU600,650	07/2011 - 05/2020	1
43510-39275	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
43512 - DISC, FRONT
43512-37090	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 10/2014	2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-37030	WU600,650	07/2011 - 04/2013	1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-37030	WU600,650	07/2011 - 04/2013	1
43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43520-39255	WU600,650 FRONT WHEEL BRAKE-DISC	07/2011 - 05/2020	1
43520-39245	WU600,650	07/2011 - 05/2020	1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-37010	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
90105-14101
95381-04035
Linked diagrams
4103
