WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

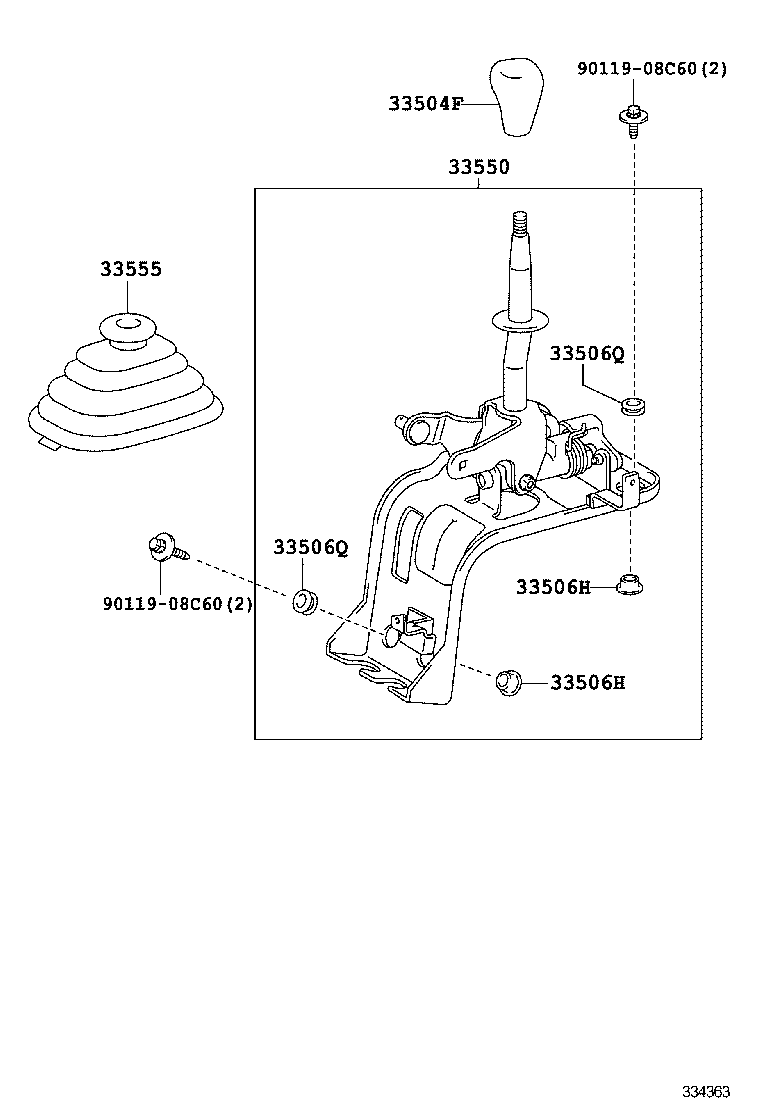

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 33504F 33506H 33506H 33506Q 33506Q 33550 33555 9011908C60 9011908C60
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36051C0

XZU600..GCC;WU600,650,XZU650

BLACK,TRIM1#

 1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
33546-37010

XZU600..GCC;WU600,650,XZU650

 4
33506H - BUSH (FOR SHIFT LEVER RETAINER)
33546-37010

XZU600..GCC;WU600,650,XZU650

 4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060

XZU600..GCC;WU600,650,XZU650

 4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060

XZU600..GCC;WU600,650,XZU650

 4
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37290

XZU600..GCC;WU600,650,XZU650

 1
33555 - BOOT, SHIFT LEVER
58808-37021C0

XZU600..GCC;WU600,650,XZU650

BLACK,TRIM1#

 1
Common parts
90119-08C60

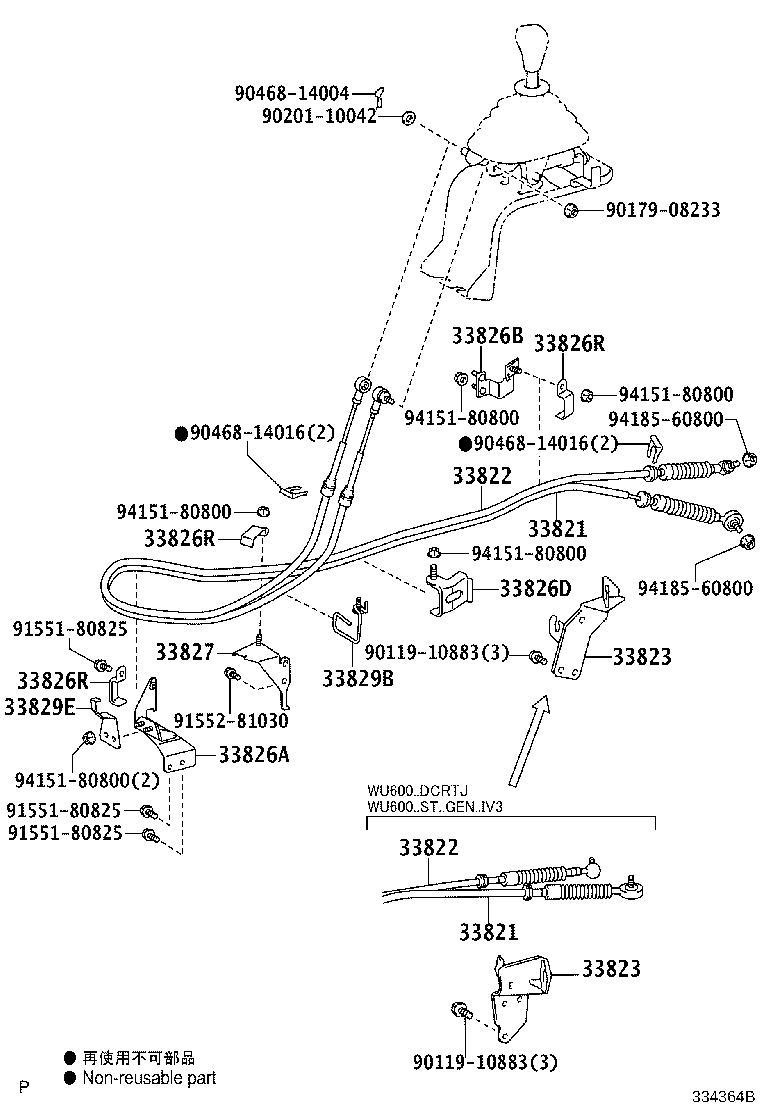

ILLUST NO. 2 OF 2(1107- )WU600,650

Click highlighted areas on diagram

diagram 33821 33821 33822 33822 33823 33823 33826A 33826B 33826D 33826R 33826R 33826R 33827 33829B 33829E 9011910883 9011910883 9017908233 9020110042 9046814004 9046814016 9046814016 9155180825 9155180825 9155180825 9155281030 9415180800 9415180800 9415180800 9415180800 9415180800 9418560800 9418560800
Part # Description Qty Price
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37N10

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37N10

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-37670

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-37670

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37750

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37750

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37B10

XZU600..GCC;WU600,650,XZU650

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37120

WU600,650

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33826-37251

WU600,650

 1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580

WU600,650

 3
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580

WU600,650

 3
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580

WU600,650

 3
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37181

XZU600..GCC;WU600,650,XZU650

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37350

WU600,650

 1
33829E - BRACKET, TRANSMISSION CONTROL CABLE
33826-37C00

XZU600..GCC;WU600,650,XZU650

 1
Common parts
90119-10883
90179-08233
90201-10042
90468-14004
90468-14016
91551-80825
91552-81030
94151-80800
94185-60800
