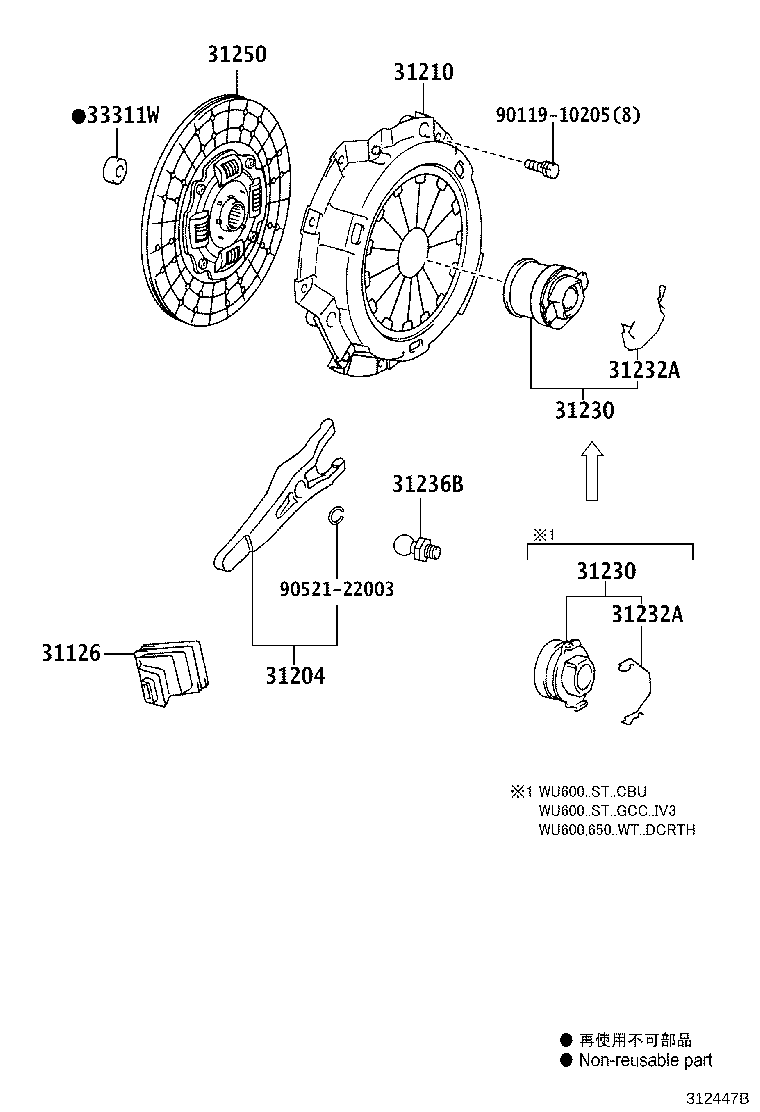

Toyota Dyna WU650 CLUTCH & RELEASE FORK

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-37050	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 09/2014	1
31210 - COVER ASSY, CLUTCH
31210-37110	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 05/2020	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-37010	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 05/2020	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-37010	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 05/2020	1
31232A - CLIP, RELEASE BEARING HUB
31232-37010	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 05/2020	1
31232A - CLIP, RELEASE BEARING HUB
31232-37010	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 05/2020	1
31236B - SUPPORT, RELEASE FORK
31236-36060	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
31250 - DISC ASSY, CLUTCH
31250-37140	WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH	07/2011 - 11/2015	1
33311W - BEARING (FOR INPUT SHAFT)
90363-17037	XZU600..GCC;WU600,650,XZU650	07/2011 - 05/2020	1
Common parts
90119-10205
90521-22003

WU650L-TKMMJV (2011)
