WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..WT..DCRTH ; (1107- )W04D..WU600..ST..CBU ; (1107- )W04D..WU6

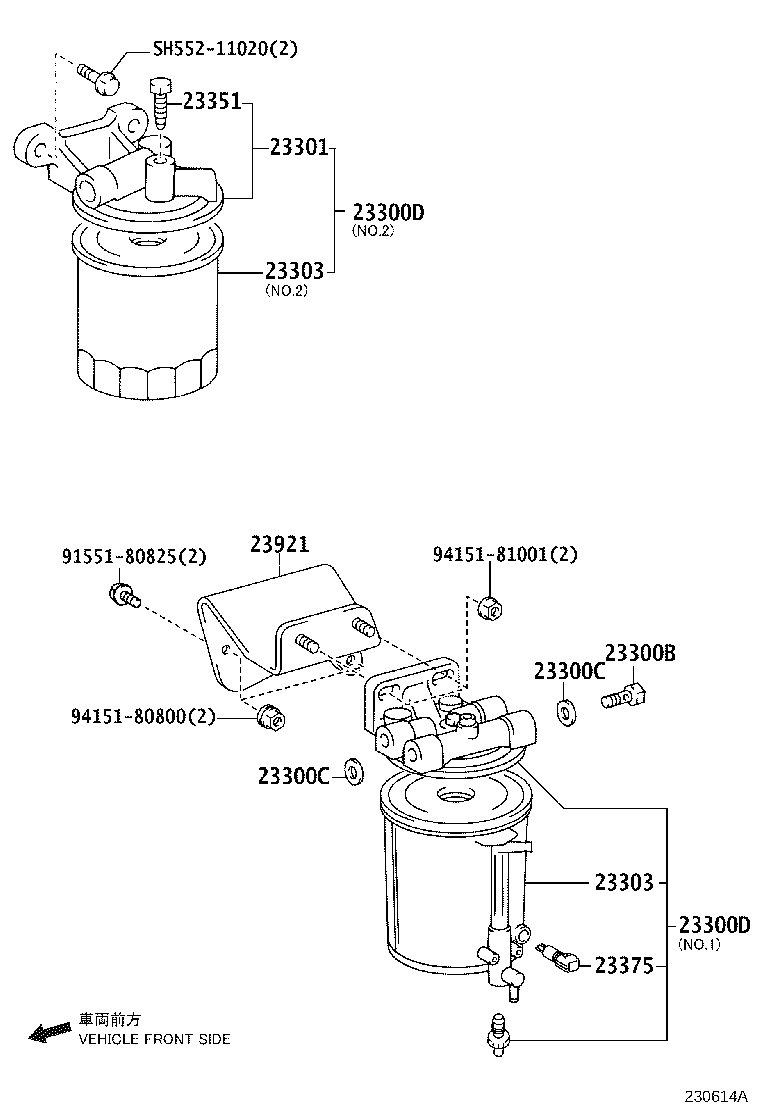

Click highlighted areas on diagram

diagram 23300B 23300C 23300C 23300D 23300D 23301 23303 23303 23351 23375 23921 9155180825 9415180800 9415181001 SH55211020
Part # Description Qty Price
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
SZ401-14024

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
23300C - GASKET, NIPPLE UNION(FOR FUEL)
SZ430-14003

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 2
23300C - GASKET, NIPPLE UNION(FOR FUEL)
SZ430-14003

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 2
23300D - FILTER ASSY, FUEL(FOR DIESEL)
S2330-01912

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

NO.2

 1
23300-78110

W04D..WU600,650

NO.1

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
S2330-01912

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

NO.2

 1
23300-78110

W04D..WU600,650

NO.1

 1
23301 - BODY SUB-ASSY, FUEL FILTER
S2331-01420

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23304-78110

W04D..WU600,650

NO.1

 1
S2340-11133

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

NO.2

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23304-78110

W04D..WU600,650

NO.1

 1
S2340-11133

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

NO.2

 1
23351 - PLUG, AIR VENT
S2331-61040

W04D..WU600,650

 1
23375 - SENSOR, FUEL FILTER
23375-78110

W04D..WU600,650

 1
23921 - SUPPORT, FUEL FILTER
23921-78430

W04D..WU600,650

NO.1

 1
Common parts
91551-80825
94151-80800
94151-81001
SH552-11020
