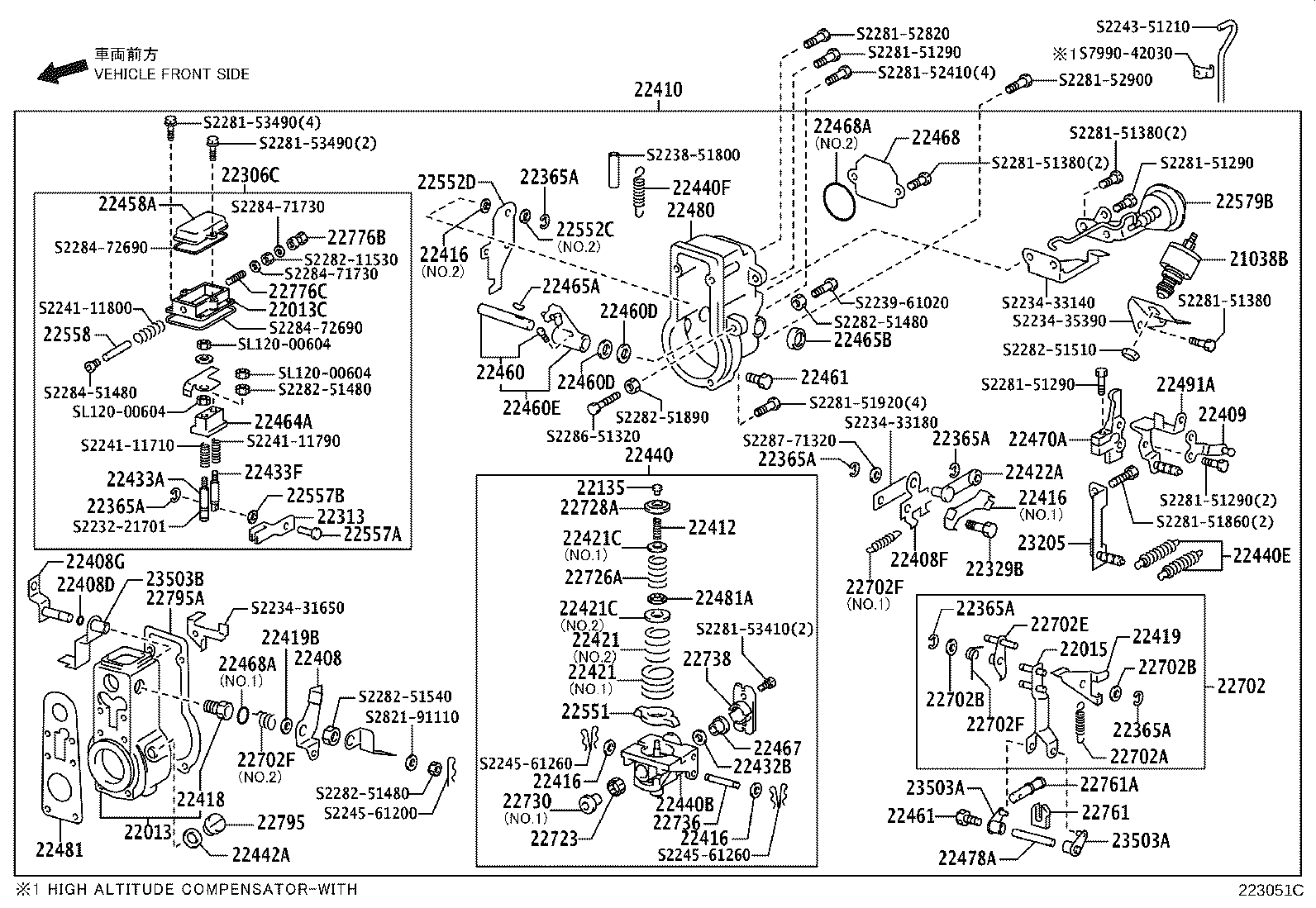

WU650L-TKMMJV (2011)
Toyota Dyna
(1107- )W04D..WT..DCRTH ; (1107- )W04D..WU600..ST..CBU ; (1107- )W04D..WU6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21038B - COMPENSATOR SUB-ASSY, ANEROID | ||||
| S2244-01100 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22013 - HOUSING SUB-ASSY, FULLROAD STOPPER | ||||
| S2230-11190 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22013C - HOUSING, FULLROAD STOPPER, NO.2 | ||||
| S2237-11130 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22015 - LEVER SUB-ASSY, FLOATING | ||||
| S2235-01182 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22135 - NUT, ADJUSTING TAPPET | ||||
| S2282-52310 |
W04D..WU600,650 |
2 | ||
| 22306C - HOUSING SUB-ASSY, GOVERNOR | ||||
| S2237-02860 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22313 - LEVER, INJECTION PUMP STOP | ||||
| S2236-94850 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22329B - BOLT, DIAPHRAGM CONNECTING, NO.3 | ||||
| S2281-52890 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
2 | ||
| 22365A - RING, E(FOR INJECTION PUMP LEVER) | ||||
| S2287-31390 |
W04D..WU600,650 |
6 | ||
| 22365A - RING, E(FOR INJECTION PUMP LEVER) | ||||
| S2287-31390 |
W04D..WU600,650 |
6 | ||
| 22365A - RING, E(FOR INJECTION PUMP LEVER) | ||||
| S2287-31390 |
W04D..WU600,650 |
6 | ||
| 22365A - RING, E(FOR INJECTION PUMP LEVER) | ||||
| S2287-31390 |
W04D..WU600,650 |
6 | ||
| 22365A - RING, E(FOR INJECTION PUMP LEVER) | ||||
| S2287-31390 |
W04D..WU600,650 |
6 | ||
| 22365A - RING, E(FOR INJECTION PUMP LEVER) | ||||
| S2287-31390 |
W04D..WU600,650 |
6 | ||
| 22408 - ARM, STOPPER | ||||
| S2234-83790 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22408D - RING, O(FOR ARM SUB-ASSY) | ||||
| S2284-71740 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22408F - ARM SUB-ASSY, GOVERNOR | ||||
| S2234-33210 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22408G - ARM SUB-ASSY, GOVERNOR | ||||
| S2234-81551 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22409 - LEVER SUB-ASSY, SUPPROTING | ||||
| S2230-94290 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL | ||||
| S2231-07000 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22412 - SPRING, MECHANICAL GOVERNOR | ||||
| S2234-12160 |
W04D..WU600,650 |
2 | ||
| 22416 - WASHER, GOVERNOR LOCK | ||||
| S2286-32450 |
W04D..WU600,650 NO.3 |
2 | ||
| S2287-71880 |
W04D..WU600,650 NO.2 |
1 | ||
| S2287-71990 |
W04D..WU600,650 NO.1 |
1 | ||
| 22416 - WASHER, GOVERNOR LOCK | ||||
| S2286-32450 |
W04D..WU600,650 NO.3 |
2 | ||
| S2287-71880 |
W04D..WU600,650 NO.2 |
1 | ||
| S2287-71990 |
W04D..WU600,650 NO.1 |
1 | ||
| 22416 - WASHER, GOVERNOR LOCK | ||||
| S2286-32450 |
W04D..WU600,650 NO.3 |
2 | ||
| S2287-71880 |
W04D..WU600,650 NO.2 |
1 | ||
| S2287-71990 |
W04D..WU600,650 NO.1 |
1 | ||
| 22416 - WASHER, GOVERNOR LOCK | ||||
| S2286-32450 |
W04D..WU600,650 NO.3 |
2 | ||
| S2287-71880 |
W04D..WU600,650 NO.2 |
1 | ||
| S2287-71990 |
W04D..WU600,650 NO.1 |
1 | ||
| 22418 - BUSHING, GOVERNOR BEARING | ||||
| S2232-22490 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22419 - LEVER, STOP | ||||
| S2235-71091 |
W04D..WU600,650 |
1 | ||
| 22419B - WASHER, PLATE(FOR STOPPER LEVER) | ||||
| S2287-72190 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.1 |
1 | ||
| S2287-72200 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.2 |
1 | ||
| 22421 - SPRING, IDLING | ||||
| S2241-11660 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.1 |
2 | ||
| S2241-11670 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.2 |
2 | ||
| 22421 - SPRING, IDLING | ||||
| S2241-11660 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.1 |
2 | ||
| S2241-11670 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.2 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| S2287-72260 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.20,NO.1 |
2 | ||
| S2287-71300 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.40,NO.1 |
2 | ||
| S2287-71270 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.20,NO.2 |
2 | ||
| S2287-71900 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=1.00,NO.1 |
2 | ||
| S2287-71290 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.60,NO.2 |
2 | ||
| S2287-71890 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=1.00,NO.2 |
2 | ||
| S2287-72250 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.30,NO.1 |
2 | ||
| S2287-71310 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.60,NO.1 |
2 | ||
| S2287-71280 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.40,NO.2 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| S2287-72260 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.20,NO.1 |
2 | ||
| S2287-71300 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.40,NO.1 |
2 | ||
| S2287-71270 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.20,NO.2 |
2 | ||
| S2287-71900 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=1.00,NO.1 |
2 | ||
| S2287-71290 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.60,NO.2 |
2 | ||
| S2287-71890 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=1.00,NO.2 |
2 | ||
| S2287-72250 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.30,NO.1 |
2 | ||
| S2287-71310 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.60,NO.1 |
2 | ||
| S2287-71280 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.40,NO.2 |
2 | ||
| 22422A - SHACKLE, GOVERNOR | ||||
| S2204-51110 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| S2204-51110 |
W04D..WU600,650..GCC HIGH ALTITUDE COMPENSATOR-WITH |
1 | ||
| 22432B - SHIM | ||||
| S2288-52450 |
W04D..WU600,650 T=1.60 |
1 | ||
| S2288-52470 |
W04D..WU600,650 T=1.70 |
1 | ||
| S2288-52520 |
W04D..WU600,650 T=1.95 |
1 | ||
| S2288-52480 |
W04D..WU600,650 T=1.75 |
1 | ||
| S2288-52490 |
W04D..WU600,650 T=1.80 |
1 | ||
| S2288-52460 |
W04D..WU600,650 T=1.65 |
1 | ||
| S2288-55960 |
W04D..WU600,650 T=2.15 |
1 | ||
| S2288-52540 |
W04D..WU600,650 T=2.10 |
1 | ||
| S2288-52500 |
W04D..WU600,650 T=1.85 |
1 | ||
| S2288-52510 |
W04D..WU600,650 T=1.90 |
1 | ||
| S2288-52560 |
W04D..WU600,650 T=2.30 |
1 | ||
| S2288-52530 |
W04D..WU600,650 T=2.00 |
1 | ||
| S2288-55950 |
W04D..WU600,650 T=2.05 |
1 | ||
| S2288-55970 |
W04D..WU600,650 T=2.25 |
1 | ||
| S2288-52550 |
W04D..WU600,650 T=2.20 |
1 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| S2238-51820 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22433F - ADAPTER, GOVERNOR | ||||
| S2238-53020 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22440 - FLYWEIGHT SUB-ASSY | ||||
| S2230-41420 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22440B - FLYWEIGHT SUB-ASSY | ||||
| S2230-41650 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22440E - SPRING SUB-ASSY, RETURN | ||||
| S2234-13560 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
2 | ||
| 22440F - SPRING SUB-ASSY, RETURN | ||||
| S2234-11710 |
W04D..WU600,650 |
1 | ||
| 22442A - GASKET, GOVERNOR | ||||
| S2284-72360 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22458A - PLATE, GOVERNOR COVER | ||||
| S2237-11240 |
W04D..WU600,650 |
1 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| S2230-72760 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| S2287-71400 |
W04D..WU600,650 T=0.50 |
2 | ||
| S2287-71440 |
W04D..WU600,650 T=0.70 |
2 | ||
| S2287-71430 |
W04D..WU600,650 T=0.65 |
2 | ||
| S2287-71450 |
W04D..WU600,650 T=0.75 |
2 | ||
| S2287-71420 |
W04D..WU600,650 T=0.60 |
2 | ||
| S2287-71460 |
W04D..WU600,650 T=0.80 |
2 | ||
| S2287-71410 |
W04D..WU600,650 T=0.55 |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| S2287-71400 |
W04D..WU600,650 T=0.50 |
2 | ||
| S2287-71440 |
W04D..WU600,650 T=0.70 |
2 | ||
| S2287-71430 |
W04D..WU600,650 T=0.65 |
2 | ||
| S2287-71450 |
W04D..WU600,650 T=0.75 |
2 | ||
| S2287-71420 |
W04D..WU600,650 T=0.60 |
2 | ||
| S2287-71460 |
W04D..WU600,650 T=0.80 |
2 | ||
| S2287-71410 |
W04D..WU600,650 T=0.55 |
2 | ||
| 22460E - ARM ASSY, GUIDE | ||||
| S2230-72730 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22461 - PLUG, SCREW | ||||
| S2284-51250 |
W04D..WU600,650 |
2 | ||
| 22461 - PLUG, SCREW | ||||
| S2284-51250 |
W04D..WU600,650 |
2 | ||
| 22464A - BLOCK, SLIDING | ||||
| S2243-41190 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) | ||||
| S2289-11060 |
W04D..WU600,650 |
1 | ||
| 22465B - SEAL, OIL(FOR ADJUSTING LEVER) | ||||
| S2282-71530 |
W04D..WU600,650 |
1 | ||
| 22467 - NUT, ROUND | ||||
| S2235-31150 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22468 - COVER, PLATE | ||||
| S2238-61390 |
W04D..WU600,650 |
1 | ||
| 22468A - O, RING | ||||
| S2281-71440 |
W04D..WU600,650 NO.1 |
1 | ||
| S2284-71540 |
W04D..WU600,650 NO.2 |
1 | ||
| 22468A - O, RING | ||||
| S2281-71440 |
W04D..WU600,650 NO.1 |
1 | ||
| S2284-71540 |
W04D..WU600,650 NO.2 |
1 | ||
| 22470A - LEVER ASSY, ADJUSTING | ||||
| S2241-51760 |
W04D..WU600,650 |
1 | ||
| 22478A - SHAFT, LEVER SUPPORTING | ||||
| S2235-81410 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22480 - COVER SUB-ASSY, GOVERNOR | ||||
| S2238-02490 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22481 - GASKET | ||||
| S2284-72490 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22481A - SEAT, SPRING, INNER | ||||
| S2235-11640 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
2 | ||
| 22491A - LEVER KIT, CONTROL | ||||
| S2231-92540 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22551 - SEAT, SPRING(FOR FLYWEIGHT) | ||||
| S2235-11370 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22552C - WASHER(FOR CAM PLATE BUSH) | ||||
| S2287-71380 |
W04D..WU600,650 T=0.4 |
1 | ||
| S2287-71390 |
W04D..WU600,650 T=0.5 |
1 | ||
| S2287-71370 |
W04D..WU600,650 T=0.3 |
1 | ||
| S2287-71360 |
W04D..WU600,650 T=0.2 |
1 | ||
| 22552D - PLATE, CAM | ||||
| S2236-91051 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22557A - PIN, CONNECTING(FOR FULL STOP CAM) | ||||
| S2245-51230 |
W04D..WU600,650 |
1 | ||
| 22557B - WASHER, PLATE(FOR CONNECTING PIN) | ||||
| S2288-51450 |
W04D..WU600,650 T=0.20 |
1 | ||
| S2288-51440 |
W04D..WU600,650 T=0.10 |
1 | ||
| 22558 - SHAFT, SLIDING BLOCK | ||||
| S2233-81070 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22579B - ACTUATOR, IDLE UP DIAPHRAGM | ||||
| S2247-01270 |
W04D..WU600,650 |
1 | ||
| 22702 - LEVER ASSY, FLOATING | ||||
| S2204-11140 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22702A - SPRING, FLOATING ARM | ||||
| S2234-11680 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| S2288-51270 |
W04D..WU600,650..GCC T=0.30,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51270 |
W04D..WU600,650 T=0.30 |
1 | ||
| S2288-51280 |
W04D..WU600,650..GCC T=0.40,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51030 |
W04D..WU600,650 T=0.20 |
1 | ||
| S2288-51920 |
W04D..WU600,650..GCC T=0.10,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51280 |
W04D..WU600,650 T=0.40 |
1 | ||
| S2288-51920 |
W04D..WU600,650 T=0.10 |
1 | ||
| S2288-51030 |
W04D..WU600,650..GCC T=0.20,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51930 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.05 |
2 | ||
| S2288-51930 |
W04D..WU600,650..GCC T=0.05,HIGH ALTITUDE COMPENSATOR-WITH |
1 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| S2288-51270 |
W04D..WU600,650..GCC T=0.30,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51270 |
W04D..WU600,650 T=0.30 |
1 | ||
| S2288-51280 |
W04D..WU600,650..GCC T=0.40,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51030 |
W04D..WU600,650 T=0.20 |
1 | ||
| S2288-51920 |
W04D..WU600,650..GCC T=0.10,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51280 |
W04D..WU600,650 T=0.40 |
1 | ||
| S2288-51920 |
W04D..WU600,650 T=0.10 |
1 | ||
| S2288-51030 |
W04D..WU600,650..GCC T=0.20,HIGH ALTITUDE COMPENSATOR-WITH,NO.1 |
1 | ||
| S2288-51930 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH T=0.05 |
2 | ||
| S2288-51930 |
W04D..WU600,650..GCC T=0.05,HIGH ALTITUDE COMPENSATOR-WITH |
1 | ||
| 22702E - LEVER SUB-ASSY, CONTROL | ||||
| S2204-21190 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| S2234-11700 |
W04D..WU600,650 NO.1 |
1 | ||
| S2234-11690 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| S2234-12180 |
W04D..WU600,650 NO.2 |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| S2234-11700 |
W04D..WU600,650 NO.1 |
1 | ||
| S2234-11690 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| S2234-12180 |
W04D..WU600,650 NO.2 |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| S2234-11700 |
W04D..WU600,650 NO.1 |
1 | ||
| S2234-11690 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| S2234-12180 |
W04D..WU600,650 NO.2 |
1 | ||
| 22723 - DAMPER, FLYWEIGHT HOLDER | ||||
| S2238-52070 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
6 | ||
| 22726A - SPRING, SPEED CONTROL | ||||
| S2232-12050 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
2 | ||
| 22728A - GUIDE, SPRING | ||||
| S2238-51471 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
2 | ||
| 22730 - BUSHING ASSY, CAMSHAFT | ||||
| S2232-11751 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.1 |
1 | ||
| 22736 - BOLT, BELLCRANK | ||||
| S2281-53600 |
W04D..WU600,650 |
1 | ||
| 22738 - BUSHING, GUIDE(FOR FLYWEIGHT) | ||||
| S2232-21760 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22761 - SLIDER(FOR SPEED CONTROL) | ||||
| S2234-91131 |
W04D..WU600,650 |
1 | ||
| 22761A - SHAFT, SLIDING WEIGHT | ||||
| S2231-81140 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=31.7 |
1 | ||
| S2231-81150 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=31.5 |
1 | ||
| S2231-81180 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=30.9 |
1 | ||
| S2231-81170 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=31.1 |
1 | ||
| S2231-81190 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=30.7 |
1 | ||
| S2231-81390 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=32.1 |
1 | ||
| S2231-81380 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=32.0 |
1 | ||
| S2231-81130 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=31.9 |
1 | ||
| S2231-81160 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH L=31.3 |
1 | ||
| 22776B - NUT, CAP(FOR SCREW STOPPER) | ||||
| S2234-21820 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22776C - SCREW, STOPPER | ||||
| S2239-52140 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22795 - PLUG, SCREW | ||||
| S2284-51261 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 22795A - WASHER, SCREW PLUG | ||||
| S2284-72370 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 23205 - BRACKET SUB-ASSY | ||||
| S2234-38080 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 23503A - LEVER SUB-ASSY | ||||
| S2235-02340 |
W04D..WU600,650 |
2 | ||
| 23503A - LEVER SUB-ASSY | ||||
| S2235-02340 |
W04D..WU600,650 |
2 | ||
| 23503B - LEVER SUB-ASSY | ||||
| S2234-83780 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| Common parts | ||||
| S2232-21701 | ||||
| S2234-31650 | ||||
| S2234-33140 | ||||
| S2234-33180 | ||||
| S2234-35390 | ||||
| S2238-51800 | ||||
| S2239-61020 | ||||
| S2241-11710 | ||||
| S2241-11790 | ||||
| S2241-11800 | ||||
| S2243-51210 | ||||
| S2245-61200 | ||||
| S2245-61260 | ||||
| S2281-51290 | ||||
| S2281-51380 | ||||
| S2281-51860 | ||||
| S2281-51920 | ||||
| S2281-52410 | ||||
| S2281-52820 | ||||
| S2281-52900 | ||||
| S2281-53410 | ||||
| S2281-53490 | ||||
| S2282-11530 | ||||
| S2282-51480 | ||||
| S2282-51510 | ||||
| S2282-51540 | ||||
| S2282-51890 | ||||
| S2284-51480 | ||||
| S2284-71730 | ||||
| S2284-72690 | ||||
| S2286-51320 | ||||
| S2287-71320 | ||||
| S2821-91110 | ||||
| S7990-42030 | ||||
| SL120-00604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
