WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..WT..DCRTH ; (1107- )W04D..WU600..ST..CBU ; (1107- )W04D..WU6

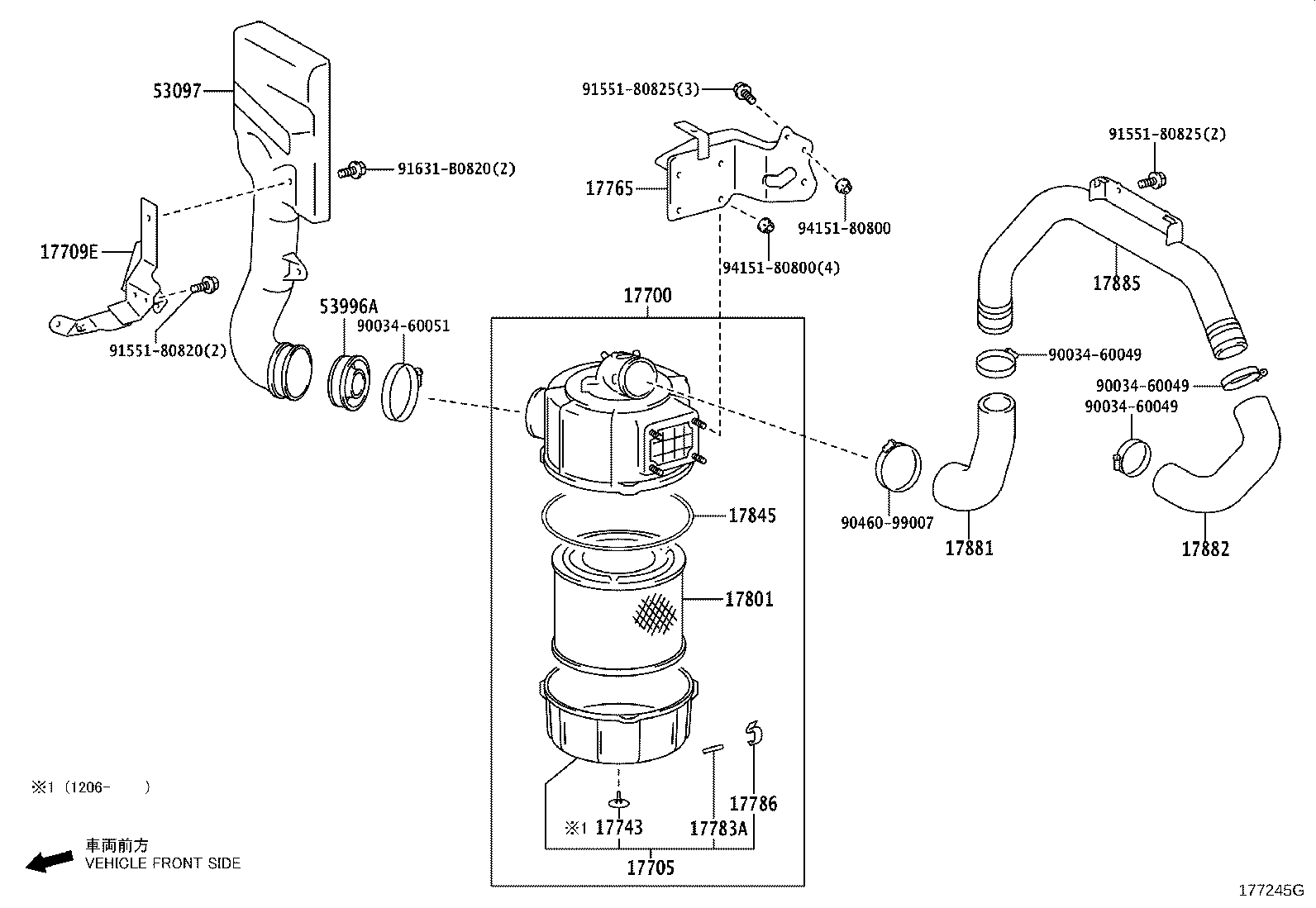

Click highlighted areas on diagram

diagram 17700 17705 17709E 17743 17765 17783A 17786 17801 17845 17881 17882 17885 53097 53996A 9003460049 9003460049 9003460049 9003460051 9046099007 9155180820 9155180825 9155180825 91631B0820 9415180800 9415180800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-78470

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-78090

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17709E - BRACKET, AIR CLEANER INLET, NO.2
17707-78020

W04D..WU600,650

 1
17765 - STAY, AIR CLEANER, NO.1
17765-78070

W04D..WU600,650

 1
17786 - CLAMP, AIR CLEANER
17786-78010

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 4
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-78110

W04D..WU600,650

 1
17845 - GASKET, AIR CLEANER CAP
17845-78030

W04D..WU600,650

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-78140

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-78181

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17885 - PIPE, AIR CLEANER
17885-78111

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
53097 - INLET SUB-ASSY
53097-37390

WU600,650

 1
53996A - PACKING, AIR CLEANER INLET PIPE
53996-37070

WU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH

 1
Common parts
90034-60049
90034-60051
90460-99007
91551-80820
91551-80825
91631-B0820
94151-80800

(7708- )B,2B,3B

Click highlighted areas on diagram

diagram 1709 1709 1709 1709 17700 17700 17700A 17700A 17700B 17700B 17701 17701 17801 17801 17807 17807 17841 17841 17841 17841 17845 17845 9165161022 9165161025 9165661022 9411041000 9411041000 9427100600 9451100600 9461110600
Part # Description Qty Price
Common parts
91651-61022
91651-61025
91656-61022
94110-41000
94271-00600
94511-00600
94611-10600
Linked diagrams
1709

(7708- )H

Click highlighted areas on diagram

diagram 1709 1709 1709 1709 17700 17700 17700A 17700A 17700B 17700B 17701 17701 17801 17801 17807 17807 17841 17841 17841 17841 17845 17845 9165161022 9165161025 9165661022 9411041000 9411041000 9427100600 9451100600 9461110600
Part # Description Qty Price
Common parts
91651-61022
91651-61025
91656-61022
94110-41000
94271-00600
94511-00600
94611-10600
Linked diagrams
1709

(7708- )B,3B

Click highlighted areas on diagram

diagram 1709 1709 1709 1709 17700 17700 17700A 17700A 17701 17701 17801 17801 17841 17841 17845 17845 9165161022 9165161025 9165661022 9411041000 9411041000 9427100600 9427100600 9451100600 9451100600 9461110600 9461110600
Part # Description Qty Price
Common parts
91651-61022
91651-61025
91656-61022
94110-41000
94271-00600
94511-00600
94611-10600
Linked diagrams
1709

(7708- )H

Click highlighted areas on diagram

diagram 1709 1709 1709 1709 17700 17700 17700A 17700A 17701 17701 17801 17801 17841 17841 17845 17845 9165161022 9165161025 9165661022 9411041000 9411041000 9427100600 9427100600 9451100600 9451100600 9461110600 9461110600
Part # Description Qty Price
Common parts
91651-61022
91651-61025
91656-61022
94110-41000
94271-00600
94511-00600
94611-10600
Linked diagrams
1709
