WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..WT..DCRTH ; (1107- )W04D..WU600..ST..CBU ; (1107- )W04D..WU6

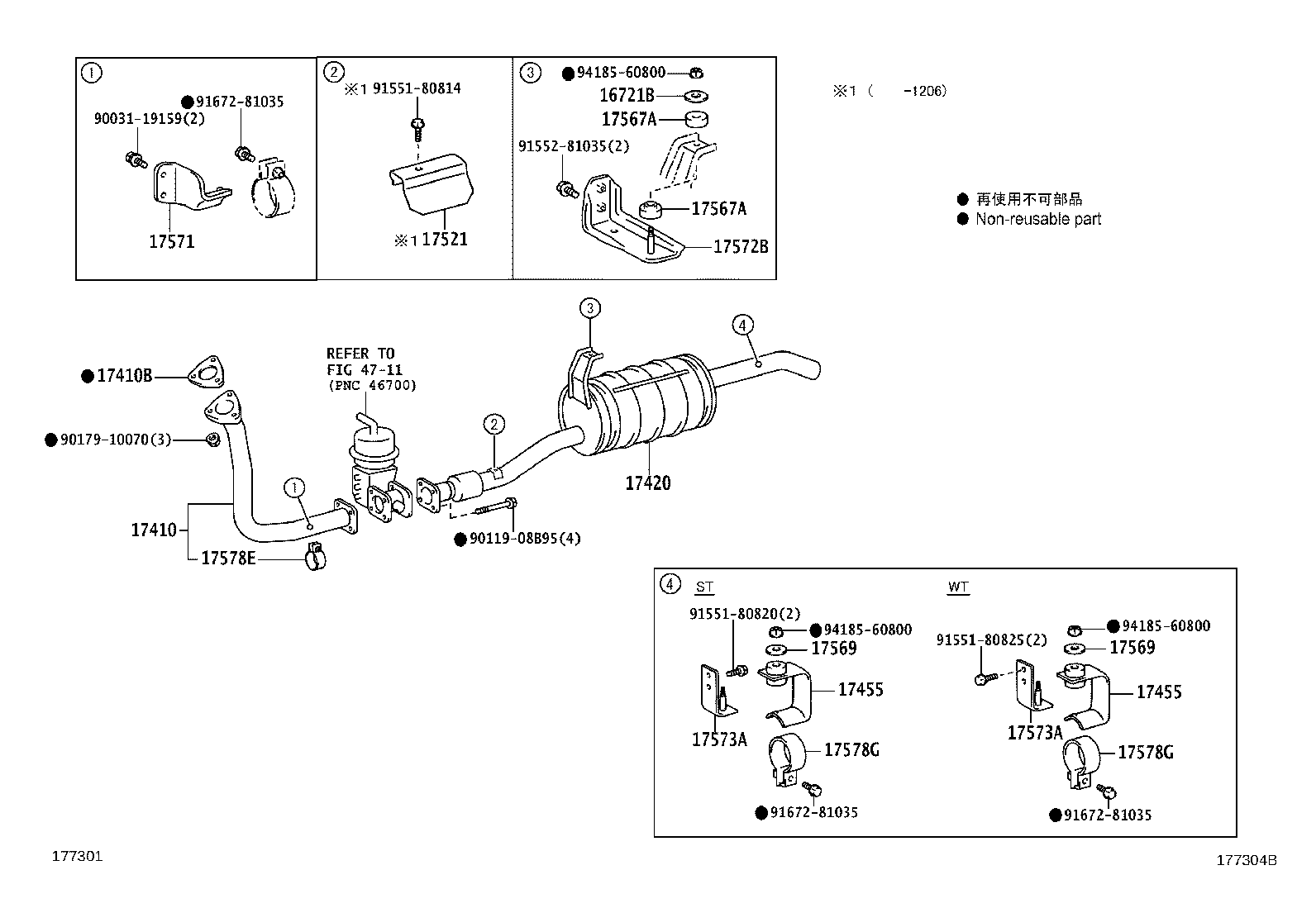

Click highlighted areas on diagram

diagram 16721B 17410 17410B 17420 17455 17455 17521 17567A 17567A 17569 17569 17571 17572B 17573A 17573A 17578E 17578G 17578G 4711 9003119159 9011908B95 9017910070 9155180814 9155180820 9155180825 9155281035 9167281035 9167281035 9167281035 9418560800 9418560800 9418560800
Part # Description Qty Price
16721B - PLATE, HOLDER
16721-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78340

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17410B - GASKET, EXHAUST PIPE
17451-E0110

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78450

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17455 - BRACKET, EXHAUST PIPE
17455-78080

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17455 - BRACKET, EXHAUST PIPE
17455-78080

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17521 - PROTECTOR, EXHAUST PIPE, FRONT NO.1
17521-78010

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 2
17569 - PLATE, EXHAUST PIPE SUPPORT
16721-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17569 - PLATE, EXHAUST PIPE SUPPORT
16721-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0230

W04D..WU600,650

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78260

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78050

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650..WT

TYPE B:REFER ILLUST.

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78050

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650..WT

TYPE B:REFER ILLUST.

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17578G - CLAMP, PIPE(FOR TAIL PIPE)
17578-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
17578G - CLAMP, PIPE(FOR TAIL PIPE)
17578-78010

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
Common parts
90031-19159
90119-08B95
90179-10070
91551-80814
91551-80820
91551-80825
91552-81035
91672-81035
94185-60800
Linked diagrams
4711
