WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

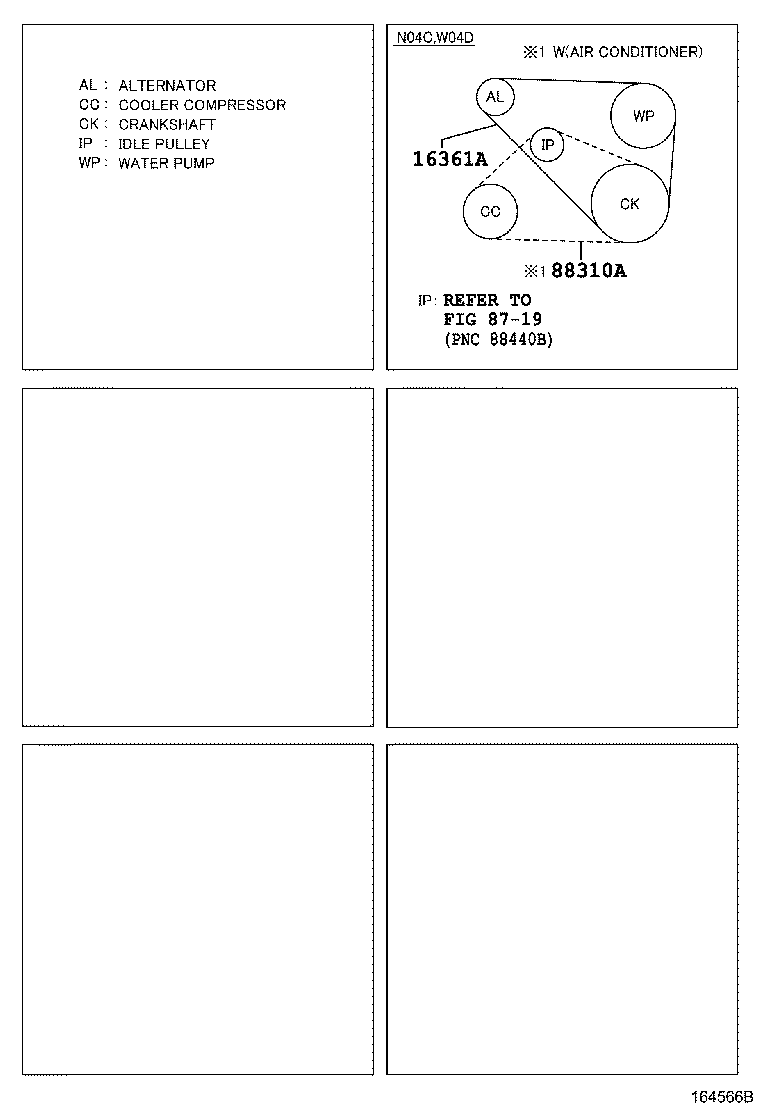

Click highlighted areas on diagram

diagram 16361A 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
SZ910-45322

W04D..WU600,650

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02594

WU600,650..GCC

L=975,AIR CONDITIONER-WITH(MANUAL)

 1
90916-02594

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

L=975,AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER

 1
Linked diagrams
8719
