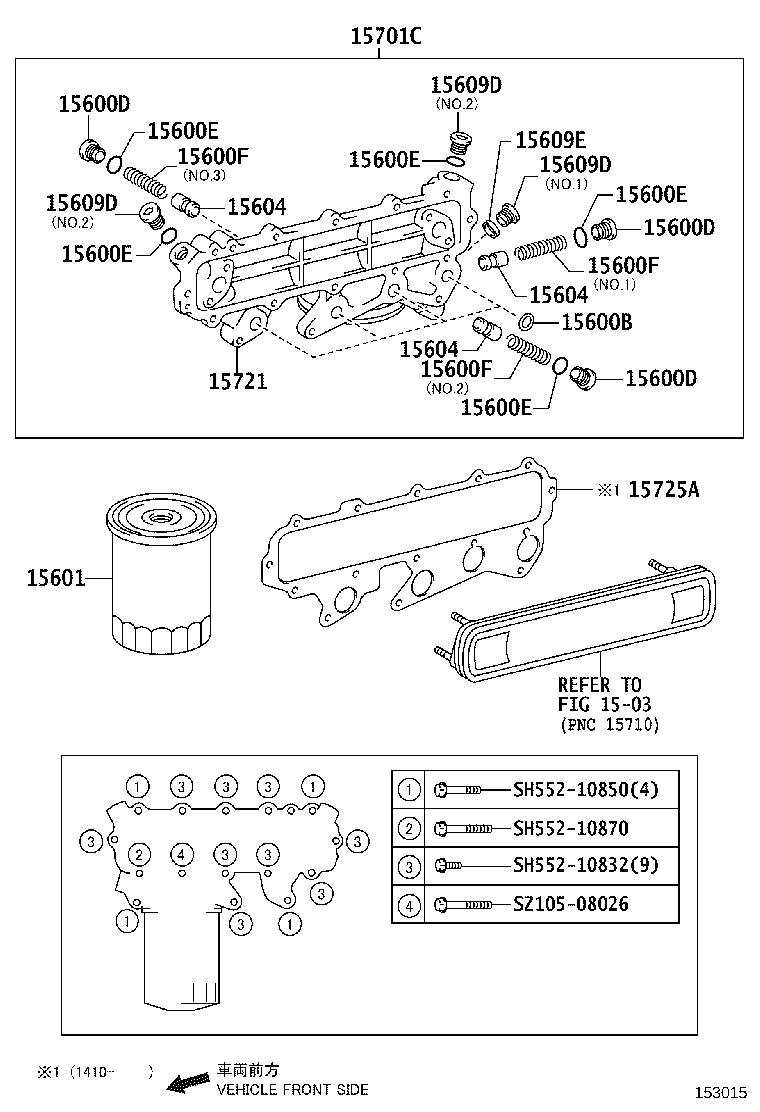

WU650L-TKMMJV (2011)
Toyota Dyna
(1107- )W04D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| SZ301-19015 |
W04D..WU600,650 |
4 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| S1571-61110 |
W04D..WU600,650 |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| S1571-61110 |
W04D..WU600,650 |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| S1571-61110 |
W04D..WU600,650 |
3 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
W04D..WU600,650 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
W04D..WU600,650 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
W04D..WU600,650 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
W04D..WU600,650 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
W04D..WU600,650 |
5 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| S1566-11250 |
W04D..WU600,650 NO.3 |
1 | ||
| S1566-11370 |
W04D..WU600,650 NO.1 |
1 | ||
| S1566-11530 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.2 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| S1566-11250 |
W04D..WU600,650 NO.3 |
1 | ||
| S1566-11370 |
W04D..WU600,650 NO.1 |
1 | ||
| S1566-11530 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.2 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| S1566-11250 |
W04D..WU600,650 NO.3 |
1 | ||
| S1566-11370 |
W04D..WU600,650 NO.1 |
1 | ||
| S1566-11530 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH NO.2 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15613-E0080 |
W04D..WU600,650 |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
W04D..WU600,650 |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
W04D..WU600,650 |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
W04D..WU600,650 |
3 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| S1572-61110 |
W04D..WU600,650 NO.2 |
2 | ||
| S1571-61070 |
W04D..WU600,650 NO.1 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| S1572-61110 |
W04D..WU600,650 NO.2 |
2 | ||
| S1571-61070 |
W04D..WU600,650 NO.1 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| S1572-61110 |
W04D..WU600,650 NO.2 |
2 | ||
| S1571-61070 |
W04D..WU600,650 NO.1 |
1 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| S9007-56166 |
W04D..WU600,650 |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| S1572-01432 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| S1570-12282 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| Common parts | ||||
| SH552-10832 | ||||
| SH552-10850 | ||||
| SH552-10870 | ||||
| SZ105-08026 | ||||
| Linked diagrams | ||||
| 1503 | ||||
