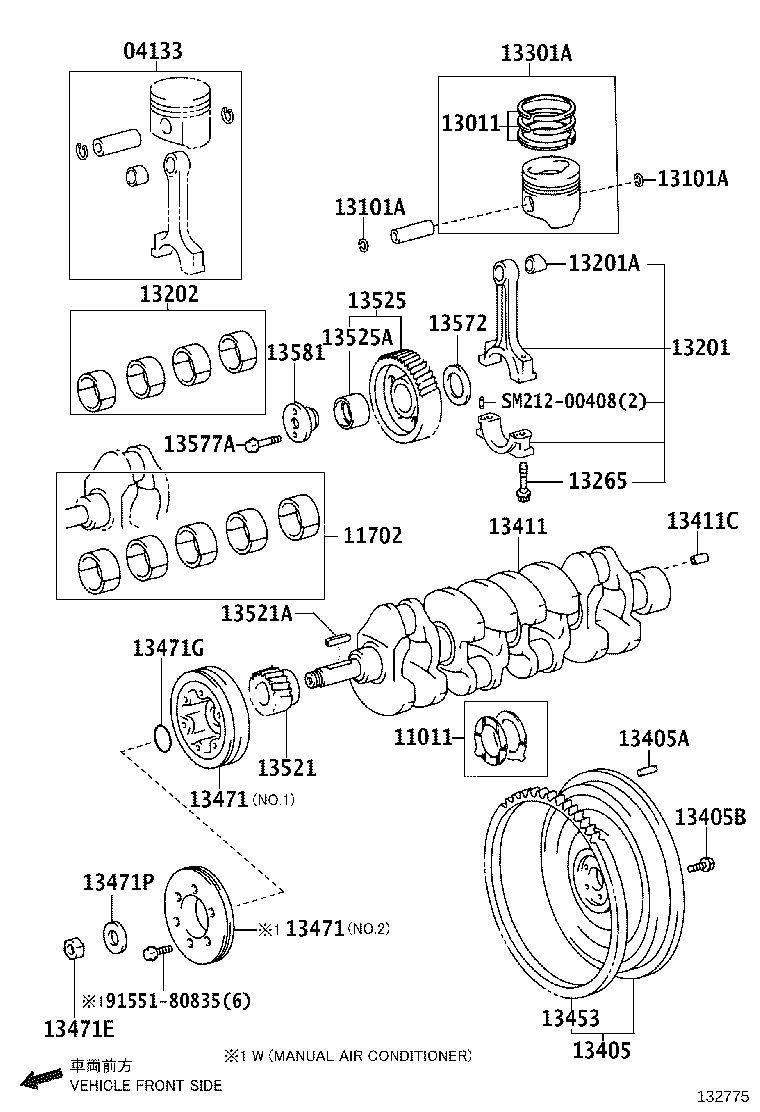

WU650L-TKMMJV (2011)
Toyota Dyna
(1107- )W04D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04133 - PIN KIT, PISTON | ||||
| 04133-E0100 |
W04D..WU600,650 |
4 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| S1101-21250 |
W04D..WU600,650 O/S 0.250 |
1 | ||
| 11011-E0030 |
W04D..WU600,650 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| S1170-11611 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH STD |
1 | ||
| S1170-61590 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 1.00 |
1 | ||
| S1170-51560 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 0.75 |
1 | ||
| S1170-41590 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 0.50 |
1 | ||
| S1170-31560 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| S1304-E0060 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| SZ520-37001 |
W04D..WU600,650 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| SZ520-37001 |
W04D..WU600,650 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13260-E0050 |
W04D..WU600,650 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| S1327-21400 |
W04D..WU600,650 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| S1320-41770 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 0.50 |
1 | ||
| S1320-11940 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH STD |
1 | ||
| S1320-31800 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 0.25 |
1 | ||
| S1320-51710 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 0.75 |
1 | ||
| S1320-61700 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH U/S 1.00 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-E0010 |
W04D..WU600,650 |
8 | ||
| 13301A - PISTON SET, W/PISTON RING | ||||
| S130B-E0K80 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-E0L90 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10008 |
W04D..WU600,650 L=24,OD=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| S1345-51820 |
W04D..WU600,650 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-E0071 |
W04D..WU600,650 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| SZ910-29013 |
W04D..WU600,650 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-E0090 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78090 |
W04D..WU600,650..GCC AIR CONDITIONER-WITH(MANUAL),NO.2 |
1 | ||
| 13470-78090 |
W04D..WU600,650..CBU;W04D..WU600,650..GEN..IV3;W04D..WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER,NO.2 |
1 | ||
| 13470-E0560 |
W04D..WU600,650 NO.1 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78090 |
W04D..WU600,650..GCC AIR CONDITIONER-WITH(MANUAL),NO.2 |
1 | ||
| 13470-78090 |
W04D..WU600,650..CBU;W04D..WU600,650..GEN..IV3;W04D..WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER,NO.2 |
1 | ||
| 13470-E0560 |
W04D..WU600,650 NO.1 |
1 | ||
| 13471E - NUT(FOR CRANKSHAFT PULLEY) | ||||
| SZ170-27001 |
W04D..WU600,650 |
1 | ||
| 13471G - RING, O(FOR CRANKSHAFT PULLEY) | ||||
| SZ301-41001 |
W04D..WU600,650 |
1 | ||
| 13471P - SPACER(FOR CRANKSHAFT PULLEY) | ||||
| SZ910-16034 |
W04D..WU600,650 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| S1352-11660 |
W04D..WU600,650 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| SM171-01028 |
W04D..WU600,650 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-E0300 |
W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH |
1 | ||
| 13525A - BUSH, IDLE GEAR | ||||
| SZ384-50023 |
W04D..WU600,650 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| S1357-21320 |
W04D..WU600,650 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| SZ910-24152 |
W04D..WU600,650 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-E0021 |
W04D..WU600,650 |
1 | ||
| Common parts | ||||
| 91551-80835 | ||||
| SM212-00408 | ||||
