WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

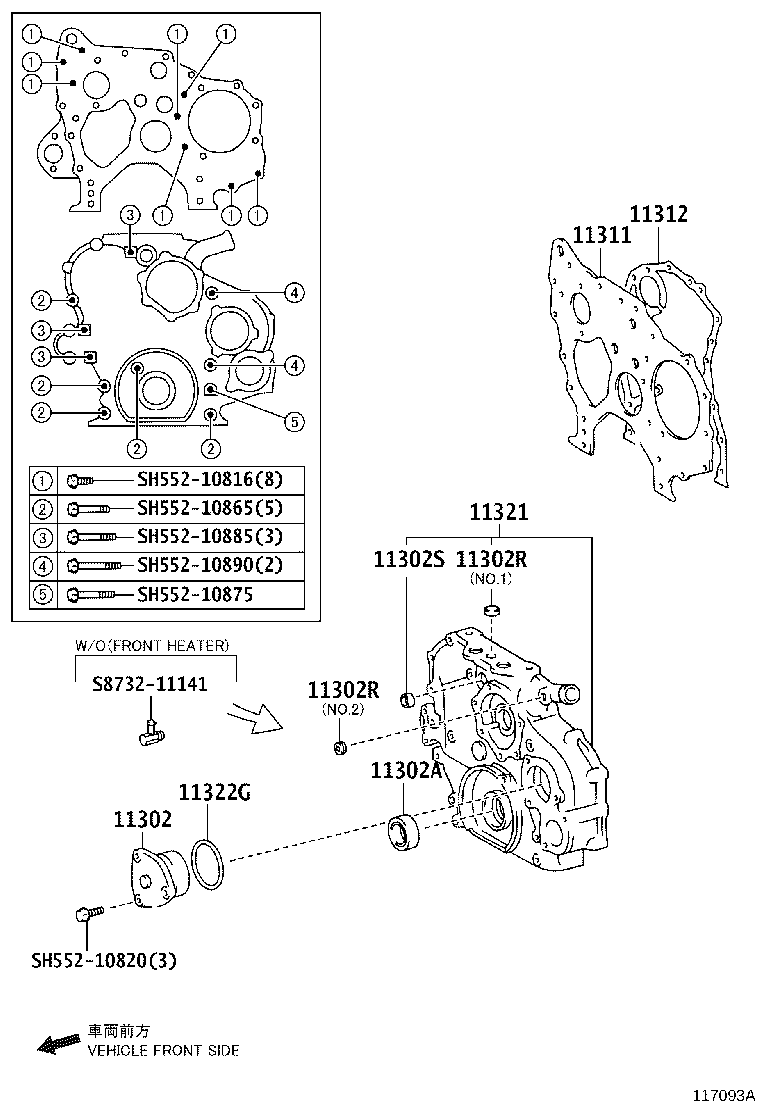

ILLUST NO. 1 OF 2(1107- )W04D

Click highlighted areas on diagram

diagram 11302 11302A 11302R 11302R 11302S 11311 11312 11321 11322G S873211141 SH55210816 SH55210820 SH55210865 SH55210875 SH55210885 SH55210890
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
S1369-01210

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
SZ313-58001

W04D..WU600,650

 1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
SN490-02611

W04D..WU600,650..CBU;W04D..WU600,650..GEN..IV3;W04D..WU600..ST..GCC..IV3

NO.2

 1
SZ331-22003

W04D..WU600,650

NO.1

 1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
SN490-02611

W04D..WU600,650..CBU;W04D..WU600,650..GEN..IV3;W04D..WU600..ST..GCC..IV3

NO.2

 1
SZ331-22003

W04D..WU600,650

NO.1

 1
11302S - PLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)
SZ331-32002

W04D..WU600,650

 1
11311 - PLATE, FRONT END
S1131-11261

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

W04D..WU600,650

 1
11321 - CASE, TIMING GEAR
11310-E0050

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11322G - RING, O(FOR TIMING GEAR COVER)
SZ301-81002

W04D..WU600,650

 1
Common parts
S8732-11141
SH552-10816
SH552-10820
SH552-10865
SH552-10875
SH552-10885
SH552-10890

ILLUST NO. 2 OF 2(1107- )W04D

Click highlighted areas on diagram

diagram 11351 11354 11381A 12281 21814E0120 SH55210816 SH55210832 SH55211020 SZ11614025 SZ34510003
Part # Description Qty Price
11351 - HOUSING, FLYWHEEL
S1135-16741

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
S1130-61400

W04D..WU600,650

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00002

W04D..WU600,650

 1
12281 - HANGER, ENGINE, NO.1
S1228-12240

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
Common parts
21814-E0120
SH552-10816
SH552-10832
SH552-11020
SZ116-14025
SZ345-10003
