WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D..WT..DCRTH ; (1107- )W04D..WU600..ST..CBU ; (1107- )W04D..WU6

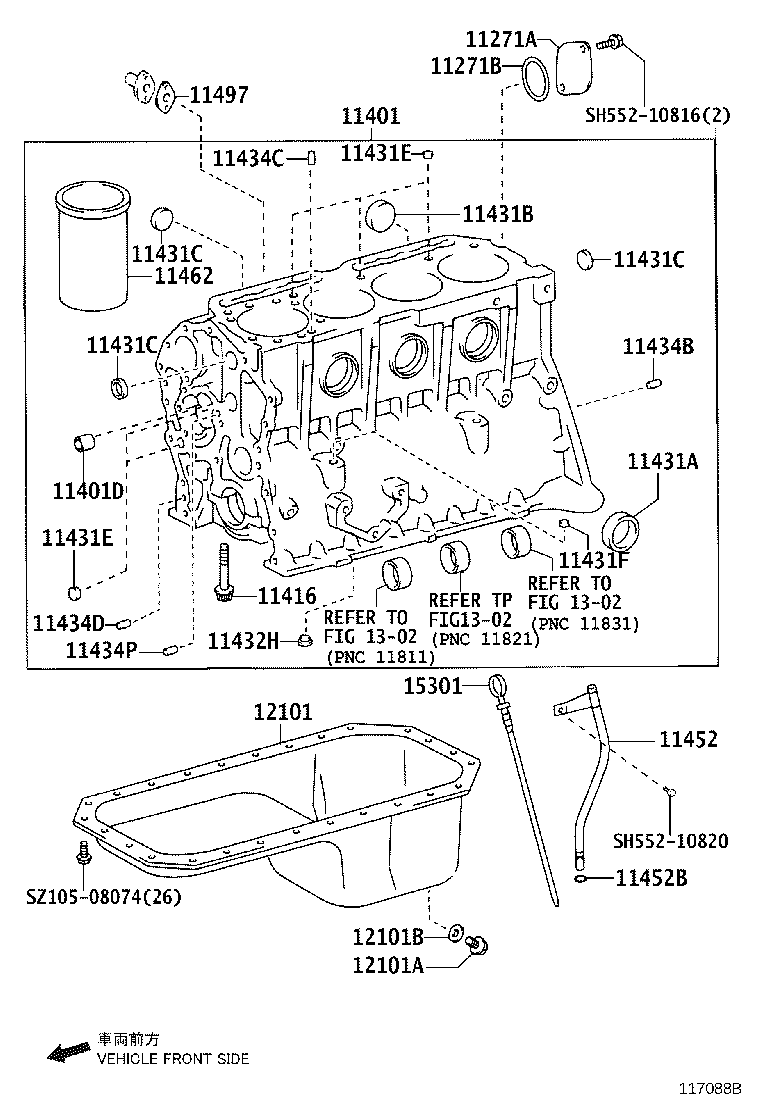

Click highlighted areas on diagram

diagram 11271A 11271B 11401 11401D 11416 11431A 11431B 11431C 11431C 11431C 11431E 11431E 11431F 11432H 11434B 11434C 11434D 11434P 11452 11452B 11462 11497 12101 12101A 12101B 1302 1302 1302 15301 SH55210816 SH55210820 SZ10508074
Part # Description Qty Price
11271A - COVER, CYLINDER BLOCK, REAR
S1149-91050

W04D..WU600,650

 1
11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE)
SN732-10693

W04D..WU600,650

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-E0411

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11401D - BUSH(FOR OIL PUMP COVER)
15117-E0030

W04D..WU600,650

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
S1152-11410

W04D..WU600,650

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
SN411-05016

W04D..WU600,650

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
SN411-04016

W04D..WU600,650

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
SN411-03616

W04D..WU600,650

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
SN411-03616

W04D..WU600,650

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
SN411-03616

W04D..WU600,650

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
SN411-01712

W04D..WU600,650

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
SN411-01712

W04D..WU600,650

 5
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
SZ331-14001

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
SN491-02109

W04D..WU600,650

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
SM212-01224

W04D..WU600,650

L=24,OD=12

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
SZ250-08007

W04D..WU600,650

L=16,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
SZ250-08008

W04D..WU600,650

L=24,OD=8

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
SM212-00510

W04D..WU600,650

L=10,OD=5

 1
11452 - GUIDE, OIL LEVEL GAGE
S1210-23920

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
SZ301-10025

W04D..WU600,650

 1
11462 - LINER, CYLINDER
S1146-71792

W04D..WU600,650

MARK C

 4
S1146-71762

W04D..WU600,650

MARK A

 4
S1146-71772

W04D..WU600,650

MARK B

 4
11497 - GASKET, CYLINDER BLOCK OIL HOLE
S2413-51161

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
12101 - PAN SUB-ASSY, OIL
S1211-12730

W04D..WU600,650

 1
12101A - PLUG(FOR OIL PAN DRAIN)
SZ341-18014

W04D..WU600,650

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
SZ430-18009

W04D..WU600,650

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
S1530-13262

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
Common parts
SH552-10816
SH552-10820
SZ105-08074
Linked diagrams
1302
