WU650L-TKMMJV (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )W04D

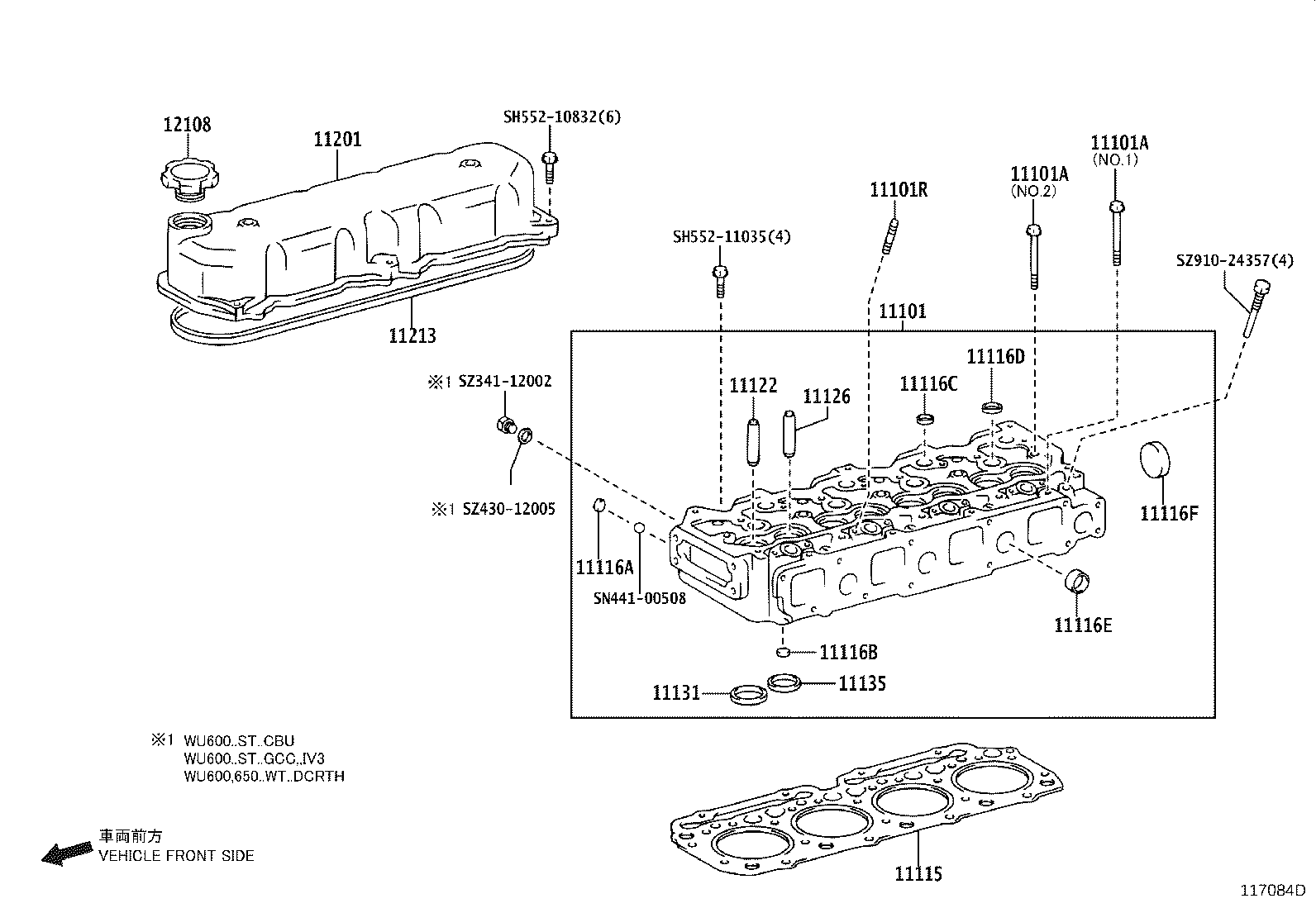

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101R 11115 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11131 11135 11201 11213 12108 SH55210832 SH55211035 SN44100508 SZ34112002 SZ43012005 SZ91024357
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-E0A31

W04D..WU600,650

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
S1115-E0030

W04D..WU600,650

NO.1

 13
S1115-E0040

W04D..WU600,650

NO.2

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
S1115-E0030

W04D..WU600,650

NO.1

 13
S1115-E0040

W04D..WU600,650

NO.2

 5
11101R - BOLT, STUD(FOR FUEL PIPE)
SJ122-00845

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 8
11115 - GASKET, CYLINDER HEAD
11115-E0030

W04D..WU600,650

 1
11116A - PLUG, TIGHT, NO.1
SN411-01412

W04D..WU600,650

 4
11116B - PLUG, TIGHT, NO.2
SZ331-22004

W04D..WU600,650

 4
11116C - PLUG, TIGHT, NO.3
SZ331-24002

W04D..WU600,650

 4
11116D - PLUG, TIGHT, NO.4
SZ331-26001

W04D..WU600,650

 4
11116E - PLUG, TIGHT, NO.5
SZ331-30002

W04D..WU600,650

 4
11116F - PLUG, TIGHT, NO.6
SN411-05016

W04D..WU600,650

 1
11122 - BUSH, INTAKE VALVE GUIDE
S1112-21250

W04D..WU600,650

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
S1112-21250

W04D..WU600,650

STD

 4
11131 - SEAT, INTAKE VALVE
S1113-11490

W04D..WU600,650

STD

 4
11135 - SEAT, EXHAUST VALVE
11135-E0070

W04D..WU600,650

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-E0240

W04D..WU600,650

 1
11213 - GASKET, CYLINDER HEAD COVER
S1121-31550

W04D..WU600,650

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-E0010

W04D..WU600,650

 1
Common parts
SH552-10832
SH552-11035
SN441-00508
SZ341-12002
SZ430-12005
SZ910-24357
