WU650L-TKMMJ (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

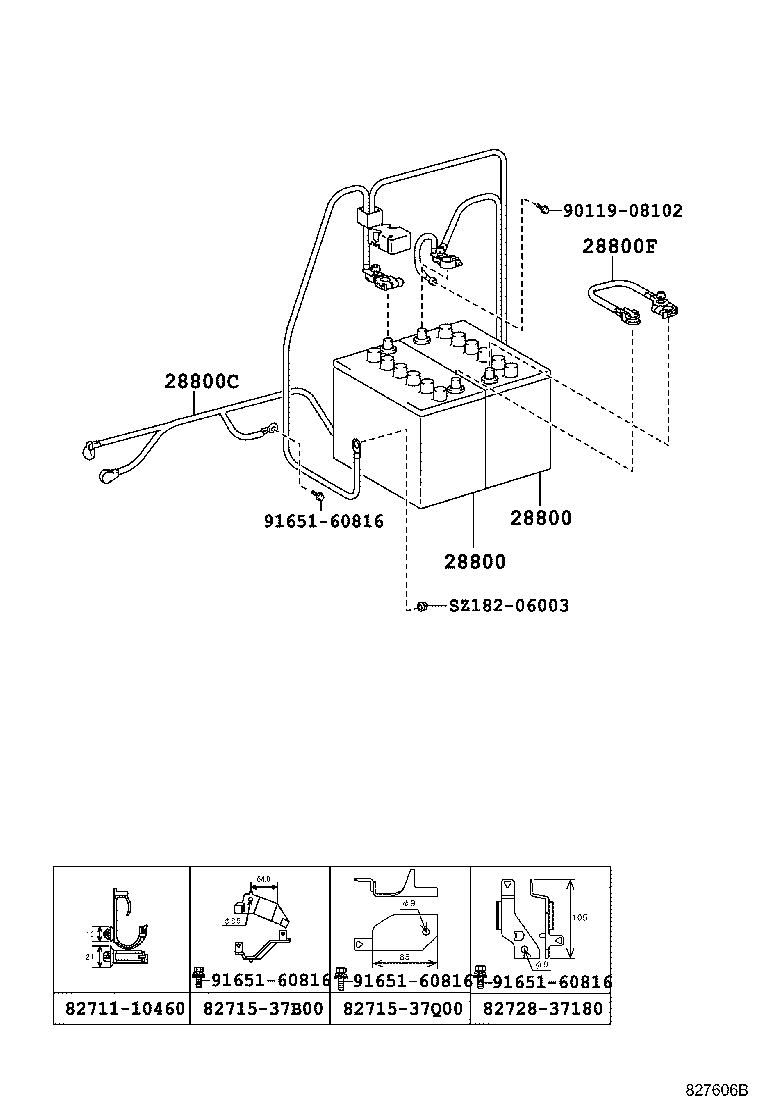

Click highlighted areas on diagram

diagram 28800 28800 28800C 28800F 8271110460 8271537B00 8271537Q00 8272837180 9011908102 9165160816 9165160816 9165160816 9165160816 SZ18206003
Part # Description Qty Price
28800 - BATTERY
28800-56080

W04D..WU600,650

55D23L,FURUKAWA

 2
28800-42041

W04D..WU600,650

55D23L,YUASA

 2
28800-64011

W04D..WU600,650

55D23L,GS YUASA

 2
28800-78101

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

95D31L,BATTERY-95D31L X 2,FURUKAWA

 2
28800-64012

W04D..WU600,650

55D23L,GS YUASA

 2
28800-66013

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

105D31L,BATTERY-95D31L X 2,GS YUASA

 2
28800-56081

W04D..WU600,650

55D23L,FURUKAWA

 2
28800-78120

W04D..WU600,650

95D31L,BATTERY-95D31L X 2,GS YUASA

 2
28800-56082

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

55D23L,FURUKAWA

 2
28800-78100

W04D..WU600,650

95D31L,BATTERY-95D31L X 2,FURUKAWA

 2
28800-64012

W04D..WU600,650

55D23L,GS YUASA

 2
28800-64181

W04D..WU600,650

95D31L,BATTERY-95D31L X 2

 2
28800 - BATTERY
28800-56080

W04D..WU600,650

55D23L,FURUKAWA

 2
28800-42041

W04D..WU600,650

55D23L,YUASA

 2
28800-64011

W04D..WU600,650

55D23L,GS YUASA

 2
28800-78101

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

95D31L,BATTERY-95D31L X 2,FURUKAWA

 2
28800-64012

W04D..WU600,650

55D23L,GS YUASA

 2
28800-66013

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

105D31L,BATTERY-95D31L X 2,GS YUASA

 2
28800-56081

W04D..WU600,650

55D23L,FURUKAWA

 2
28800-78120

W04D..WU600,650

95D31L,BATTERY-95D31L X 2,GS YUASA

 2
28800-56082

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

55D23L,FURUKAWA

 2
28800-78100

W04D..WU600,650

95D31L,BATTERY-95D31L X 2,FURUKAWA

 2
28800-64012

W04D..WU600,650

55D23L,GS YUASA

 2
28800-64181

W04D..WU600,650

95D31L,BATTERY-95D31L X 2

 2
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37G41

W04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH

 1
82122-37G40

W04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37220

N04C,W04D..WU600,650,XZU600,650

 1
82123-37260

N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650

 1
Common parts
82711-10460
82715-37B00
82715-37Q00
82728-37180
90119-08102
91651-60816
SZ182-06003
