WU650L-TKMMJ (2011)
Toyota Dyna

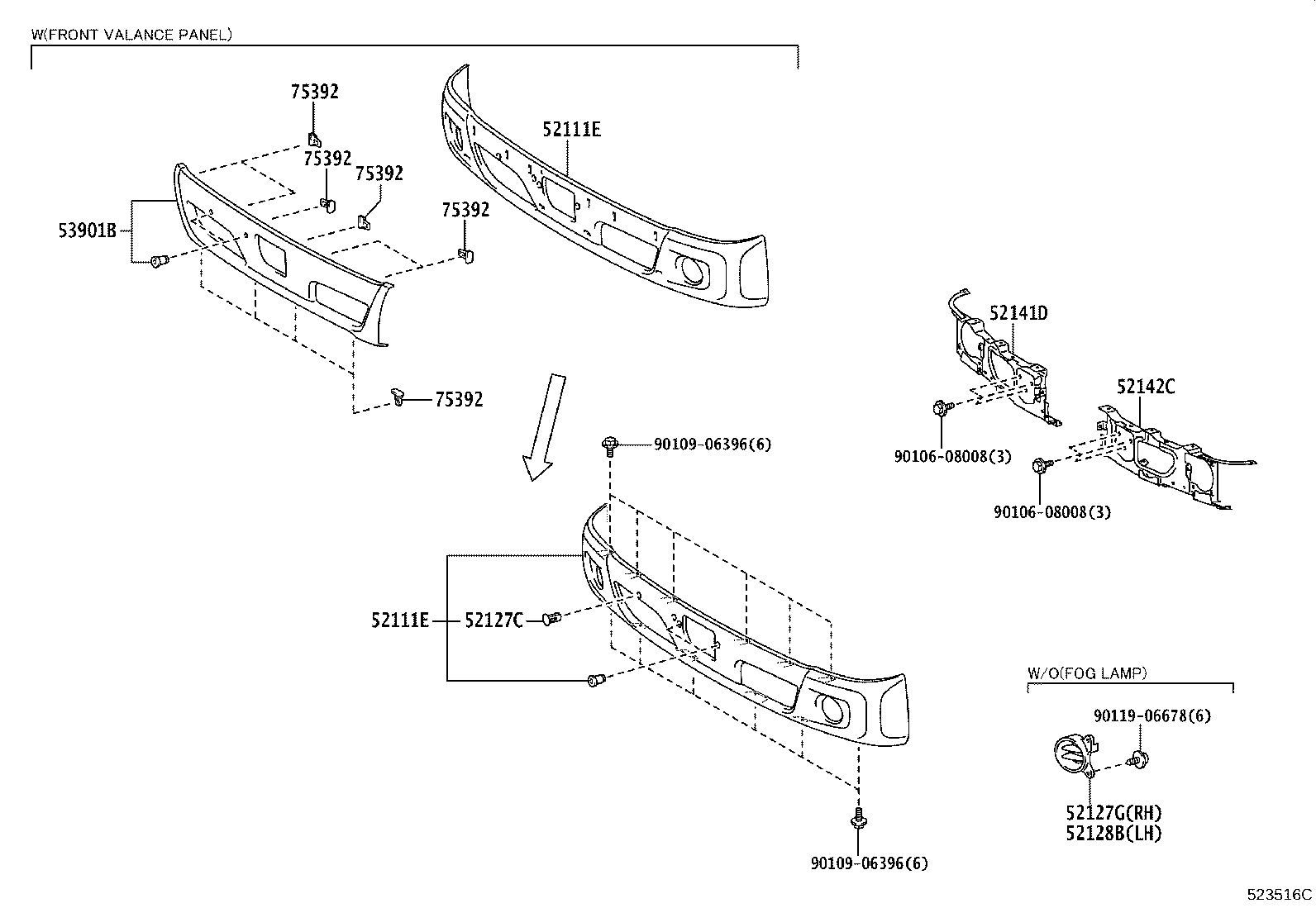

ILLUST NO. 1 OF 3(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650
STEEL BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-37300 |
WU600,650 NO PAINT REQ. |
1 | ||
| 52101-37171A0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),WHITE,058 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),WHITE,058 |
1 | ||
| 52101-37916 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),WHITE,058 |
1 | ||
| 52111-37301 |
WU600,650,XZU600,650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37171B0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),SILVER ME.,199 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,WHITE,058 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,SILVER ME.,199 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),BLUE,8P0 |
1 | ||
| 52111-37550A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52101-37A50 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52111-37550B1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52111-37550H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37171J1 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,TURQUOISE,766 |
1 | ||
| 52111-37550J0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37181 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52101-37171H0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,BLUE,8P0 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,WHITE,058 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,SILVER ME.,199 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-37120 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52011-37033 |
WU600,650 |
1 | ||
| 52011-37034 |
WU600,650,XZU600,650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52141-37120 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52011-37082 |
WU600,650,XZU600,650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52011-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52011-37080 |
WU600,650,XZU600,650 |
1 | ||
| 52011-37081 |
WU600,650,XZU600,650 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-37100 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52012-37032 |
WU600,650 |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52012-37033 |
WU600,650,XZU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52142-37100 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52012-37082 |
WU600,650,XZU600,650 |
1 | ||
| 52012-37080 |
WU600,650,XZU600,650 |
1 | ||
| 52012-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52012-37081 |
WU600,650,XZU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| Common parts | ||||
| 90106-08008 | ||||
| 90119-08521 | ||||
| 90179-08123 | ||||
ILLUST NO. 1 OF 3(1107-1701)
RESIN BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-37300 |
WU600,650 NO PAINT REQ. |
1 | ||
| 52101-37171A0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),WHITE,058 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),WHITE,058 |
1 | ||
| 52101-37916 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),WHITE,058 |
1 | ||
| 52111-37301 |
WU600,650,XZU600,650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37171B0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),SILVER ME.,199 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,WHITE,058 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,SILVER ME.,199 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),BLUE,8P0 |
1 | ||
| 52111-37550A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52101-37A50 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52111-37550B1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52111-37550H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37171J1 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,TURQUOISE,766 |
1 | ||
| 52111-37550J0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37181 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52101-37171H0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,BLUE,8P0 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,WHITE,058 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,SILVER ME.,199 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-37120 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52011-37033 |
WU600,650 |
1 | ||
| 52011-37034 |
WU600,650,XZU600,650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52141-37120 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52011-37082 |
WU600,650,XZU600,650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52011-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52011-37080 |
WU600,650,XZU600,650 |
1 | ||
| 52011-37081 |
WU600,650,XZU600,650 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-37100 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52012-37032 |
WU600,650 |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52012-37033 |
WU600,650,XZU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52142-37100 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52012-37082 |
WU600,650,XZU600,650 |
1 | ||
| 52012-37080 |
WU600,650,XZU600,650 |
1 | ||
| 52012-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52012-37081 |
WU600,650,XZU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| Common parts | ||||
| 90106-08008 | ||||
| 90119-08521 | ||||
| 90119-08699 | ||||
| 90179-06127 | ||||
| 90950-03128 | ||||
ILLUST NO. 1 OF 3(1701- )XZU600..GCC ; (1701- )WU600,650,XZU650 ; (1911- )XZU600..GEN
RESIN BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-37300 |
WU600,650 NO PAINT REQ. |
1 | ||
| 52101-37171A0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),WHITE,058 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),WHITE,058 |
1 | ||
| 52101-37916 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),WHITE,058 |
1 | ||
| 52111-37301 |
WU600,650,XZU600,650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37171B0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),SILVER ME.,199 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,WHITE,058 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,SILVER ME.,199 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),BLUE,8P0 |
1 | ||
| 52111-37550A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52101-37A50 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52111-37550B1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52111-37550H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37171J1 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,TURQUOISE,766 |
1 | ||
| 52111-37550J0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37181 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52101-37171H0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,BLUE,8P0 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,WHITE,058 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,SILVER ME.,199 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-37300 |
WU600,650 NO PAINT REQ. |
1 | ||
| 52101-37171A0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),WHITE,058 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),WHITE,058 |
1 | ||
| 52101-37916 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),WHITE,058 |
1 | ||
| 52111-37301 |
WU600,650,XZU600,650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37171B0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),SILVER ME.,199 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),SILVER ME.,199 |
1 | ||
| 52101-37171A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,WHITE,058 |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,BLUE,8P0 |
1 | ||
| 52101-37171B0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,SILVER ME.,199 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52101-37171J1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W),BLUE,8P0 |
1 | ||
| 52111-37550A0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52101-37A50 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52101-37171H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL,TURQUOISE,766 |
1 | ||
| 52101-37181 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52111-37550B1 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52111-37550H0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37171J1 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),BLUE,8P0 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,TURQUOISE,766 |
1 | ||
| 52111-37550J0 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37181 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52101-37171H0 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W),TURQUOISE,766 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),BLUE,8P0 |
1 | ||
| 52101-37A70J0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,BLUE,8P0 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,WHITE,058 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),SILVER ME.,199 |
1 | ||
| 52101-37A70H0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),TURQUOISE,766 |
1 | ||
| 52101-37A70B1 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN,SILVER ME.,199 |
1 | ||
| 52101-37A70A0 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,RESIN&FRONT FOG LAMP-WITH(LED),WHITE,058 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-37020 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52127G - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-37040 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-37040 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-37120 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52011-37033 |
WU600,650 |
1 | ||
| 52011-37034 |
WU600,650,XZU600,650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52141-37120 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52011-37082 |
WU600,650,XZU600,650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52141-37120 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52011-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52141-37120 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52011-37080 |
WU600,650,XZU600,650 |
1 | ||
| 52011-37081 |
WU600,650,XZU600,650 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-37100 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52012-37032 |
WU600,650 |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52012-37033 |
WU600,650,XZU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GEN FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52142-37100 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PLATED,STEEL |
1 | ||
| 52012-37082 |
WU600,650,XZU600,650 |
1 | ||
| 52012-37080 |
WU600,650,XZU600,650 |
1 | ||
| 52012-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 52142-37100 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 52012-37081 |
WU600,650,XZU600,650 |
1 | ||
| 52142-37100 |
WU600,650..GEN FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 53901B - PANEL SUB-ASSY, FRONT VALANCE | ||||
| 53901-37030 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED) |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED) |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED) |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED) |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED) |
10 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
WU600,650,XZU600,650 FRONT BUMPER-PAINTED(RESIN & PLATING GARNISH)&FRONT FOG LAMP-WITH(LED) |
10 | ||
| Common parts | ||||
| 90106-08008 | ||||
| 90109-06396 | ||||
| 90119-06678 | ||||
ILLUST NO. 2 OF 3(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650
FOG LAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-37010 |
XZU600..GCC;WU600,650,XZU650 NO PAINT REQ.,FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52030-37010 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 NO PAINT REQ.,FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52030-37010 |
XZU600..GCC;WU600,650,XZU650 NO PAINT REQ.,FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-37010 |
XZU600..GCC;WU600,650,XZU650 NO PAINT REQ.,FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52040-37010 |
XZU600..GCC;WU600,650,XZU650 NO PAINT REQ.,FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52040-37010 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 NO PAINT REQ.,FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-37030 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52125-37030 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52125-37030 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-37030 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52126-37030 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52126-37030 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81610-37180 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 81610-37180 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 81610-37180 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81620-37180 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 81620-37180 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 81620-37180 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52127-37010 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52127-37010 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52127-37010 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52128-37010 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52128-37010 |
XZU600..GCC;WU600,650,XZU650 FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 52128-37010 |
WU600,650..GEN..CBU;WU600..ST..GEN..IV3;WU600,650,XZU600,650..WT..IV3 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| Common parts | ||||
| 90119-06678 | ||||
| 90167-50063 | ||||
| 90168-50077 | ||||
| 90467-07082C0 | ||||
| Linked diagrams | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
