WU600L-TKMMJV3 (2011)
Toyota Dyna

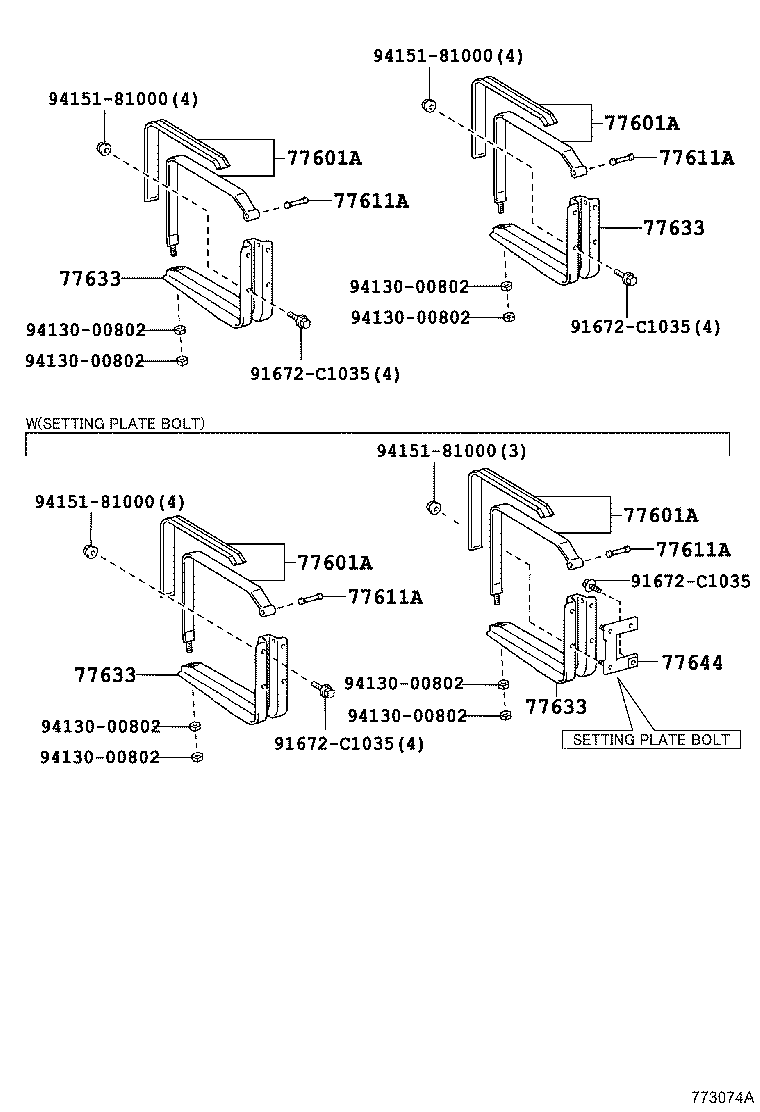

ILLUST NO. 2 OF 3(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650
FUEL TANK STAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-37102 |
WU600..ST..CBU;WU600..WT..DCRTH POWER TAKE OFF-VACUUM TYPE 15KG |
1 | ||
| 77644-37101 |
WU600..ST..CBU;WU600..WT..DCRTH;WU600..ST..GCC..IV3 POWER TAKE OFF-VACUUM TYPE 15KG |
1 | ||
| 77644-37102 |
WU600..WT..DCRTH..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER |
1 | ||
| 77644-37101 |
WU600..WT..DCRTH..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER |
1 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||

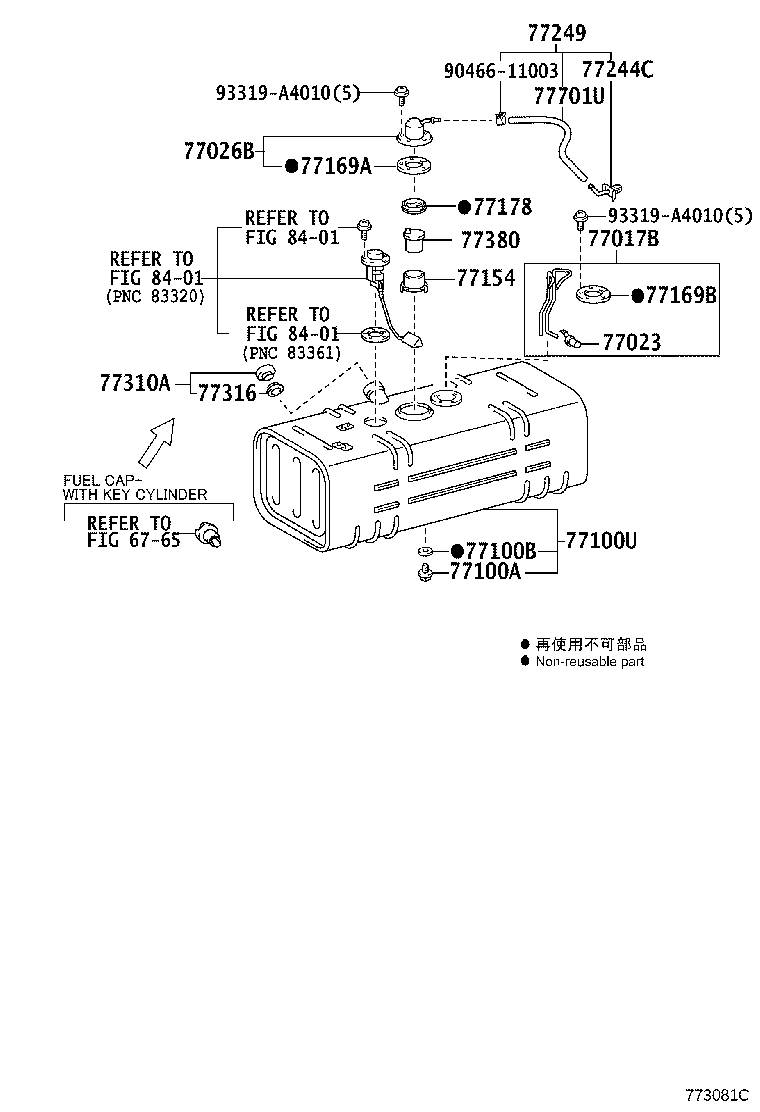

ILLUST NO. 1 OF 3(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37090 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37470 |
WU600;XZU600..GCC 780X310X385 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU600..GCC;WU600,650,XZU650 *H,L=340 |
1 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1107- )WU600,650
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37E20 |
WU600 |
1 | ||
| 77205-37E21 |
WU600 |
1 | ||
| 77205-37E22 |
WU600;XZU600..GCC |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37K00 |
WU600,650 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12016 |
XZU600..GCC;WU600,650,XZU650 L=160 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12024 |
WU600;XZU600..GCC L=240 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12024 |
WU600;XZU600..GCC L=240 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12024 |
WU600,650 L=240 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95337-12017 |
WU600,650 L=170 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-37750 |
WU600,650 NO.1:REFER ILLUST. |
1 | ||
| 77252-37760 |
WU600,650 NO.2:REFER ILLUST. |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-37750 |
WU600,650 NO.1:REFER ILLUST. |
1 | ||
| 77252-37760 |
WU600,650 NO.2:REFER ILLUST. |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU600..GCC;WU600,650,XZU650 L=160 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
WU600;XZU600..GCC L=260 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
WU600;XZU600..GCC L=260 |
1 | ||
| Common parts | ||||
| 90034-01010 | ||||
| 90202-14004 | ||||
| 90467-18008 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
