WU600L-TKMLK3 (2011)
Toyota Dyna
ILLUST NO. 6 OF 8(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650 ; (1911- )XZU600..GEN

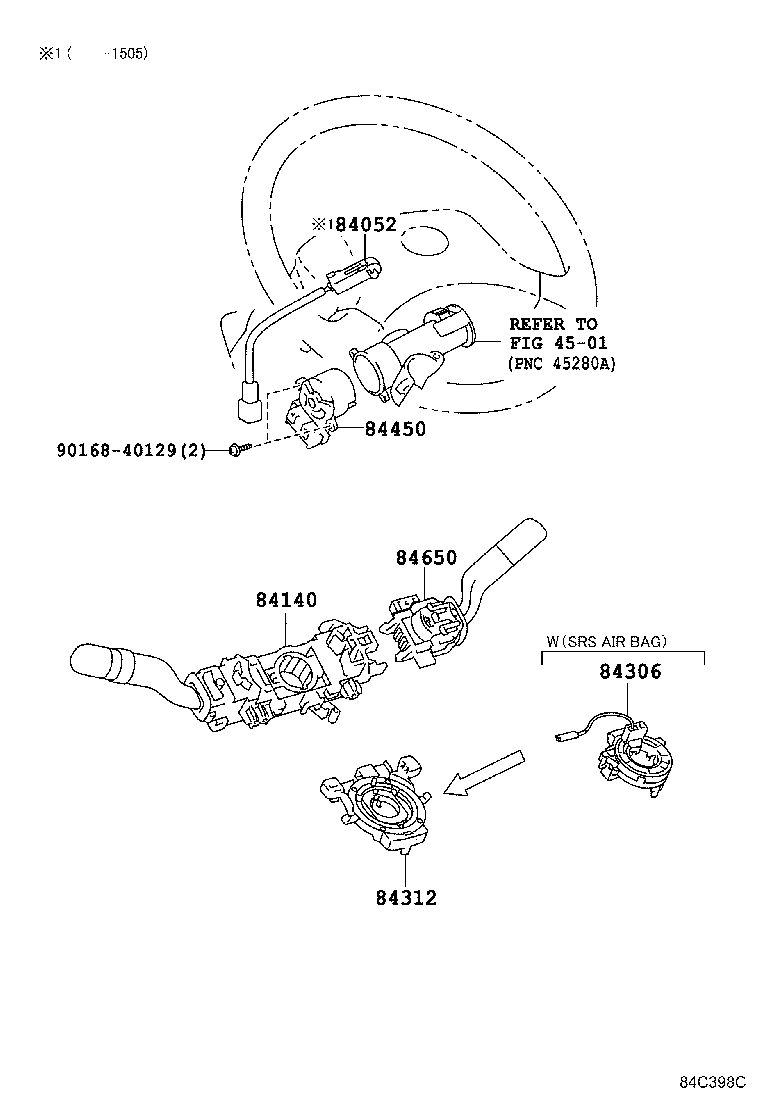

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
WU600,650 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37171 |
WU600,650..GEN FRONT FOG LAMP-WITH(YELLOW 24V 25W) |
1 | ||
| 84140-37171 |
WU600,650,XZU600,650 FRONT FOG LAMP-WITH(WHITE 24V 25W) |
1 | ||
| 84140-37161 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84140-37171 |
WU600,650,XZU600,650 FRONT FOG LAMP-WITH(WHITE 24V 70W) |
1 | ||
| 84140-37171 |
XZU600..GCC;WU600,650,XZU650 FRONT FOG LAMP-WITH(LED) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-37011 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84312-37010 |
WU600,650 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37330 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 8(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

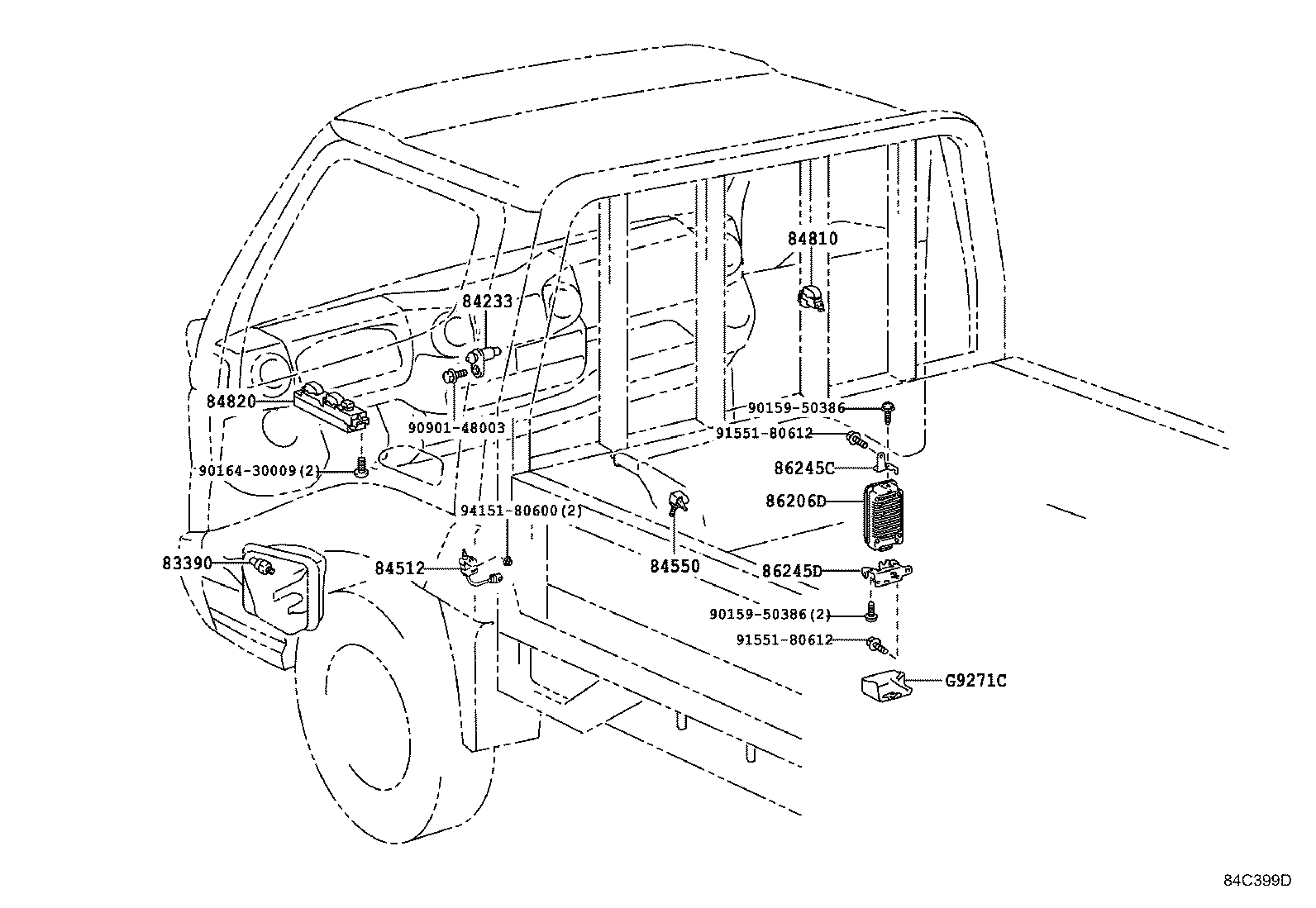

DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37080 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XZU600..GCC;WU600,650,XZU650 POWER WINDOW-WITH |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37033 |
XZU600..GCC;WU600,650,XZU650 POWER WINDOW-WITH |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90901-48003 | ||||
| 91551-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 8(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

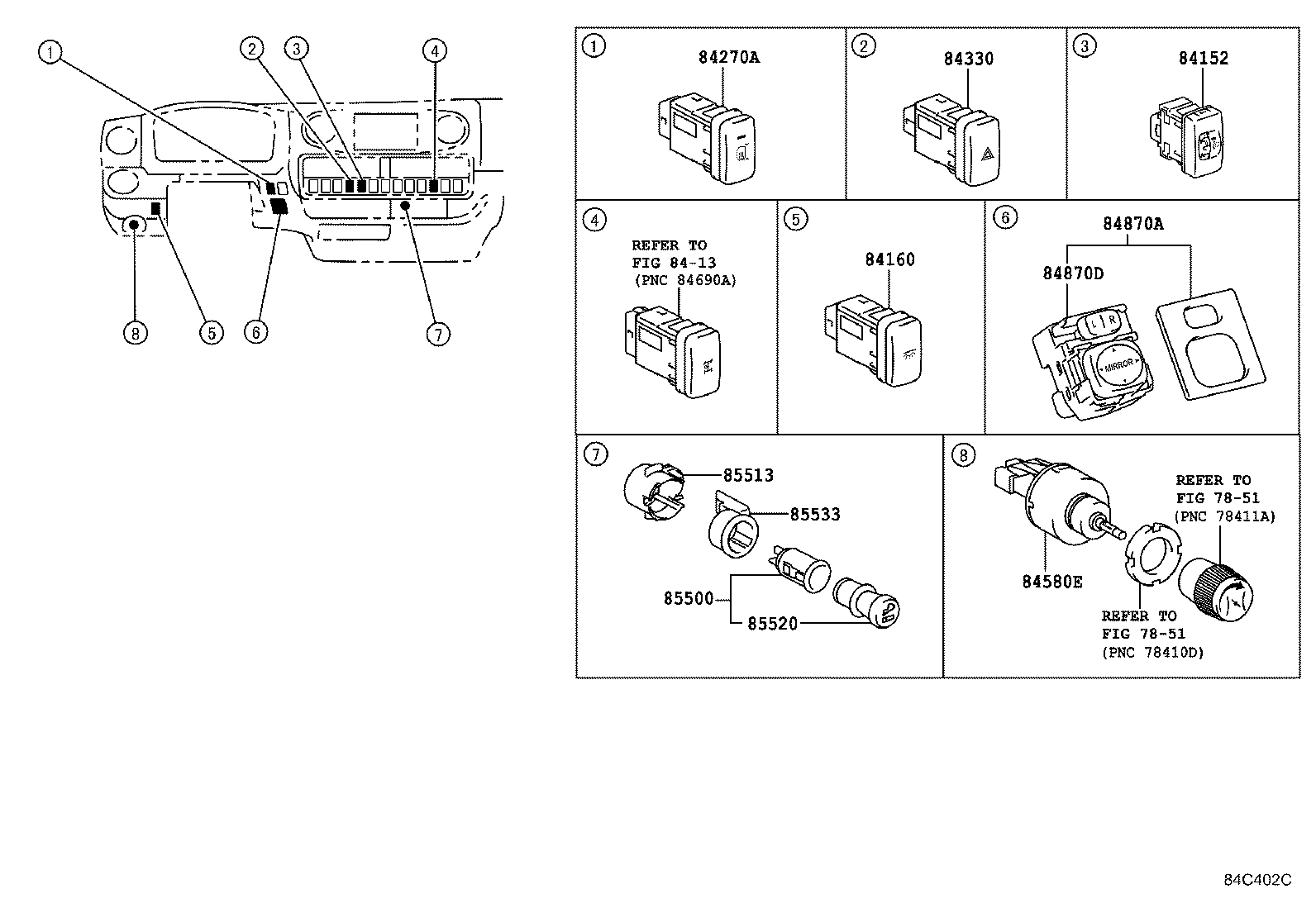

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XZU600..GCC;WU600,650,XZU650 ROOM LAMP-WITH(LED LAMP) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
WU600,650..GEN OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS,*MIH,*RCM |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
WU600,650..GEN OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS,*MIH,*RCM |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
WU600,650..GEN OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS,*MIH,*RCM |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37050 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
ILLUST NO. 4 OF 8(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

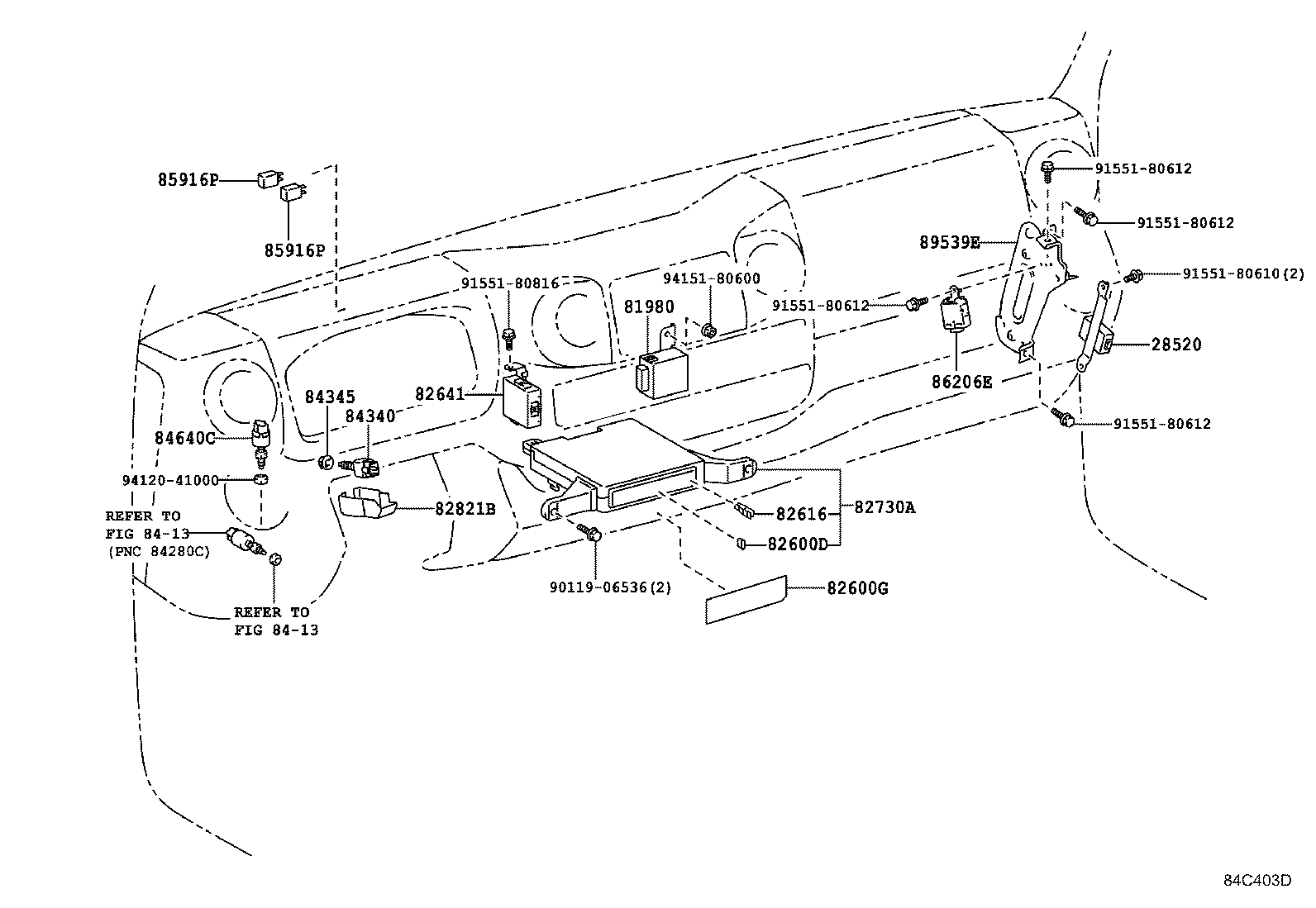

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28520 - TIMER ASSY, PREHEATING | ||||
| 28520-78040 |
W04D..WU600,650..GEN GLOW PLUG-WITH |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37300 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
XZU600..GCC;WU600,650,XZU650 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
XZU600..GCC;WU600,650,XZU650 25A,MINI FUSE |
1 | ||
| 90982-09023 |
XZU600..GCC;WU600,650,XZU650 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
XZU600..GCC;WU600,650,XZU650 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
XZU600..GCC;WU600,650,XZU650 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37650 |
WU600,650..GEN |
1 | ||
| 82683-37660 |
WU600,650..GEN OWNER'S MANUAL-FRENCH |
1 | ||
| 82683-37680 |
WU600,650..GEN OWNER'S MANUAL-SPANISH |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37080 |
WU600,650 |
1 | ||
| 82641-37070 |
XZU600..GCC;WU600,650,XZU650 POWER WINDOW-WITH |
1 | ||
| 82641-37081 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37130 |
WU600,650 |
1 | ||
| 82730-37131 |
WU600,650 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-37260 |
WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37040 |
WU600,650 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37080 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37101 |
WU600,650 |
1 | ||
| 89539-37140 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 1 OF 8(1107- )WU600,650
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180B - DETECTOR ASSY, REVOLUTION | ||||
| S8319-01482 |
WU600,650 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0210 |
WU600,650 |
1 | ||
| 83530-E0260 |
WU600,650 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| S8343-01840 |
WU600,650 |
1 | ||
| Common parts | ||||
| SH552-10816 | ||||
| SN741-00213 | ||||
| SZ430-10005 | ||||
ILLUST NO. 3 OF 8(1107- )WU600,650
RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78110 |
N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650 |
1 | ||
| 28300-78080 |
W04D..WU600,650 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78110 |
N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650 |
1 | ||
| 28300-78080 |
W04D..WU600,650 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XZU600..GCC;N04C,W04D..WU600,650,XZU650 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
W04D..WU600,650..GEN GLOW PLUG-WITH |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 82627-37020 |
WU600,650 60A,TERMINAL:FEMALE |
1 | ||
| 90982-08282 |
XZU600..GCC;WU600,650,XZU650 50A,TERM.:FEMALE,RED,MARK 32V |
1 | ||
| 90982-08274 |
XZU600..GCC;WU600,650,XZU650 120A,TERM.:MALE,WHT |
1 | ||
| 82627-37030 |
XZU600..GCC;WU600,650,XZU650 20A,TERMINAL:FEMALE |
1 | ||
| 90982-08301 |
XZU600..GCC;WU600,650,XZU650 50A-30A-40A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
XZU600..GCC;WU600,650,XZU650 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
XZU600..GCC;WU600,650,XZU650 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
XZU600..GCC;WU600,650,XZU650 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
XZU600..GCC;WU600,650,XZU650 30A,MINI FUSE,GRN |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37070 |
WU600,650 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37510 |
WU600,650..GEN |
1 | ||
| 82662-37512 |
WU600,650..GEN |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37130 |
WU600,650 |
1 | ||
| 82663-37131 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37050 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-37030 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37240 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-37041 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82823-37040 |
WU600,650,XZU600,650 |
1 | ||
| 82823-37030 |
WU600,650 |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-37041 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 82823-37040 |
WU600,650,XZU600,650 |
1 | ||
| 82823-37030 |
WU600,650 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 85900-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
WU600,650..GEN AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 90987-02017 |
WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02017 |
WU600,650..GEN AIR CONDITIONER-WITH(MANUAL) |
1 | ||
| 90987-02017 |
WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3 AIR CONDITIONER-WITH(MANUAL) POLLEN FILTER |
1 | ||
| Common parts | ||||
| 82715-37V80 | ||||
| 82715-37Y30 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SZ182-06003 | ||||
ILLUST NO. 2 OF 8(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

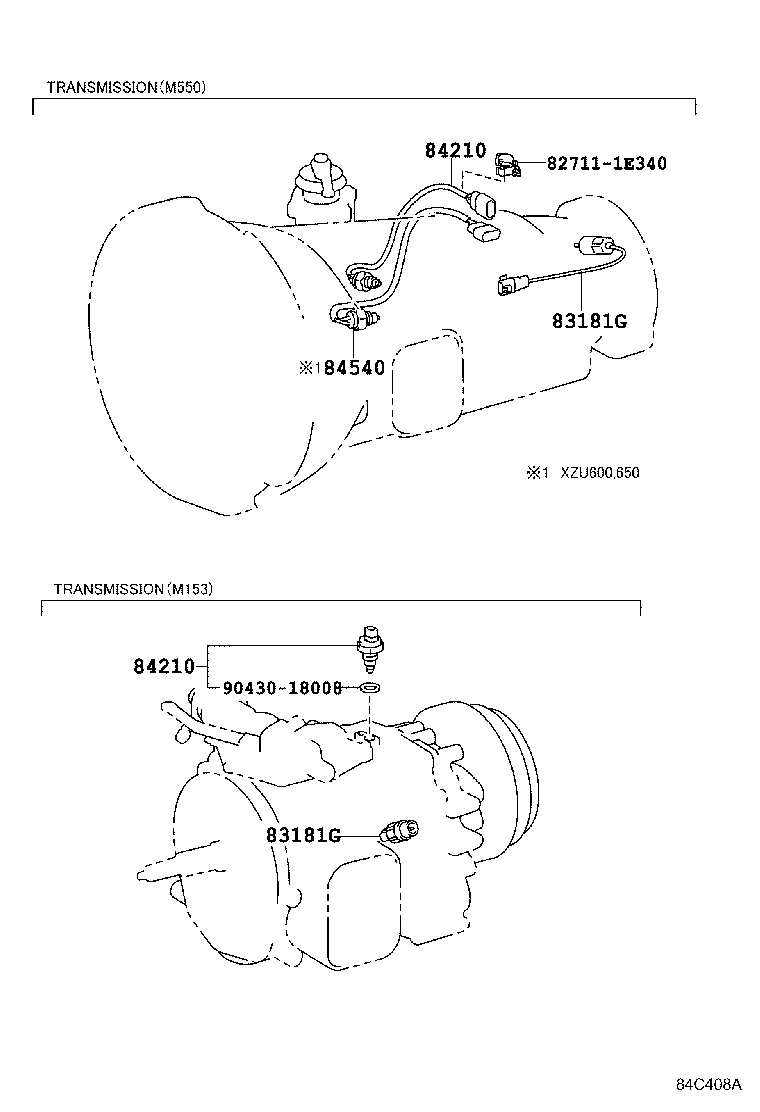

TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-37120 |
WU600..DCRTJ;WU600..ST..GEN..IV3 |
1 | ||
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-37120 |
WU600..DCRTJ;WU600..ST..GEN..IV3 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
WU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
WU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 90430-18008 | ||||
ILLUST NO. 8 OF 8(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650 ; (1911- )XZU600..GEN

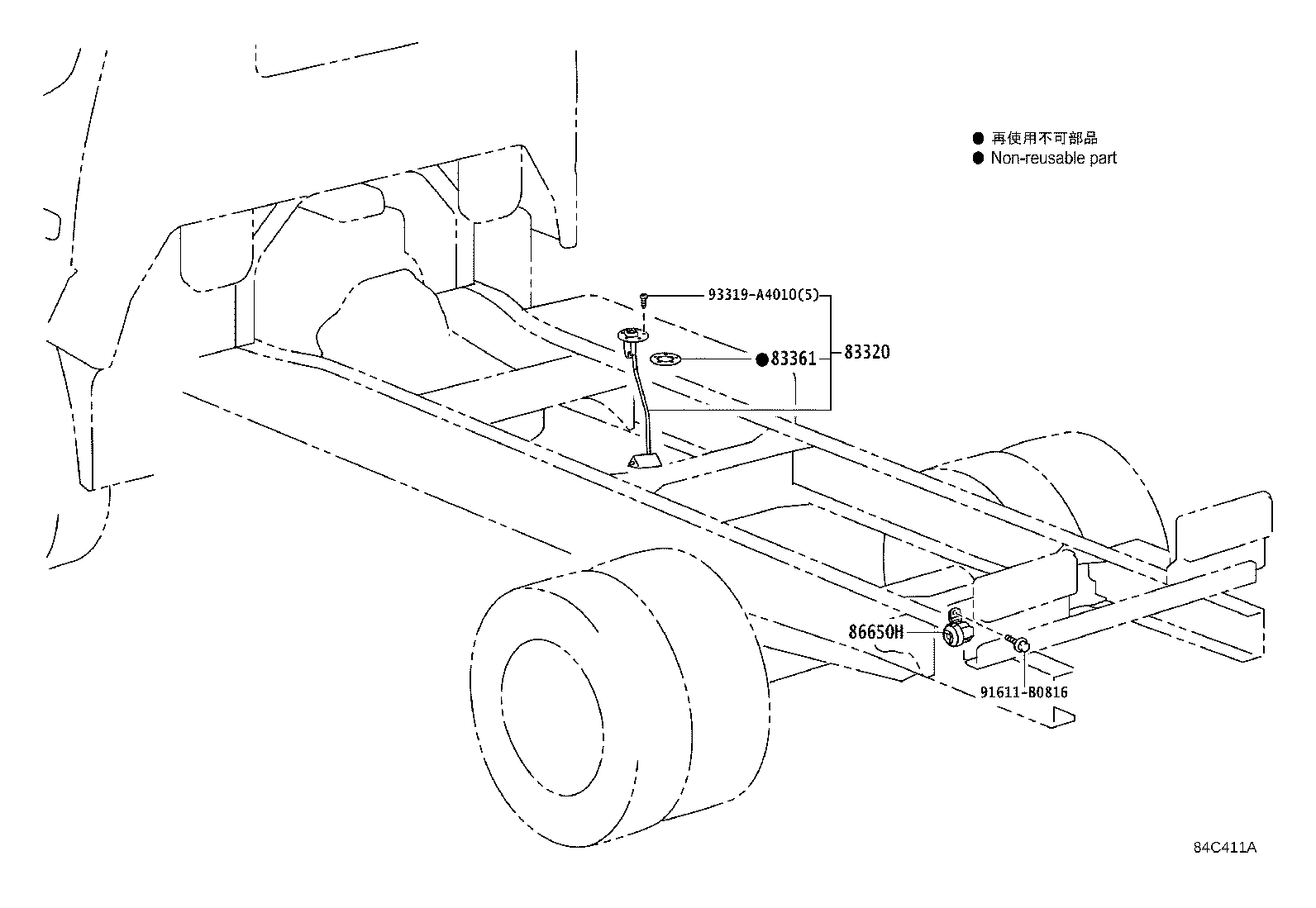

REAR BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37050 |
WU600,650..GEN..IV3 CKD PACKAGE |
1 | ||
| 86650-37050 |
WU600,650..GEN..IV3 SKD PACKAGE |
1 | ||
| 86650-37180 |
WU600,650,XZU600,650 |
1 | ||
| 86650-37050 |
WU600,650,XZU600,650 |
1 | ||
| 86650-37181 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
