WU600L-TKMLK3 (2011)

Toyota Dyna

Production Jul 2011 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

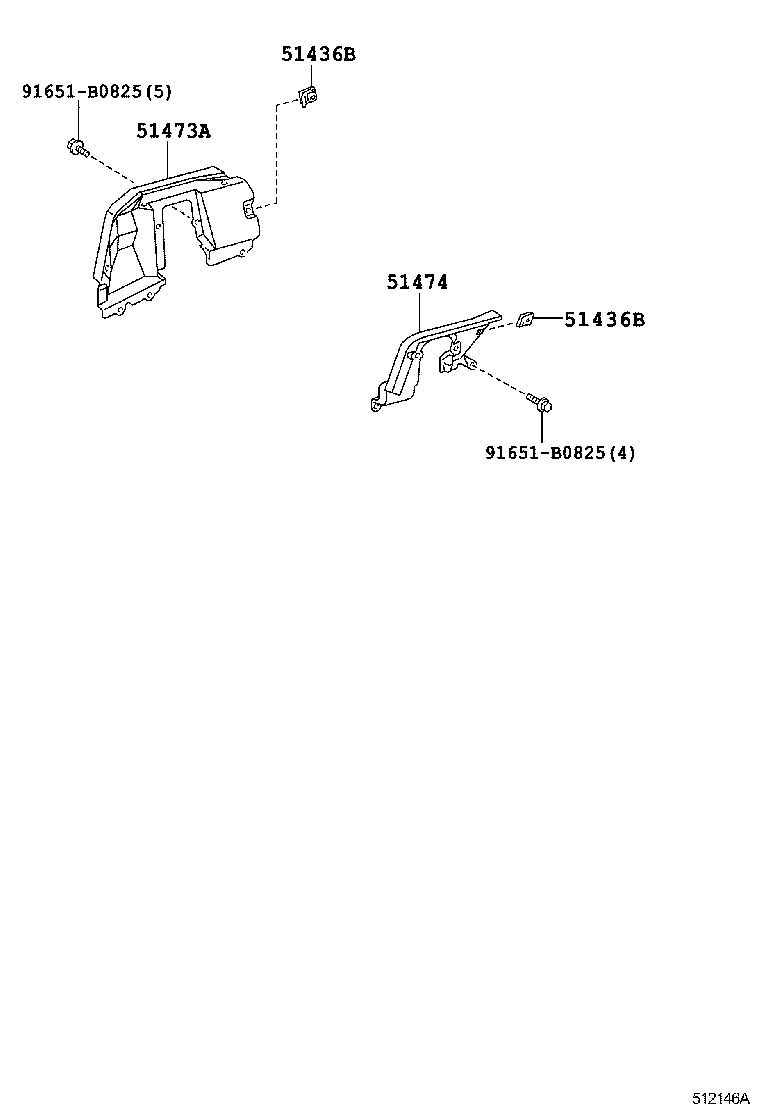

ILLUST NO. 1 OF 2(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

Click highlighted areas on diagram

diagram 51436B 51436B 51473A 51474 91651B0825 91651B0825
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU600..GCC;WU600,650,XZU650

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU600..GCC;WU600,650,XZU650

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37310

XZU600..GCC;WU600,650,XZU650

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37131

XZU600..GCC;WU600,650,XZU650

 1
Common parts
91651-B0825

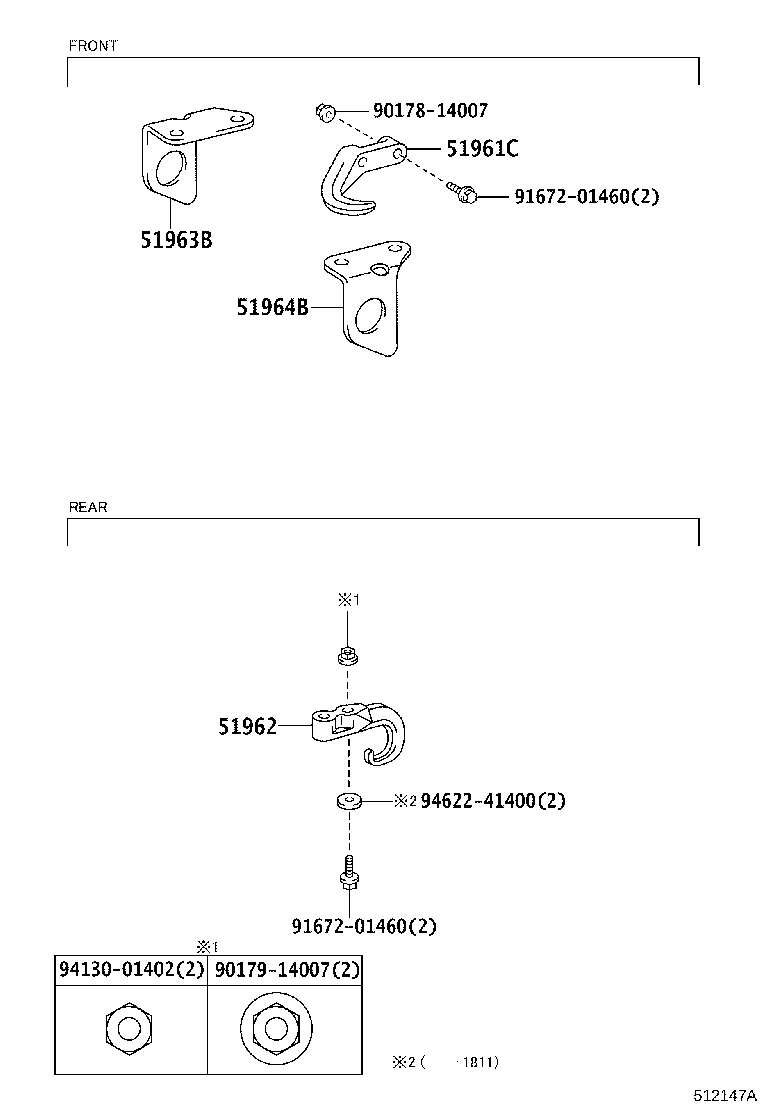

ILLUST NO. 2 OF 2(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

Click highlighted areas on diagram

diagram 51961C 51962 51963B 51964B 9017814007 9017914007 9167201460 9167201460 9413001402 9462241400
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37110

XZU600..GCC;WU600,650,XZU650

 1
51962 - HOOK, NO.2
51961-36040

XZU600..GCC;WU600,650,XZU650

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

WU600,650..CBU;WU600,650..GEN..IV3;WU600..ST..GCC..IV3

 1
Common parts
90178-14007
90179-14007
91672-01460
94130-01402
94622-41400
