WU600L-TKMLJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

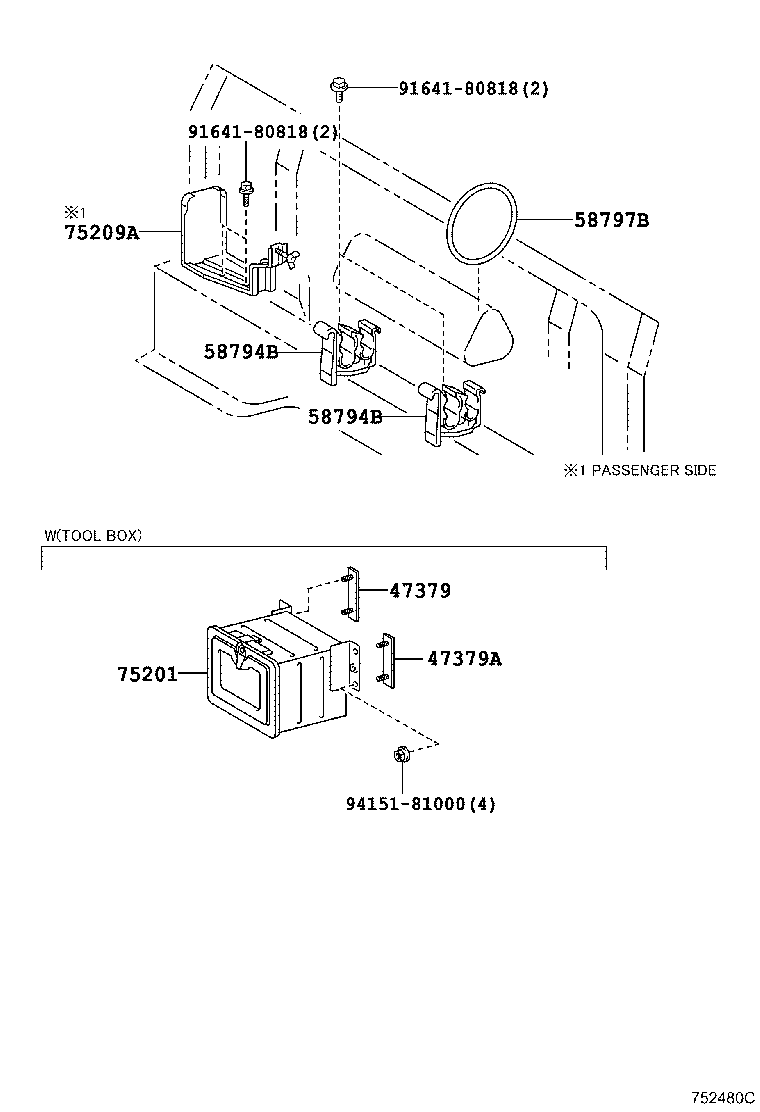

ILLUST NO. 1 OF 2(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

Click highlighted areas on diagram

JACK HOLDER, TOOL BOX

diagram 47379 47379A 58794B 58794B 58797B 75201 75209A 9164180818 9164180818 9415181000
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

XZU600..GCC;WU600,650,XZU650

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

XZU600..GCC;WU600,650,XZU650

 2
58797B - BAND, JACK CLAMP
58797-37030

XZU600..GCC;WU600,650,XZU650

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-37011

XZU600..GCC;WU600,650,XZU650

 1
Common parts
91641-80818
94151-81000

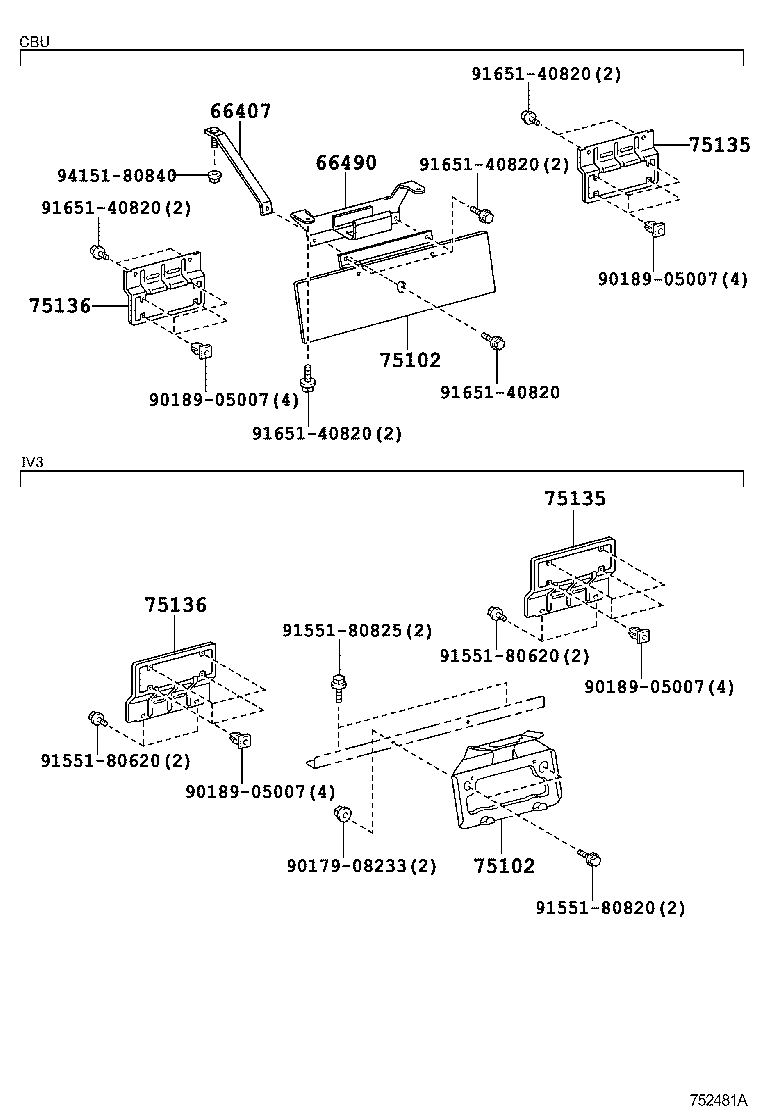

ILLUST NO. 2 OF 2(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

Click highlighted areas on diagram

LICENSE PLATE BRACKET

diagram 66407 66490 75102 75102 75135 75135 75136 75136 9017908233 9018905007 9018905007 9018905007 9018905007 9155180620 9155180620 9155180820 9155180825 9165140820 9165140820 9165140820 9165140820 9165140820 9415180840
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37050

XZU600..GCC;WU600,650,XZU650..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37050

XZU600..GCC;WU600,650,XZU650..IV3

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070

WU600,650

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070

WU600,650

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37070

WU600,650

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37070

WU600,650

 1
Common parts
90179-08233
90189-05007
91551-80620
91551-80820
91551-80825
91651-40820
94151-80840
