WU600L-TKMLJV3 (2011)
Toyota Dyna
ILLUST NO. 1 OF 2(1107- )
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71620-37030 |
WU600,650 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37D30B0 |
WU600,650..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71072-37D30B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71072-37D40B0 |
WU600,650..GCC GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37C30B0 |
WU600,650..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71074-37C30B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71074-37C40B0 |
WU600,650..GCC GRAY,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12053 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37L10B0 |
WU600,650 ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71420-37L20B0 |
WU600,650 ***,GRAY,TRIM1# |
1 | ||
| 71420-37L10B0 |
WU600,650 ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71420-37L11B0 |
WU600,650..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71420-37L11B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71420-37L21B0 |
WU600,650..GCC ***,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37D30B0 |
WU600,650..GCC ***,GRAY,TRIM1# |
1 | ||
| 71440-37D20B0 |
WU600,650..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71440-37D20B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-37120 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-25070 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37020 |
WU600,650 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-37010 |
WU600,650 |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-37031B1 |
WU600,650 GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-37030 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-37030B0 |
WU600,650 GRAY,TRIM1# |
1 | ||
| 72138-37010B1 |
WU600,650 GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-37030 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-37030B1 |
XZU600..GCC;WU600,650,XZU650 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(1107- )
PASSENGER SIDE,SEAT BACK=BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70012C - SPRING(FOR SEAT BACK) | ||||
| 71491-37010 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71491-89101 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71491-37010 |
XZU600..GCC;WU600,650,XZU650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37A40B0 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A40B0 |
WU600,650 SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A51B0 |
WU600,650..GCC GRAY,TRIM1# |
1 | ||
| 71071-37A41B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A41B0 |
WU600,650..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A50B0 |
WU600,650 GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37B60B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71073-37B40B0 |
WU600,650..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71073-37B50B0 |
WU600,650..GCC GRAY,TRIM1# |
1 | ||
| 71073-37B70B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37C01B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71410-37C10B0 |
WU600,650 ***,GRAY,TRIM1# |
1 | ||
| 71410-37C00B0 |
WU600,650 ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71410-37C01B0 |
WU600,650..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71410-37C11B0 |
WU600,650..GCC ***,GRAY,TRIM1# |
1 | ||
| 71410-37C00B0 |
WU600,650 ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37B60B0 |
WU600,650..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71430-37B90B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71430-37B80B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71430-37B70B0 |
WU600,650..GCC ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-37050 |
WU600,650 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71552-25090 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71552-37100 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71552-37100 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71551-37230 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-37130 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71013-37130 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71630-37120 |
WU600,650 |
1 | ||
| 71013-25040 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 72641A - PIN, FRONT SEAT BACK LOCK | ||||
| 72641-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| Common parts | ||||
| 90119-08C25 | ||||
| 90179-08039 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(1107- )
PASSENGER SIDE,SEAT BACK=SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70012C - SPRING(FOR SEAT BACK) | ||||
| 71491-37010 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71491-89101 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71491-37010 |
XZU600..GCC;WU600,650,XZU650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37650B0 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71095-37640B0 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71095-37651B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71095-37641B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37A40B0 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A40B0 |
WU600,650 SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A51B0 |
WU600,650..GCC GRAY,TRIM1# |
1 | ||
| 71071-37A41B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A41B0 |
WU600,650..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71071-37A50B0 |
WU600,650 GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37B60B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71073-37B40B0 |
WU600,650..GCC SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71073-37B50B0 |
WU600,650..GCC GRAY,TRIM1# |
1 | ||
| 71073-37B70B0 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-37030 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71305-37030 |
XZU600..GCC;WU600,650,XZU650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-37820B0 |
WU600,650 ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71350-37821B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71350-37810B0 |
WU600,650 ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71350-37811B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-25031 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71365-25030 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71365-37070 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71365-25030 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71365-37070 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37C01B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71410-37C10B0 |
WU600,650 ***,GRAY,TRIM1# |
1 | ||
| 71410-37C00B0 |
WU600,650 ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71410-37C01B0 |
WU600,650..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71410-37C11B0 |
WU600,650..GCC ***,GRAY,TRIM1# |
1 | ||
| 71410-37C00B0 |
WU600,650 ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37B60B0 |
WU600,650..GCC ***,SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71430-37B90B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 71430-37B80B0 |
WU600,650..GCC ***,FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 71430-37B70B0 |
WU600,650..GCC ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-37050 |
WU600,650 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71552-25090 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71552-37100 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71552-37100 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71551-37230 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-37130 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 71013-37130 |
WU600,650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71630-37120 |
WU600,650 |
1 | ||
| 71013-25040 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
XZU600..GCC;WU600,650,XZU650 |
2 | ||
| 72593B - KNOB, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72594-37020B2 |
XZU600..GCC;WU600,650,XZU650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1# |
1 | ||
| 72594-37020B2 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72640-37020 |
WU600,650..GCC FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 72640-37020 |
XZU600..GCC;WU600,650,XZU650 FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE) |
1 | ||
| 72641A - PIN, FRONT SEAT BACK LOCK | ||||
| 72641-37010 |
XZU600..GCC;WU600,650,XZU650 |
1 | ||
| Common parts | ||||
| 90105-08298 | ||||
| 90119-08C25 | ||||
| 90167-40044 | ||||
| 90179-08039 | ||||
| 90468-18008 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 7152 | ||||
(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

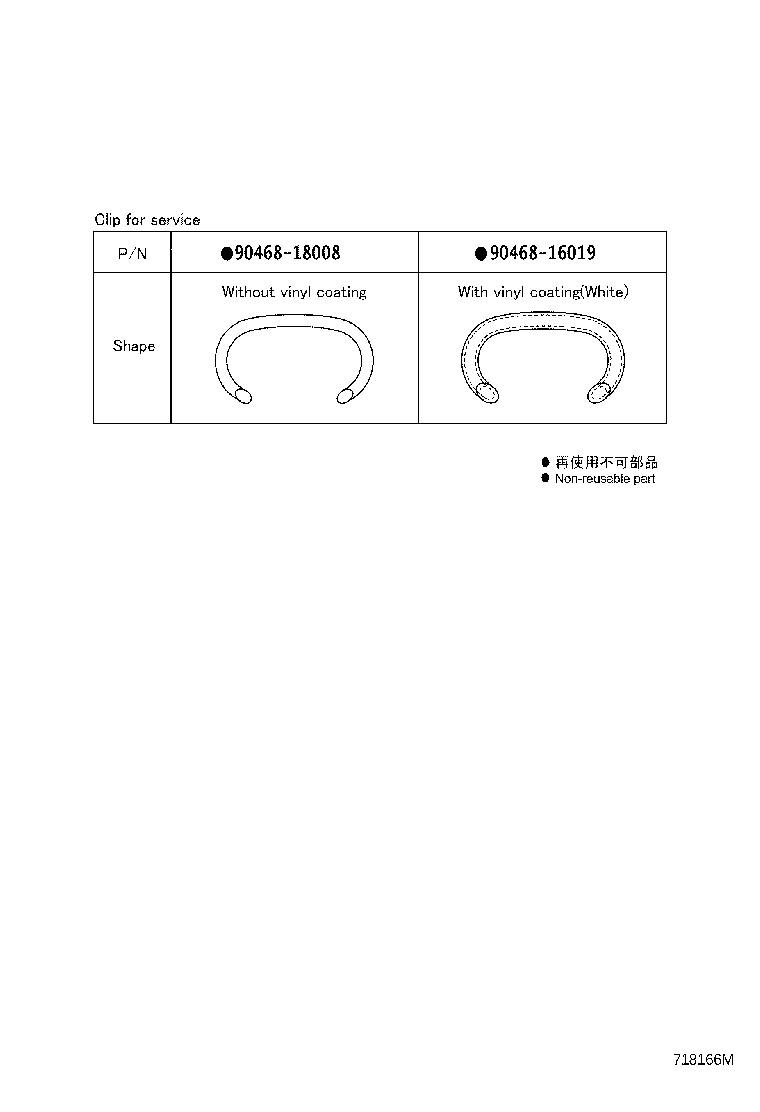

CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
