WU600L-TKMLJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XZU600..GCC ; (1107- )WU600,650,XZU650

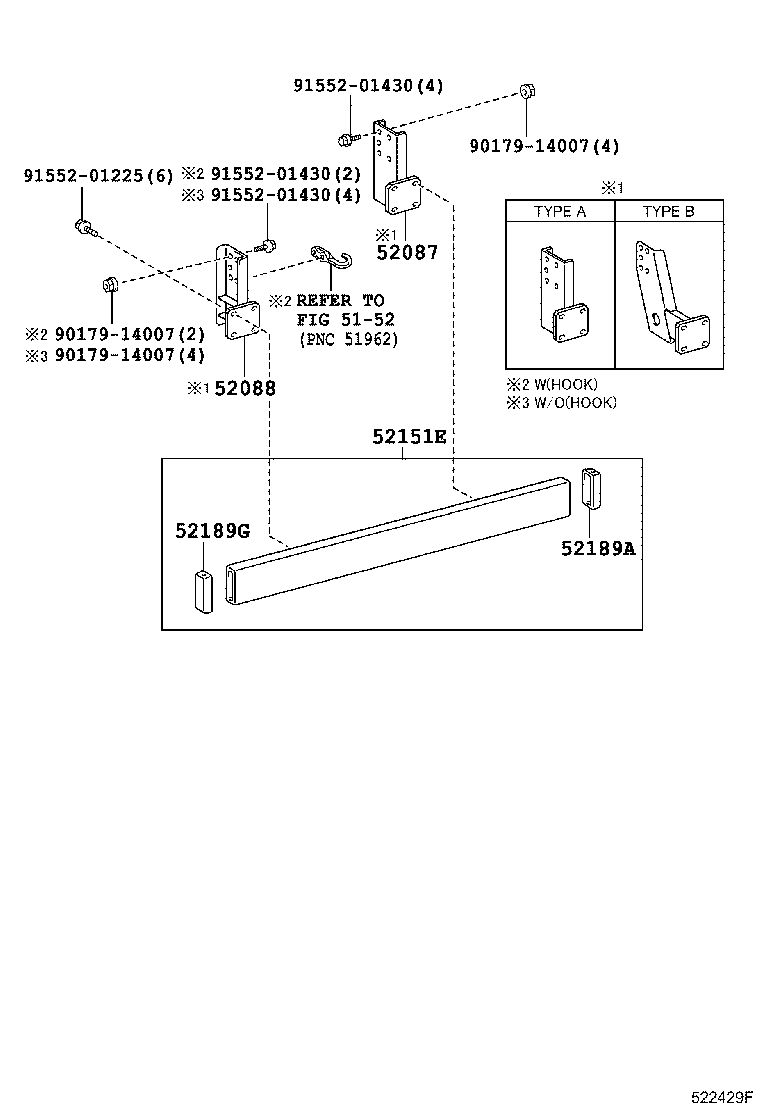

Click highlighted areas on diagram

diagram 5152 52087 52088 52151E 52189A 52189G 9017914007 9017914007 9017914007 9155201225 9155201430 9155201430 9155201430
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52151-37210

WU600..ST..GCC;WU650,XZU650..GCC

TYPE A:REFER ILLUST.

 1
52151-37210

WU600..ST..GCC;WU650,XZU650..GCC

REAR BUMPER-WITHOUT,TYPE A:REFER ILLUST.

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37090

WU600..ST..GCC;WU650,XZU650..GCC

REAR BUMPER-WITHOUT,TYPE A:REFER ILLUST.

 1
52152-37090

WU600..ST..GCC;WU650,XZU650..GCC

TYPE A:REFER ILLUST.

 1
52151E - BAR, REAR BUMPER
52105-37250

WU600..ST..GCC

NO PAINT REQ.

 1
52105-37250

WU600..ST..GCC

REAR BUMPER-WITHOUT

 1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37060

WU600,650,XZU600,650..GCC

REAR BUMPER-WITHOUT

 1
52189-37060

WU600,650,XZU600,650..GCC

 1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37060

WU600,650,XZU600,650..GCC

 1
52189-37060

WU600,650,XZU600,650..GCC

REAR BUMPER-WITHOUT

 1
Common parts
90179-14007
91552-01225
91552-01430
Linked diagrams
5152
