WU600L-TKMLJV3 (2011)

Toyota Dyna

Production Jul 2011 - May 2015
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

RIVET

diagram 9512101024 9512101026 9512101028 9512101032 9512101036 9512101038
Part # Description Qty Price
Common parts
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

diagram 51100F 51401 51402 51705A 9155281240 91552F1240 9415181200
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-3VW00

WU600..ST

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37050

WU600..ST

TYPE A:REFER ILLUST.

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37110

WU600..ST

TYPE A:REFER ILLUST.

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37750

WU600,650

 1
Common parts
91552-81240
91552-F1240
94151-81200

ILLUST NO. 2 OF 3(1107- )ST

Click highlighted areas on diagram

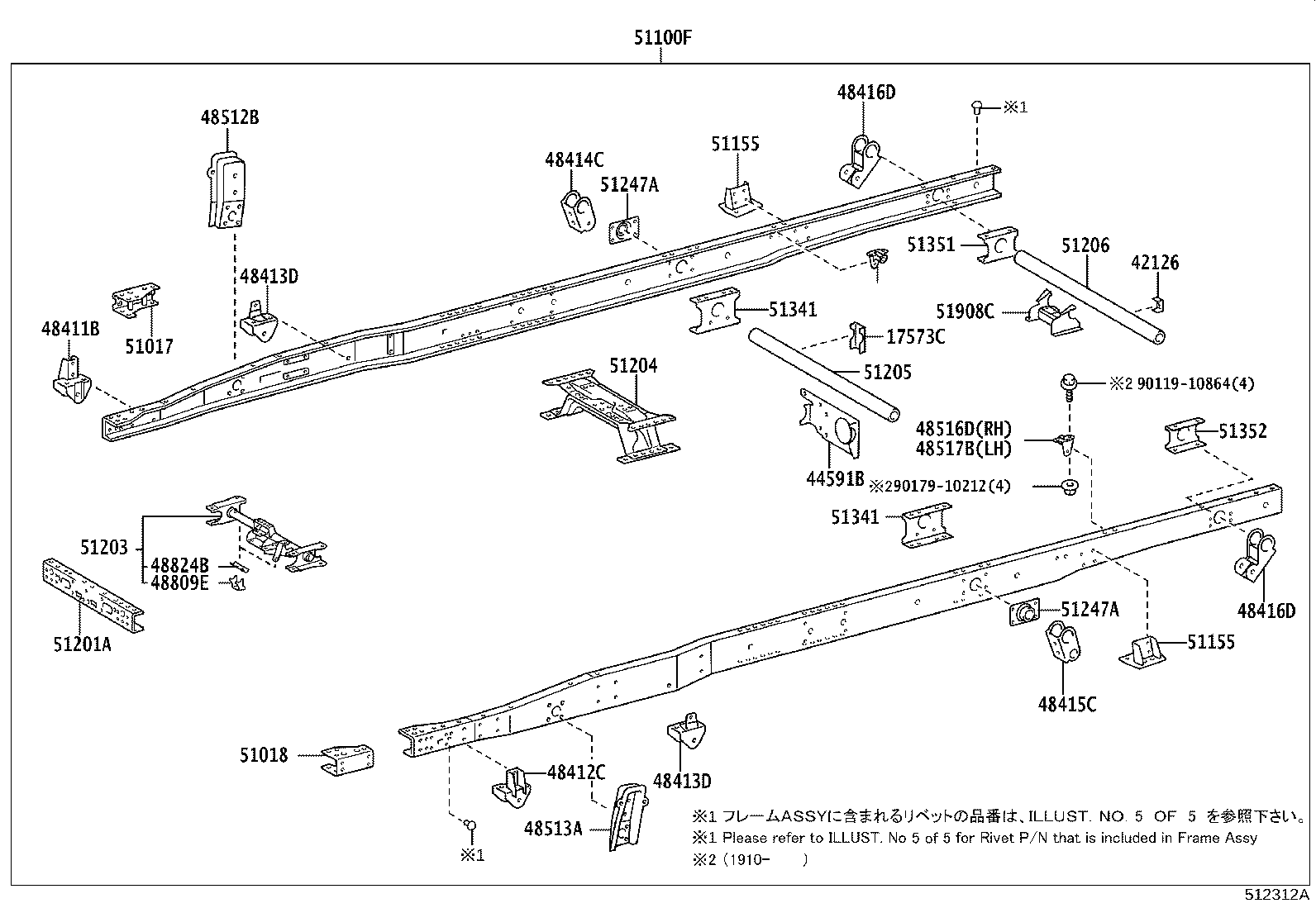

diagram 17573C 42126 44591B 48411B 48412C 48413D 48413D 48414C 48415C 48416D 48416D 48512B 48513A 48516D 48517B 48809E 48824B 51017 51018 51100F 51155 51155 51201A 51203 51204 51205 51206 51247A 51247A 51341 51341 51351 51352 51908C 9011910864 9017910212
Part # Description Qty Price
17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78020

W04D..WU600..ST

 1
42126 - ATTACHMENT, BRAKE 3 WAY
42126-37020

WU600..ST

 2
44591B - BRACKET, BRAKE ACTUATOR
44591-37030

WU600..ST

 1
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZU600..GCC;WU600,650,XZU650

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZU600..GCC;WU600,650,XZU650

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU600..GCC;WU600,650,XZU650

 2
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU600..GCC;WU600,650,XZU650

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37120

WU600..ST

 1
48415C - BRACKET, SPRING, NO.3 LH
48415-37030

WU600..ST

 1
48416D - BRACKET, SPRING, NO.4
48416-37090

WU600..ST

 2
48416D - BRACKET, SPRING, NO.4
48416-37090

WU600..ST

 2
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

XZU600..GCC;WU600,650,XZU650

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

XZU600..GCC;WU600,650,XZU650

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48516-37020

WU600..ST

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48516-37020

WU600..ST

 1
48809E - BRACKET SUB-ASSY, STABILIZER
48809-37040

XZU600..GCC;WU600,650,XZU650

 2
48824B - BRACKET, STABILIZER
48824-37230

XZU600..GCC;WU600,650,XZU650

 2
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37211

XZU600..GCC;WU600,650,XZU650

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37170

XZU600..GCC;WU600,650,XZU650

 1
51100F - FRAME SUB-ASSY
51001-3VW00

WU600..ST

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37070

WU600..ST

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37070

WU600..ST

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZU600..GCC;WU600,650,XZU650

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37230

XZU600..GCC;WU600,650,XZU650

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37121

WU600..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-37040

WU600..ST

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51241-37040

WU600..ST

 1
51247A - REINFORCEMENT, FRAME NO.4 CROSSMEMBER
51247-37010

WU600..ST

 2
51247A - REINFORCEMENT, FRAME NO.4 CROSSMEMBER
51247-37010

WU600..ST

 2
51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH
51341-37030

WU600..ST

 2
51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH
51341-37030

WU600..ST

 2
51351 - GUSSET, CROSSMEMBER, NO.5 RH
51351-37060

WU600..ST

 1
51352 - GUSSET, CROSSMEMBER, NO.5 LH
51351-37060

WU600..ST

 1
51908C - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37250

WU600..ST

 1
Common parts
90119-10864
90179-10212
